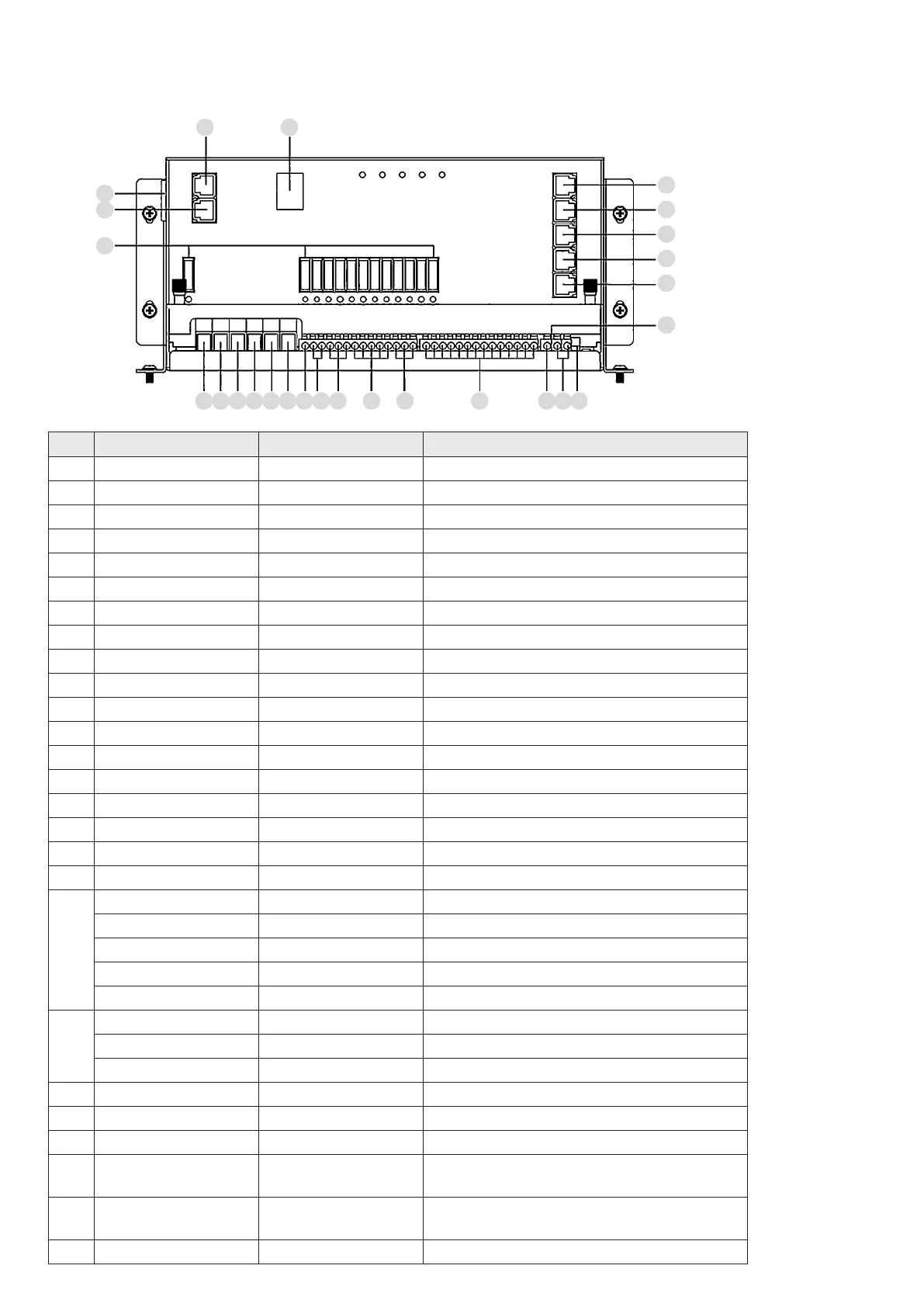

Figure 10 Front panel of PM435
No. LABEL DEFINITION DESCRIPTION
1 Power AC input port
2 Switch panel Comm port Connect to switch panel
3 LCD Display Comm port Connect to Monitor
4 Battery switch Service battery switch Manual battery switch
5 Fresh water tank 1 Connect to fresh water tank 1
6 Fresh water tank 2 Connect to fresh water tank 2
7 Tap water tank Connect to tap water tank
8 Waste water tank Connect to waste water tank
9 Battery sensor For temp compensation Connect to service battery+
10 PV+ Solar input Connect to PV+
11 PV- Connect to PV-
12 Starter Bat+ Starter battery+ Connect to starter battery+ (<20Vdc)
13 Service Bat+ Service battery+ Connect to service battery+ (<20Vdc)
14 Starter Bat- Starter battery- Connect to starter battery-
15 Service Bat- Service battery- Connect to service battery-
16 L1+ Step Connect to load of class D
17 L2+ ~ L3+ Connect to load of class C
18 L4+ ~ L6+ Connect to load of class B
19
L7+ Switch B Connect to Switch B+
L8+ Switch A Connect to Switch A+
L9+ Outside light Connect to Outside light+
L10+ TV Connect to TV+
L11+ Water pump Connect to Water pump+
20
L12+ Dining light Connect to Dining light+
L13+ Bedroom light Connect to Bedroom light+
L114+ Ceiling light Connect to Ceiling light+
21 L1- ~ L14- Connect to DC load -
22 D+ Point D+ input Connect to D+
23 Remote Switch Terminal block Connect to remote switch
24 Select Switch Dip switch Select local switch or remote switch (Notice: open the
upper cover board to operate)
25 Setting Dip switch Set the battery type and capacity (Notice: open the upper
cover board to operate)
26 Fuse Fuses with indicator for blown
3. STRUCTURE AND INSTALLATION
3.1 PM435 Power Management System
Table 5 Connection
of PM435
1
3 4
5
6
7
8
9
25
2
26
10 11 12 13 1415 16 17 18 19 20 21 222324
