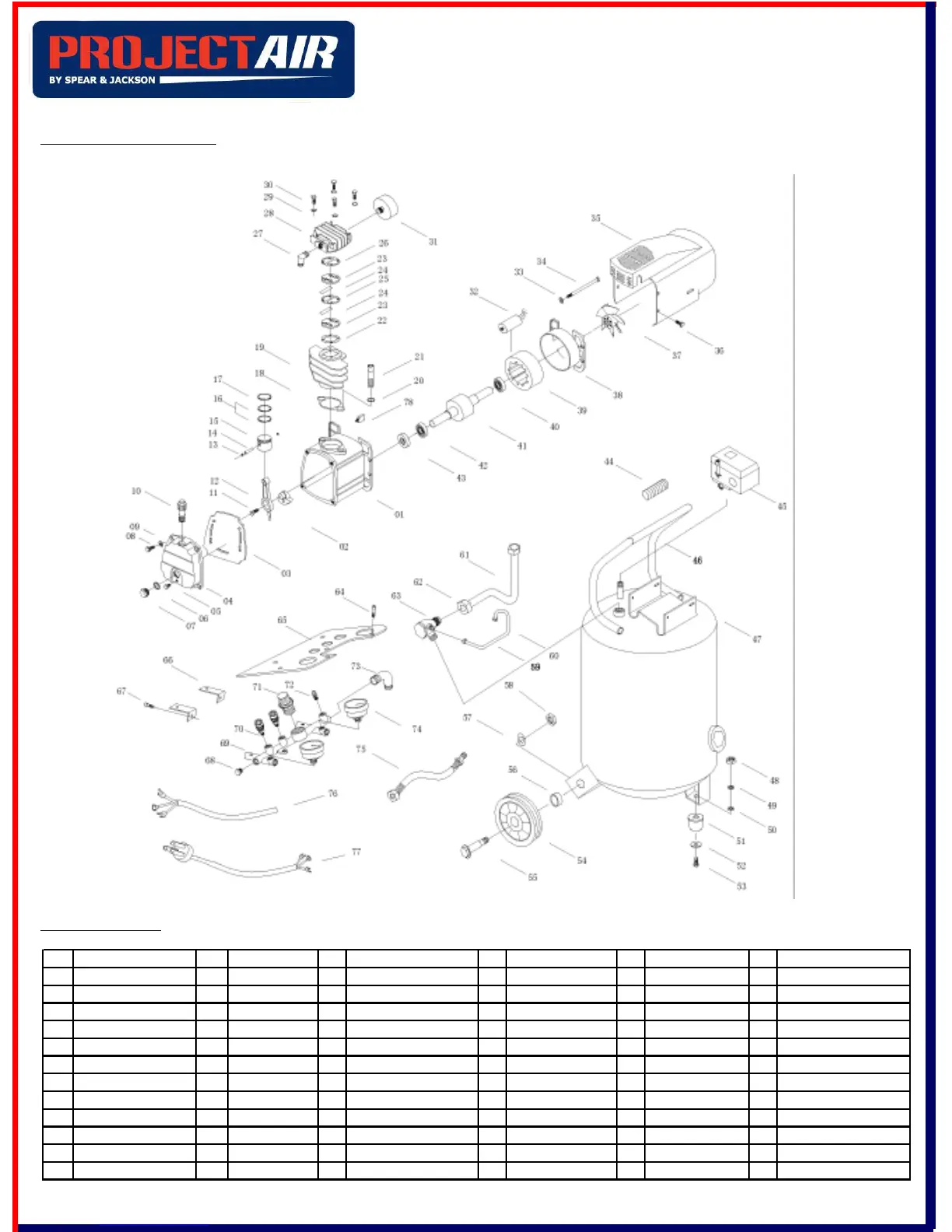

Exploded Diagram
10
Parts Listing
1 Crankcase 14 Piston pin 27 elbow exhaust 40 bearing 53 bolt 66 mounting bracket
2 Crank shaft 15 Piston 28 cylinder head 41 totator 54 wheel 67 bolt
3 Gasket 16 Piston ring 29 spring 42 bearing 55 bolt 68 bolt
4 Crank case cover 17 Piston ring 30 bolt 43 oil bearing 56 ferrule 69 support
5 Bolt 18 Gasket 31 ail filter 44 handle 57 washer 70 air cock
6 Gasket 19 cylinder 32 capacitance 45 hand 58 nut 71 regulator
7 Oil glass 20 Spring 33 spring 46 pressure switch 59 unloading pipe 72 safety valle
8 Bolt 21 bolt 34 bolt 47 tank 60 unloading nut 73 elbow exhaust
9 Spring 22 gasket 35 cover 48 nut 61 exhaust pipe 74 pressure gauge
10 Breath 23 valve 36 bolt 49 spring 62 exhaust nut 75 pipe
11 Bolt 24 valve slice 37 fan 50 washer 63 check valve 76 electrical wire
12 Connecting rod 25 valve gasket 38 rear bearing crank 51 cushion foot 64 bolt 77 plug
13 Circlip 26 gasket 39 stator 52 washer 65 pannel 78 overload protector
