- 21 -

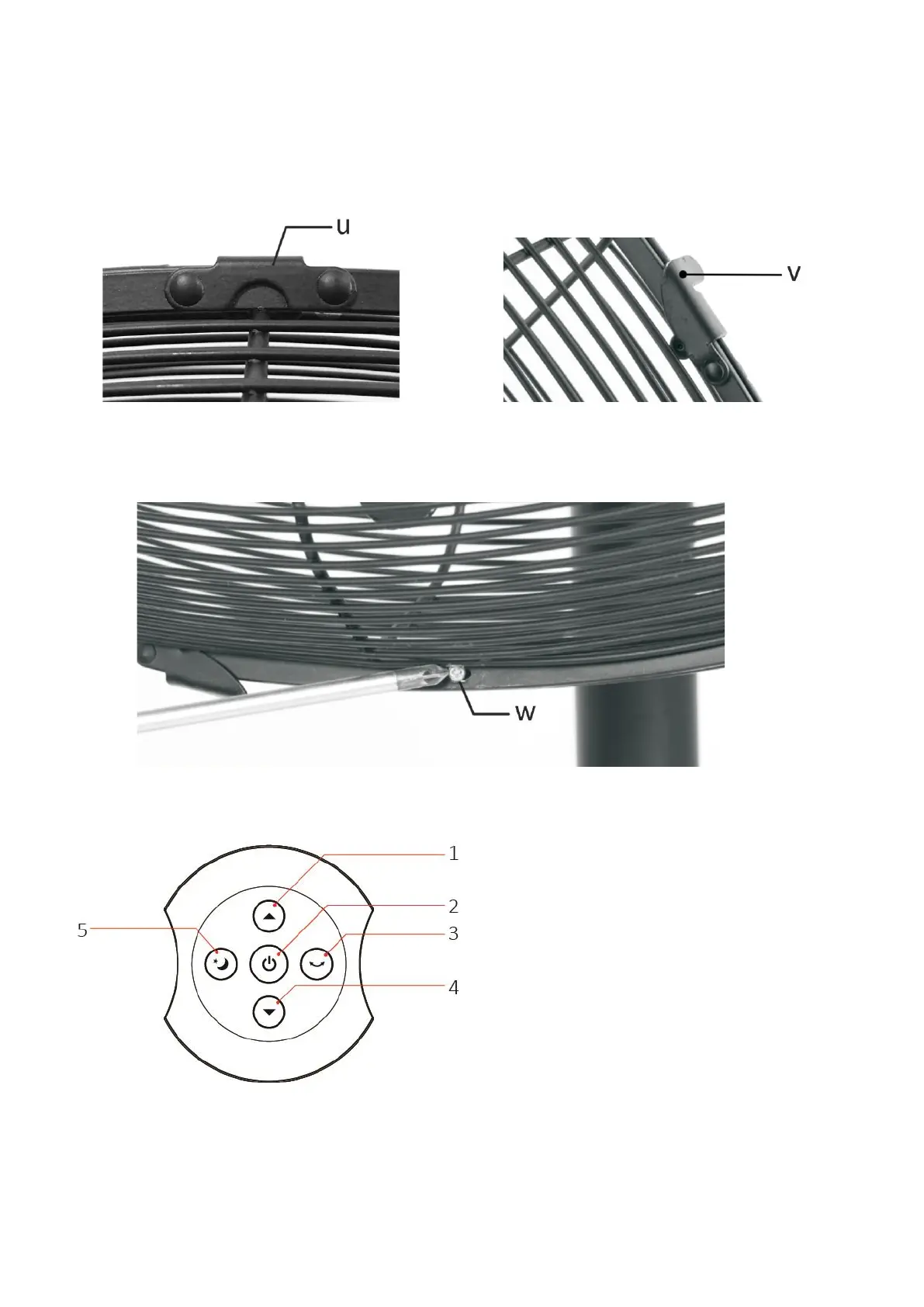

Front grille assembly
1. Put the hook (u) of the front grille on the top of the rear grille. (fig.15)
2. Attach the front grille to the rear grille and then close the guard clips (v). (fig.16)
3. Secure the front and rear grilles by fastening the fixing screw with nut (w). (fig.17)
fig.15 fig.16
fig.17
REMOTE CONTROL
1. Speed increment button
2. On/off button
3. Swing button
4. Speed decrement button
5. Sleep mode button
