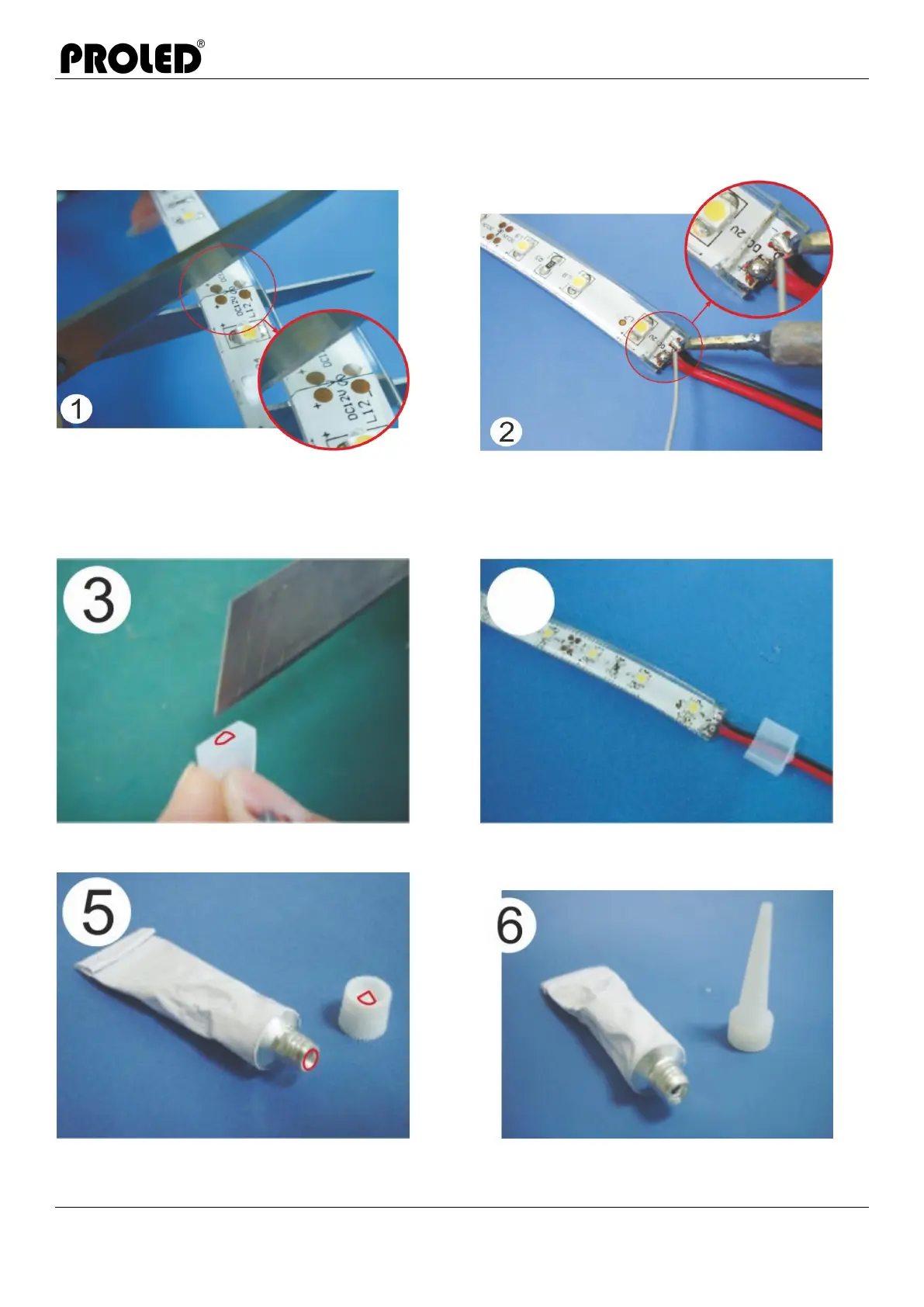

8. Soldering of cables at IP67 Flex Strips
If you have to solder a connection to a Flex Strip IP67, please work according to following steps. Please be advised,
that correctly sealed end caps have only a IP65 classification.
Cut the Flex Strip on marked cutting line. Remove the silicone from the soldering pads.
Solder the cable correctly . Please take care about
correct polarity.
Cut a hole for power cable into the end cap. Move the end cap over the cable.
Pierce the tube outlet with the cap of the sealing Screw the outlet funnel on the tube.
glue, for example PROLED L6396.
