PROLiNK IPS Series User Manual

8 9

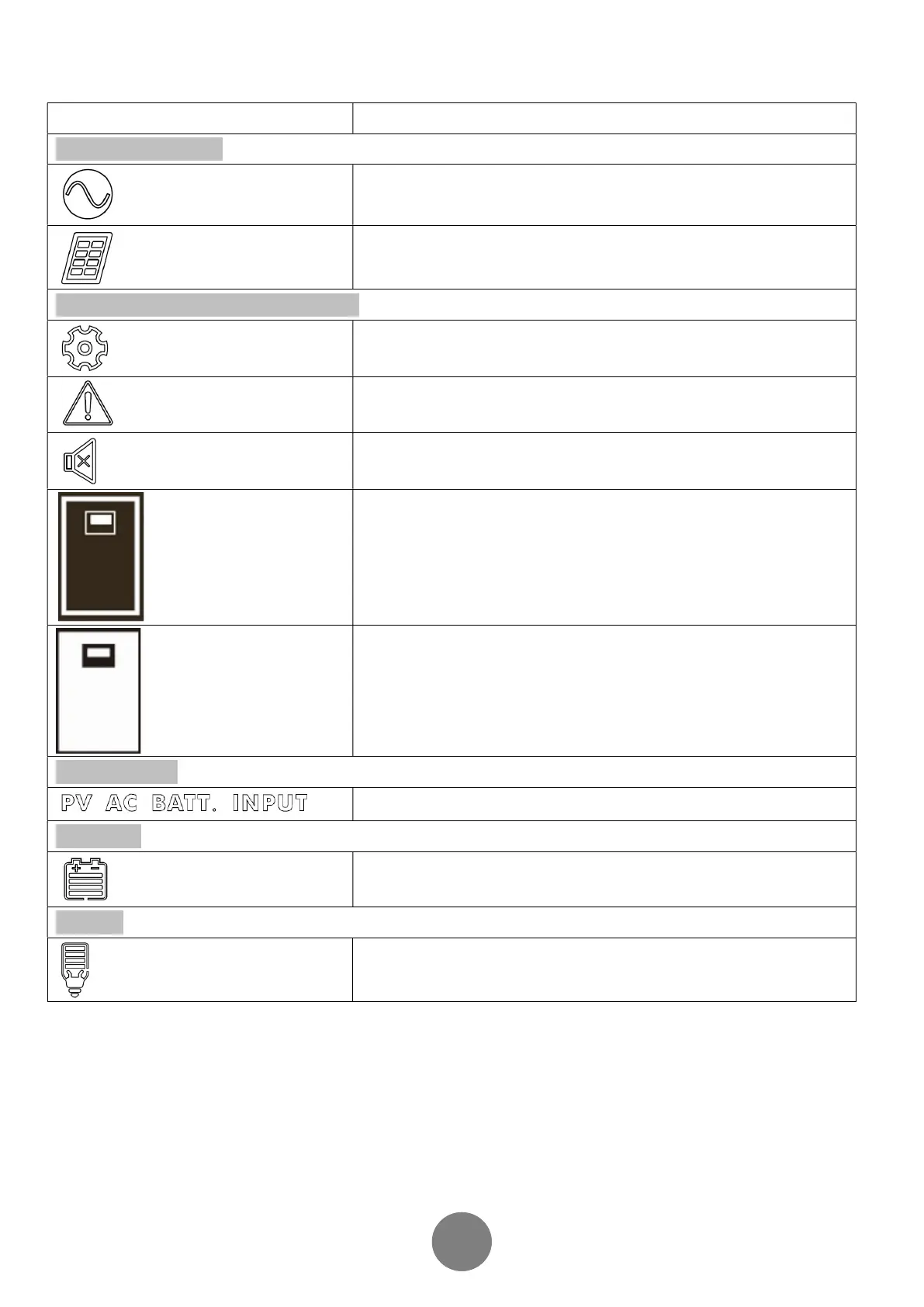

Icon Function
Input source information
Indicates utility power
Indicates the PV power
Configuration Program and Fault Information
Indicates the setting programs
Indicates the warning and fault codes
Indicates mute
Indicates standby mode
Indicates power on mode
Other Information
Indicates input, output, PV and battery information
Battery Level
Indicates battery level in battery mode and charging status.
Load level
Indicates the load level.
LCD Setting
When the power switch is turned on, pressing and holding “ENTER” button immediately for 3 seconds, the unit will into
the setting mode. Press “UP” or “DOWN” button to select setting programs. And then, press “ENTER” button to
confirm the selection or “ESC” button to exit. The unit will exit setting mode if no operating for 30s.

PROLiNK IPS Series Specifications

General

Model	IPS Series
Category	Inverter
Input Voltage	12V / 24V / 48V DC
Output Waveform	Pure Sine Wave
Output Frequency	50Hz / 60Hz
Protection Features	Overload, Over Temperature, Short Circuit
Cooling	Fan
Operating Temperature	0°C to 40°C
