PROLiNK PRC2402M Quick Start Guide

PRC2402M - Setting up for Singtel Internet and IPTV with ONT Connection
Notes:
- All physical connection is assumed to be connected properly and working.

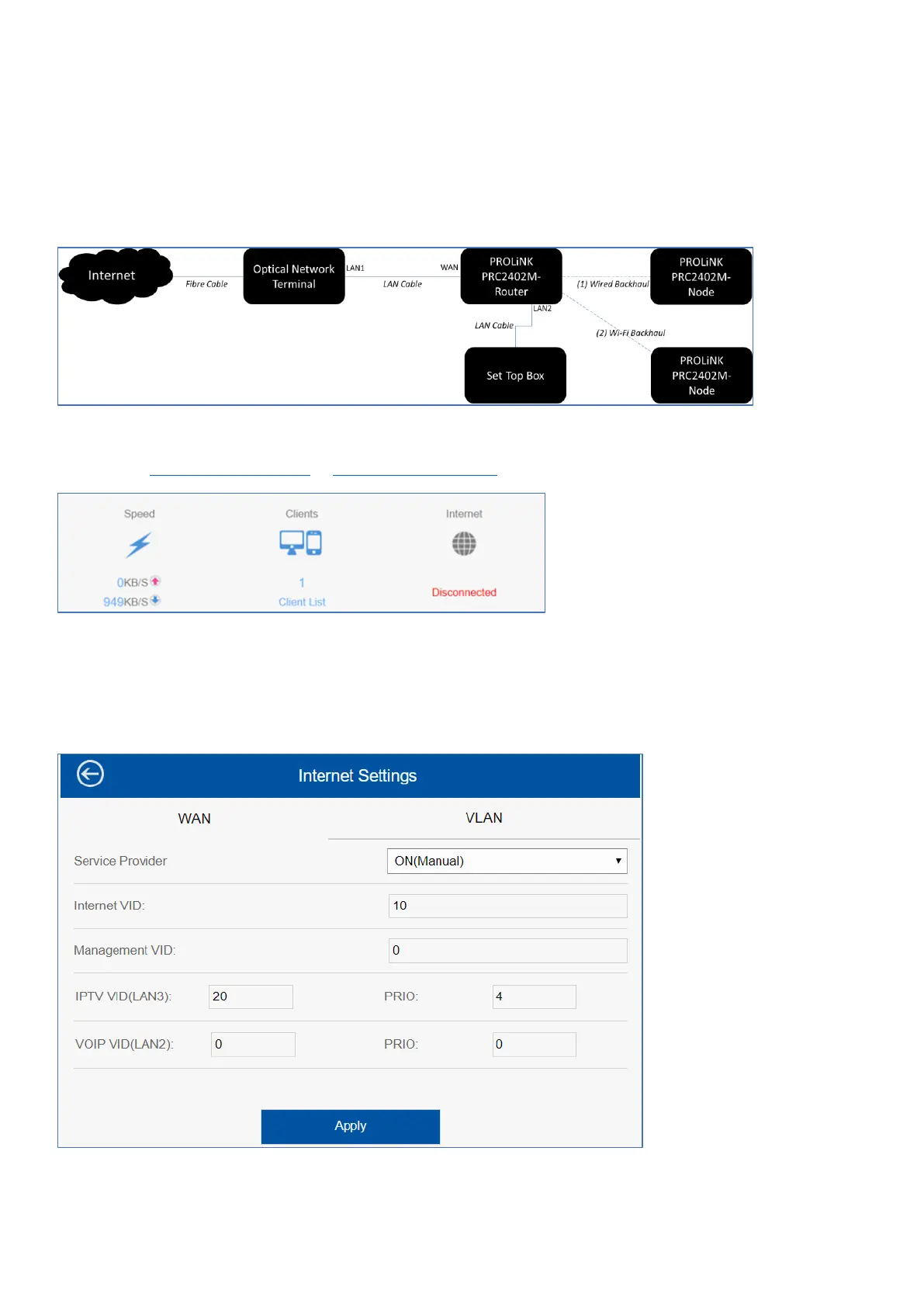

- Below diagram depicts correct physical connectivity setting
- The Set Top Box is to be connected at Mesh Router’s LAN3.
- Currently, no support for Set Top Box at node.
Step 1. Connect the PRC2402M Router’s WAN port to Optical Network Terminal’s LAN 1
Step 2. Go to http://prc2402m.setup or http://192.168.123.254 and Go through the Setup Wizard
Step 3. Click Setup
Step 4. Click Internet Settings
Step 5. Click VLAN
Step 6. Set the same as per below screenshot and press Apply button to proceed
Step 7. Connect the Mesh Router’s LAN3 to Set Top Box’ LAN port and power On the Set Top Box
Step 8. Power On the other mesh node.
