7

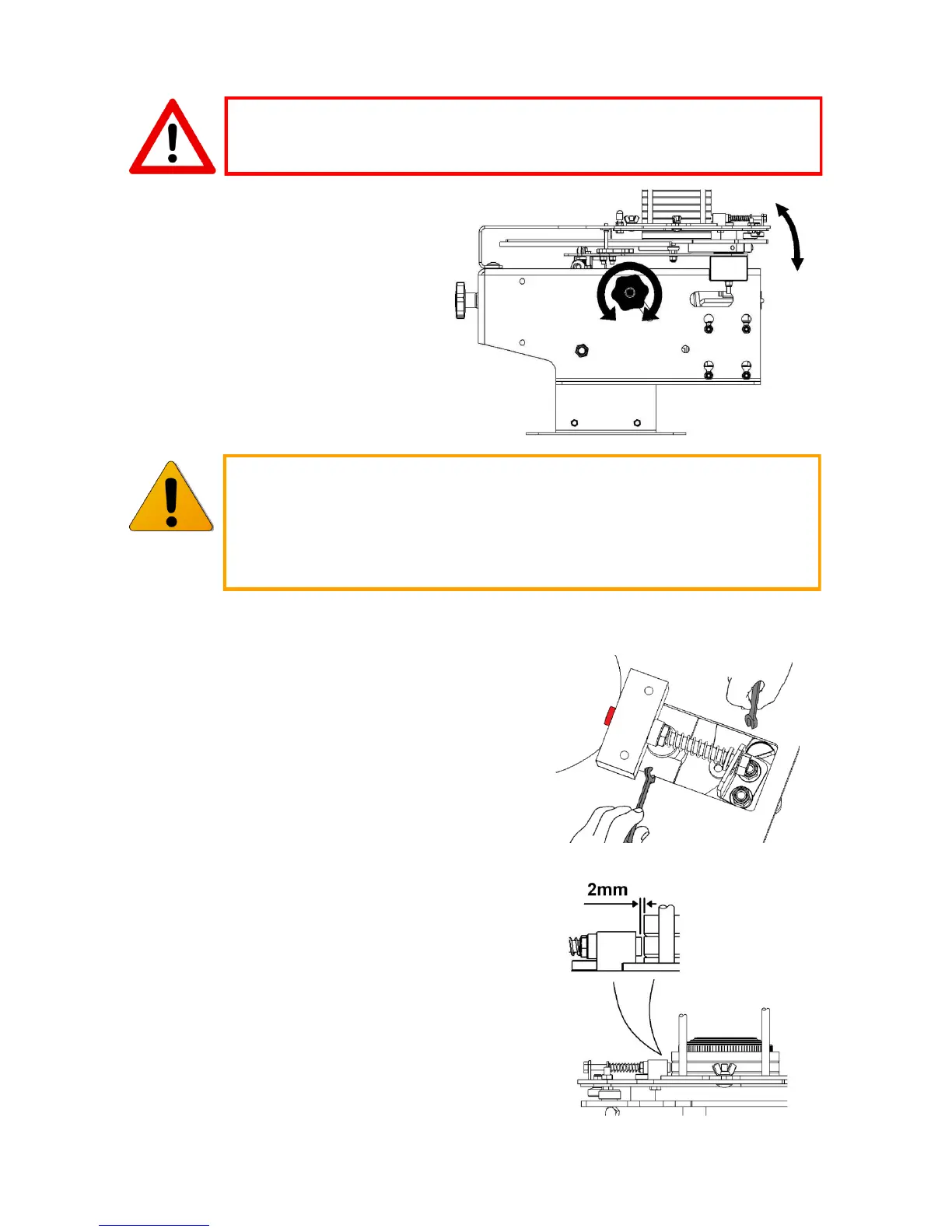

Adjustment: Plunger Mechanism
As the arm rotates, the plunger presses gently
on the outer rim of the remaining clay stack to
hold it as the boom clay is released from the
iris plates. With the trap at rest and the clays
pushed towards the two rear hopper rods there
should be a visible gap between the second clay
up in the stack and the red polyurethane plung-
er p.
The plunger gap should be around 2mm (1/16")
and can be adjusted if required using two 10mm
spanners/wrenches. Holding the half nut
(located against the back of the brass plunger)
adjust the rear locking nut clockwise to increase
the gap or an-clockwise to decrease it.
Adjustment: Elevaon
Seng Elevaon angle
Trajectory of clays are from
approximately 26 - 50 degrees.
Loosen handwheel nut as shown,
lt to desired angle, re-ghten
handwheel .
ALWAYS disarm the machine before carrying out loading, adjustment or
maintenance.
Be aware that if machine is already lted upwards, when the hand-
wheel is subsequently undone the machine will jolt forward. Support
the weight of the machine from the top of the clay hopper when ad-
jusng the elevaon angle.
