Step 4: Making Management and Data Connections
21
This completes management and data connections for VTrak E610f and E310f.
Go to “Step 5: Setting Up Serial Cable Connections” on page 27.
Serial Attached SCSI
VTrak models can have one or two RAID controllers. Each controller has an
Ethernet (RJ45) Management Port connector that enables you to monitor the
VTrak over your network using the WebPAM PROe Software. VTrak supports
HTTP, HTTPS, and Telnet protocols.
The standard VTrak E610s and E310s controllers have five SAS ports:
Data ports (2) – Connects to the Host PC or Server
Data/Cascade ports (2) – Connects to the data port of a second E610s or
E310s controller or to the Host PC or Server
SAS Expansion port (1) – Connects to a VTrak J610s or J310s JBOD
expansion subsystem
You can configure your VTrak for:
Direct Attached Storage (DAS)
Cascaded Storage (Multiple E610s or E310s subsystems)
JBOD Expansion using a SAS data connection

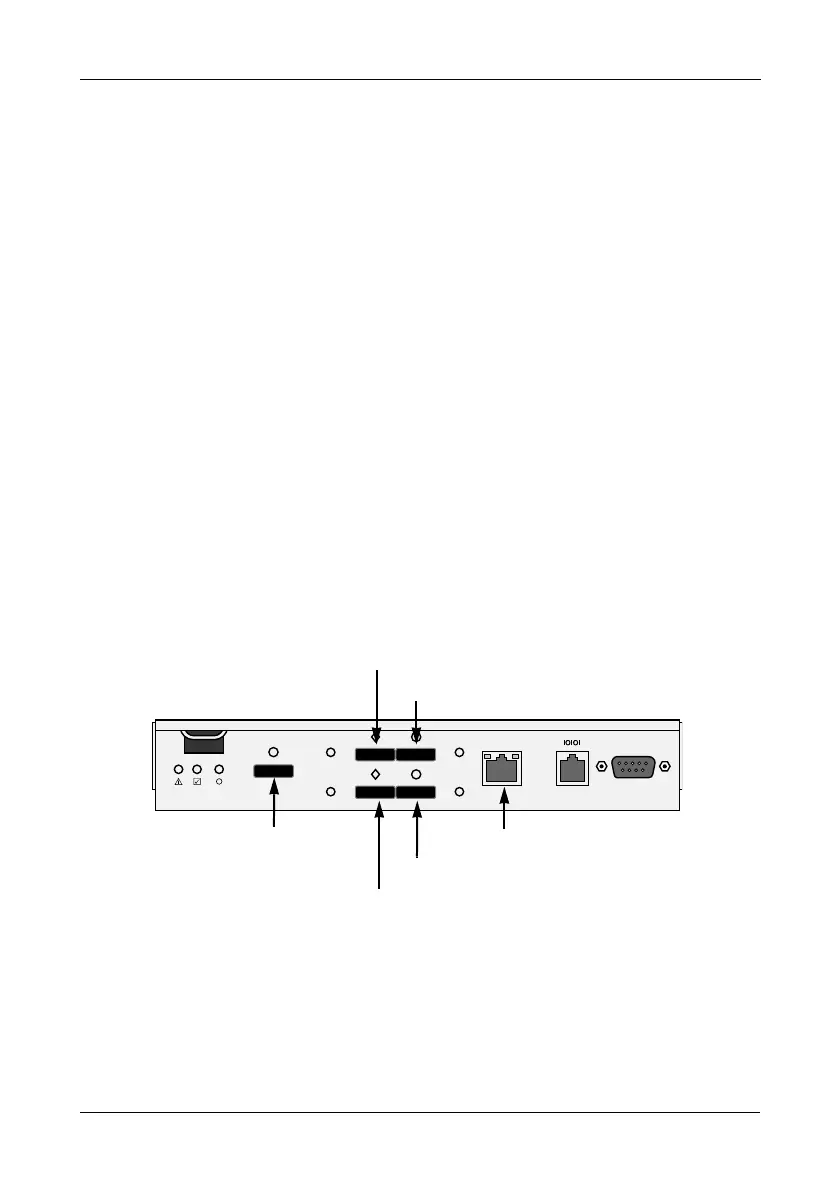

Figure 16. VTrak E610s and E310s controller data and management
connectors
Mgmt
UPS
115200
8 N 1
SAS data port (optional)
SAS data/cascade port (optional)
SAS data/cascade port
SAS data port
SAS expansion
port (to JBOD)
Management port
