VTrak E-Class Quick Start Guide
22
Configuring Direct Attached Storage
Direct attached storage (DAS) requires:
Two SAS HBA cards in the Host PC or Server
A network switch
A network interface card (NIC) in the Host PC or Server
To establish the data path:
On the VTrak controller, connect a SAS data port or a SAS data/cascade port to
one of your SAS HBA cards. See Figure 17.
To establish the management path:
1. Connect the Management port on each Controller to your network switch.
See Figure 17.
2. Connect the Host PC’s or Server’s standard NIC to your network switch.

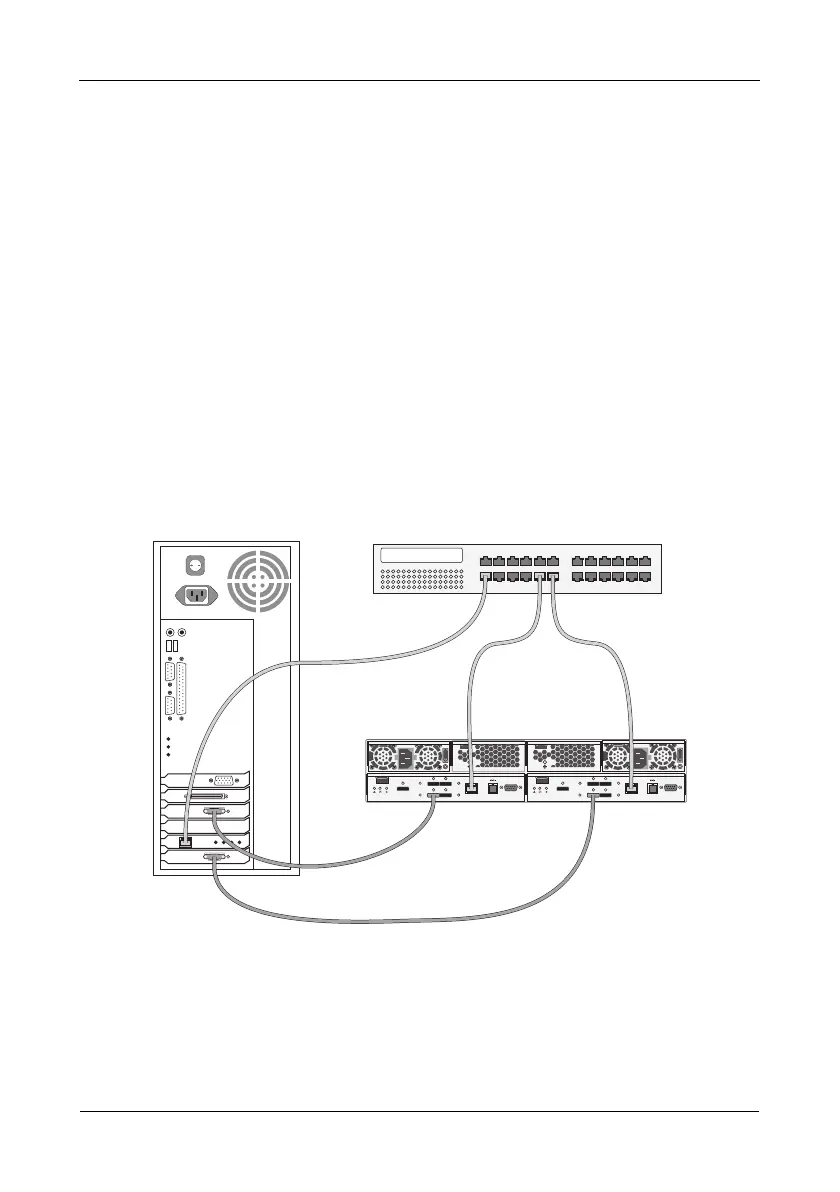

Figure 17. DAS data and management connections. The E310s is shown.
The E610s is similar
Mgmt
UPS
115200
8 N 1
Mgmt
UPS
115200
8 N 1
O
I
O
I
Host PC or Server
VTrak
Network Switch
