Step 4: Making Management and Data Connections
23
Configuring Cascaded Storage
Cascaded storage requires:
• One SAS HBA card in the Host PC or Server
• A network switch
• A network interface card (NIC) in the Host PC or Server
To establish the data path:
1. Connect a SAS data port or a SAS data/cascade port on the VTrak controller
to your SAS HBA card. See Figure 18.
2. Connect the remaining port of the first VTrak to the next VTrak.
Be sure to connect circle icon to diamond icon or vice versa.
3. Connect the remaining VTrak controllers in the same manner.
You can cascade up to eight VTrak subsystems.
Be sure to connect circle icon to diamond icon or vice versa.
To establish the management path:
1. On the VTrak controller, connect the Management Port on each Controller to
your network switch. See Figure 19.
2. Connect the Host PC’s or Server’s standard NIC to your network switch.

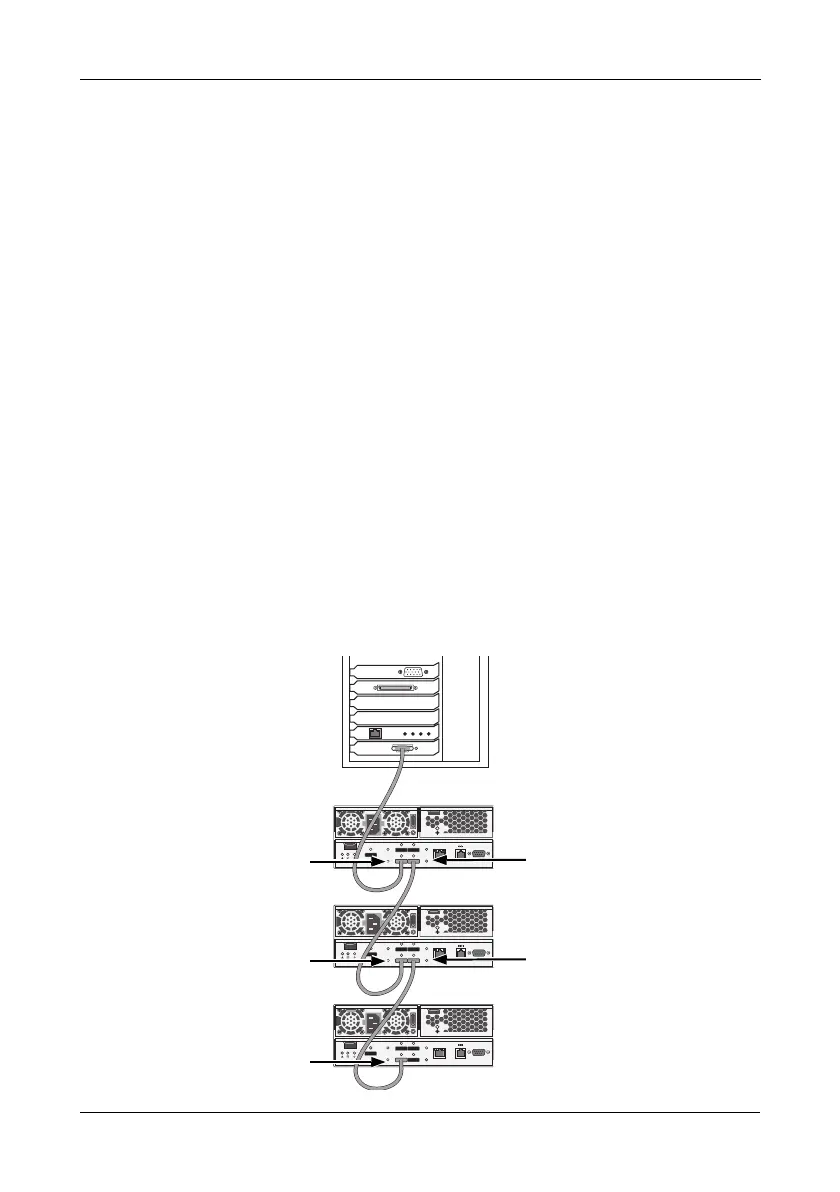

Figure 18. Cascaded data connections. The E310s is shown. The E610s is
similar
Mgmt
UPS
115200
8 N 1
Mgmt
UPS
115200
8 N 1
Mgmt
UPS
115200
8 N 1
O
I
O
I
O
I
SAS data port
E310s
SAS data/
cascade port
E310s
E310s
Host PC or Server
SAS data port
SAS data/
cascade port
SAS data port
