1. GENERAL INFORMATION
1.1. Application
The BM-21S is a bevelling machine designed to bevel materials made of stainless steel.
The machine can bevel plates, as well as pipes with outer diameters of 150–300 mm
(6–12’’), at an angle of 0–60° and with the bevel width of up to 21 mm (13/16’’).
Additionally, the machine contains dampers to reduce vibrations.
When equipped with an optional guide, the machine can bevel pipes with outer
diameters of 300–600 mm (12–24’’).
1.2. Technical data
Voltage
1~ 220–240 V, 50–60 Hz
1~ 110–120 V, 50–60 Hz
Power
1600 W (for 50 Hz)
1800 W (for 60 Hz)
Rotational speed
1360–1630 rpm (at 230 V)
1300–1560 rpm (at 115 V)
Protection level
IP 20
Protection class
I
Milling speed
270 m/min (900 ft/min, for 50 Hz)
320 m/min (1050 ft/min, for 60 Hz)
Maximum bevel width (b)
21 mm (13/16’’, Fig. 1)
Bevel angle (ß)
0–60° (Fig. 1)
Weight
23 kg (51 lbs)

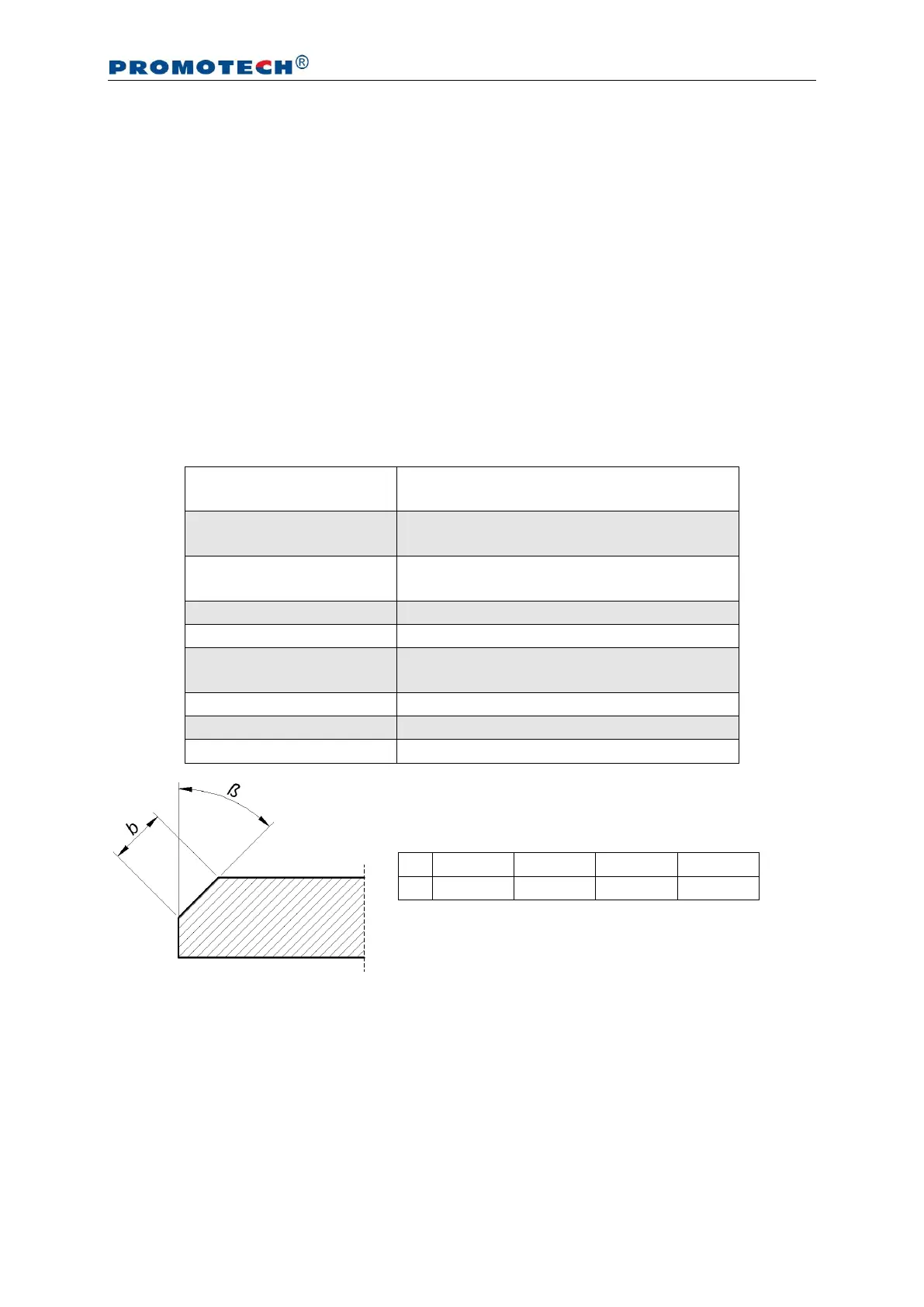

Fig. 1. Bevel dimensions; maximum bevel width depending on the angle
β
0°
30°
45°
60°
b
21 mm
18.5 mm
21 mm
18.5 mm
