ProScan PSB3713-B - Mounting the Sound Bar; Mounting Procedure

MOUNTING

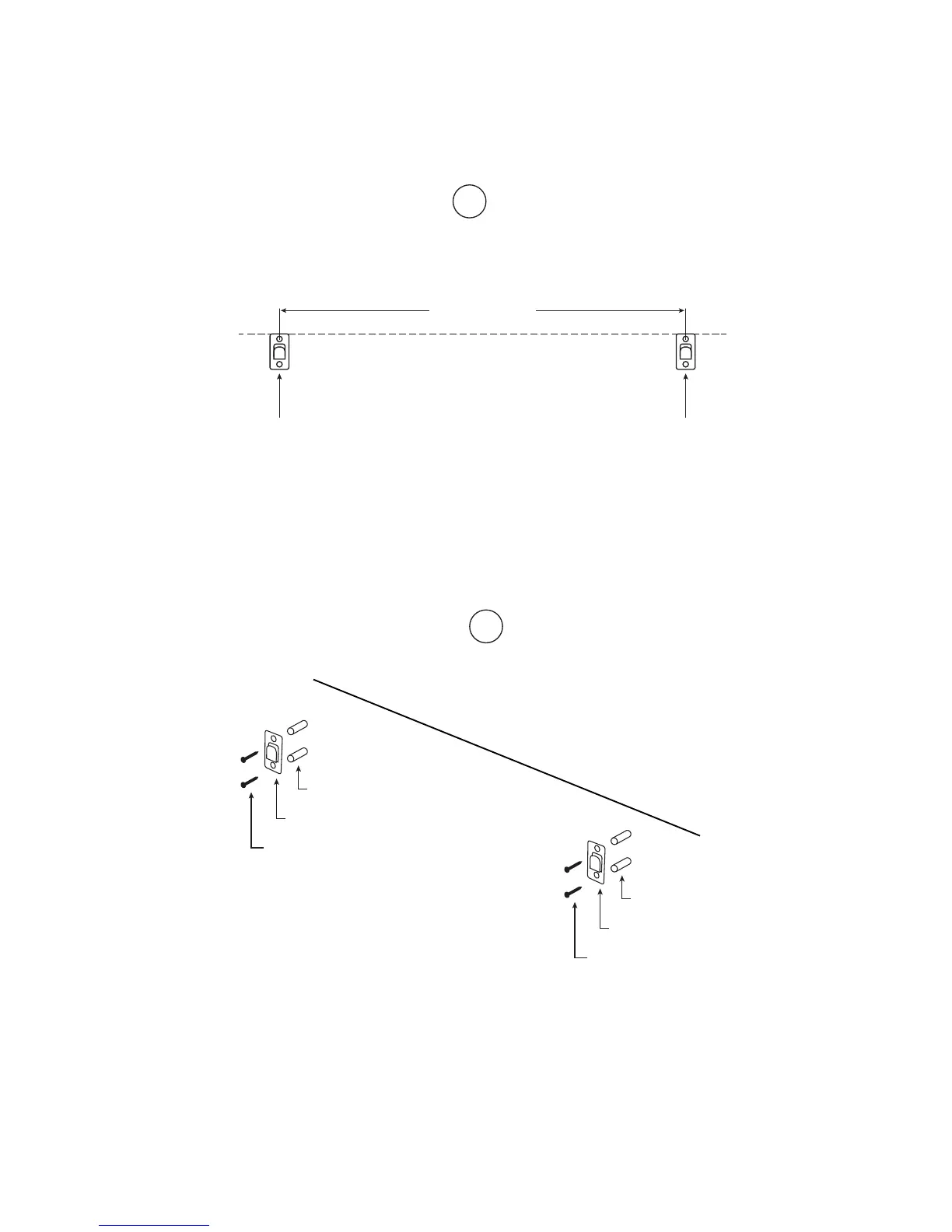

1. Follow the figure 1 above to determine the positions where the screws should be mounted.
Make sure the two brackets are mounted in the same level.
2. Insert the fixing plugs into the screw holes and insert screws to fix the metal bracket onto the
wall.
2
1
734 mm
+/- 3 mm
Metal Bracket Metal Bracket
2
Metal Bracket
Metal Bracket
Fixing Plug
Screw
Wall
Fixing Plug
Screw
