8
4.5
Flow rate or temperature monitoring / analog function
Current output
VMRAEPASP
12
80 100 110-40-20-50
[°C]
[%]
0310210010021-031-
[mA]

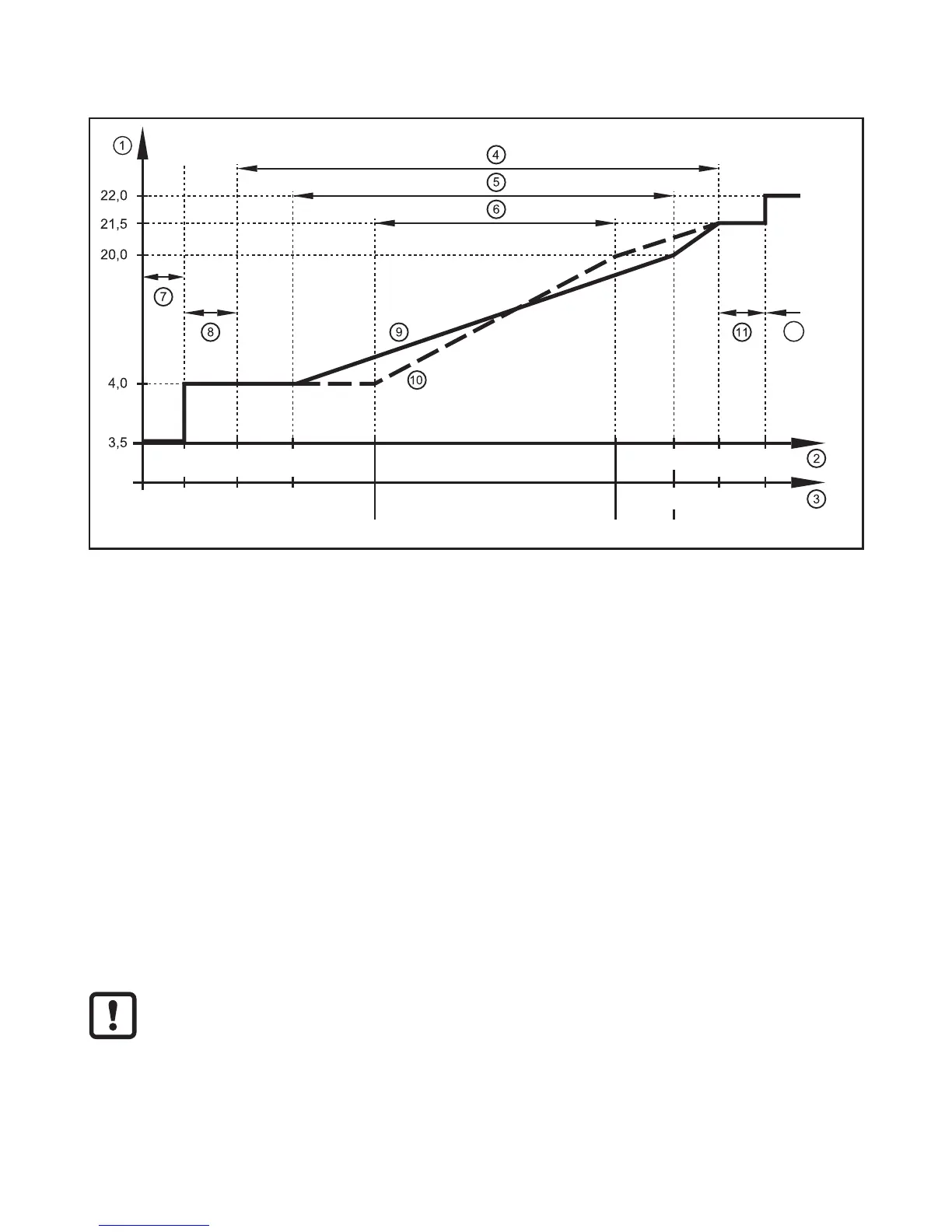

Characteristics of the analog output according to the standard IEC 60947-5-7
1: Output current
2: Flow rate
3: Temperature
4: Display range
5: Measuring range
6: Range between analog start point and analog end point
7: The unit is in the error state (FOU = OFF)
8: The process value transmitted in an analog way is therefore below the display range
9: Curve of the analog signal at factory setting
10: Curve of the analog signal with shifted ASP and AEP
11: The process value transmitted in an analog way is therefore above the display range
12: The unit is in the error state (FOU = ON).
ASP = analog start point: determines at which measured value the output signal is 4 mA.
AEP = analog end point: determines at which measured value the output signal is 20 mA.
VMR = final value of the measuring range
Minimum distance between ASP and AEP = 20 % of the measuring range.
In the set scaling range the output signal is between 4 and 20 mA.
