2-2. ELECTRICAL SPECIFICATION
Accuracy is (percentage of reading + number of digit) at 23 5 ,<80%RH.
Range
Accuracy
Resolution
Test
Frequency
Max indication
value
200pF
(0.5%+7)
0.1pF
800Hz
199.9pF
2nF
1pF
800Hz
1.999nF
20nF
10pF
800Hz
19.99nF
200nF
100pF
800Hz
199.9nF
2uF
1000pF
800Hz
1.999uF
20uF
0.01uF
80Hz
19.99uF
200uF
(0.5%+5)
0.1uF
8Hz
199.9uF
2000uF
(2%+5)
1uF
8Hz
1999uF
20000uF
(3%+10)
10uF
8Hz
1999( 10)uF
pF= Pico Farad(10
-12
F ) nF= nan Farad(10
-9
F). uF= micro Farad(10
-6
F)
Excitative voltage: Max.2.8Vrms
Overload Rating: Protection by a 0. 1A/36V fuse.

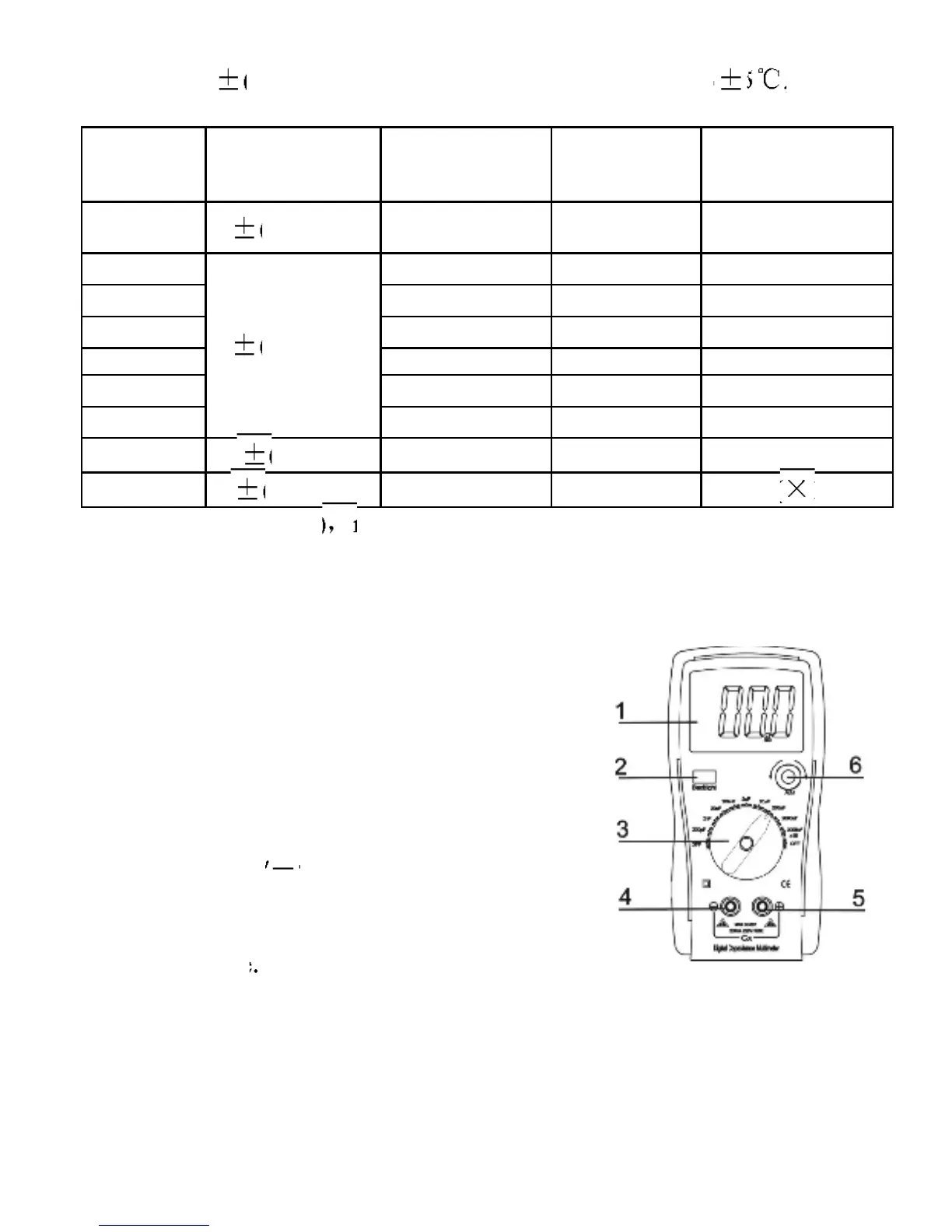

3. OPERATION PANEL
1. LCD display: display the test value and
unit.
2. Backlight key: press the button lightly; it
was turning off by itself about 8 seconds.
3. Function Selector: It is used for power on
and changes the range of function.
4. Capacitance″ ″input terminal.
5. Capacitance ″+″input terminal.
6. Zero knob: Knob to zero when test low
capacitance
4. CONSIDERATION OF MEASUREMENT
(1) This C METER is intended for measuring the capacitance value of a
capacitor. It is not intended for determining the “Q” f actor for above
reactive components. Misleading readings may be obtained if the
measurement of capacitance of a resistor is attempted.
