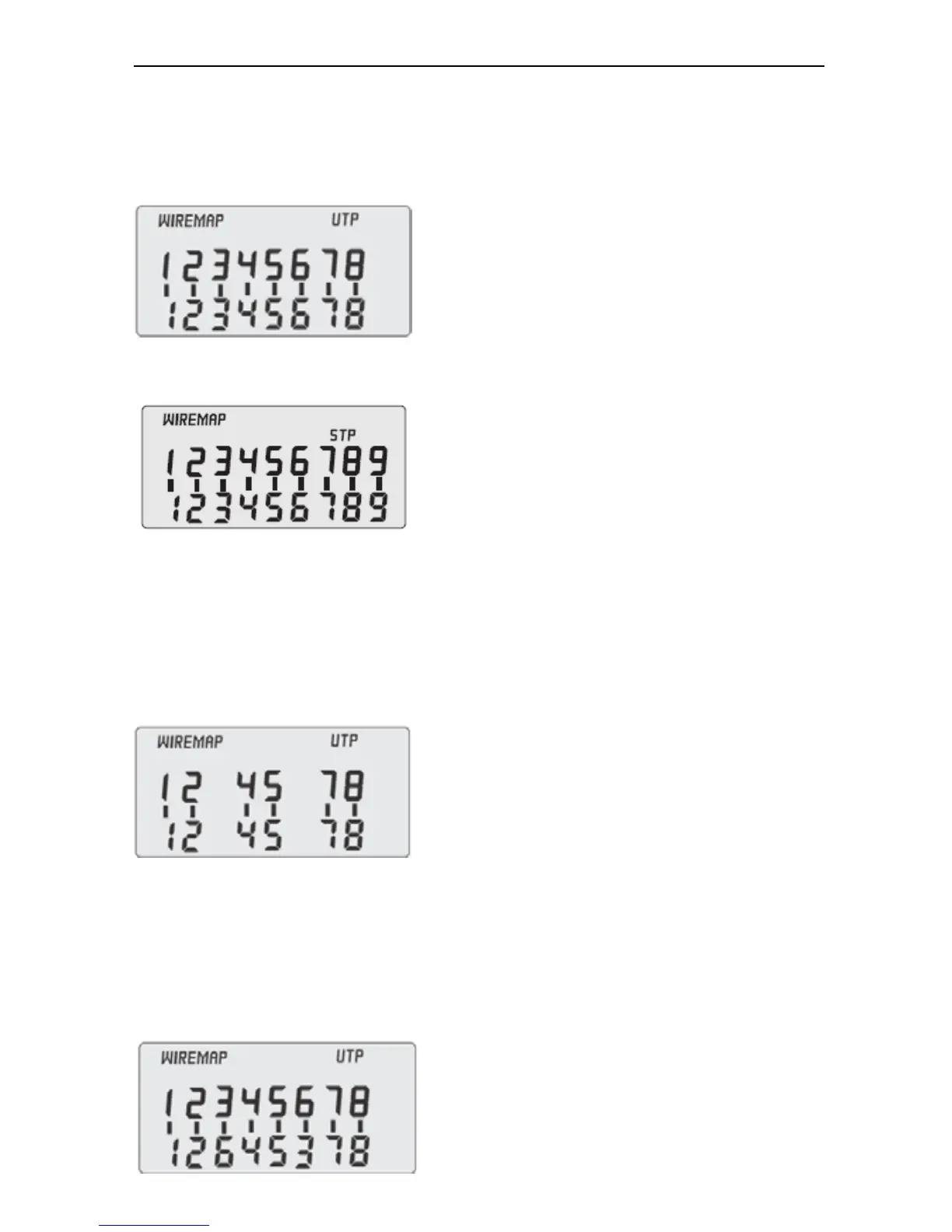

Test Result 3: Straight
If cable or connector connected situation is good and straight,
LCD will show as following figure with one short sound.
RJ45 cable without shielding
RJ45 ca
ble with shielding wire.
Number 9 indicate the cable with
earthed conduct.
Test Result 4: Open
LCD will show the numbers of good connected wires as
following figure with one short sound.
Below figure indicates that “3” “6” line of RJ45 cable is open.
Test Result 5: Crossover or miss-wire
LCD will show as following figure with two short sounds.
The figure indicates that “3” “6” line of RJ45 cable is
crossover.
17
