Uniwersalny tester LCD MT-7059 Proskit Instrukcja obsługi
Test Result 6: Crossover or miss-wire with open
situation

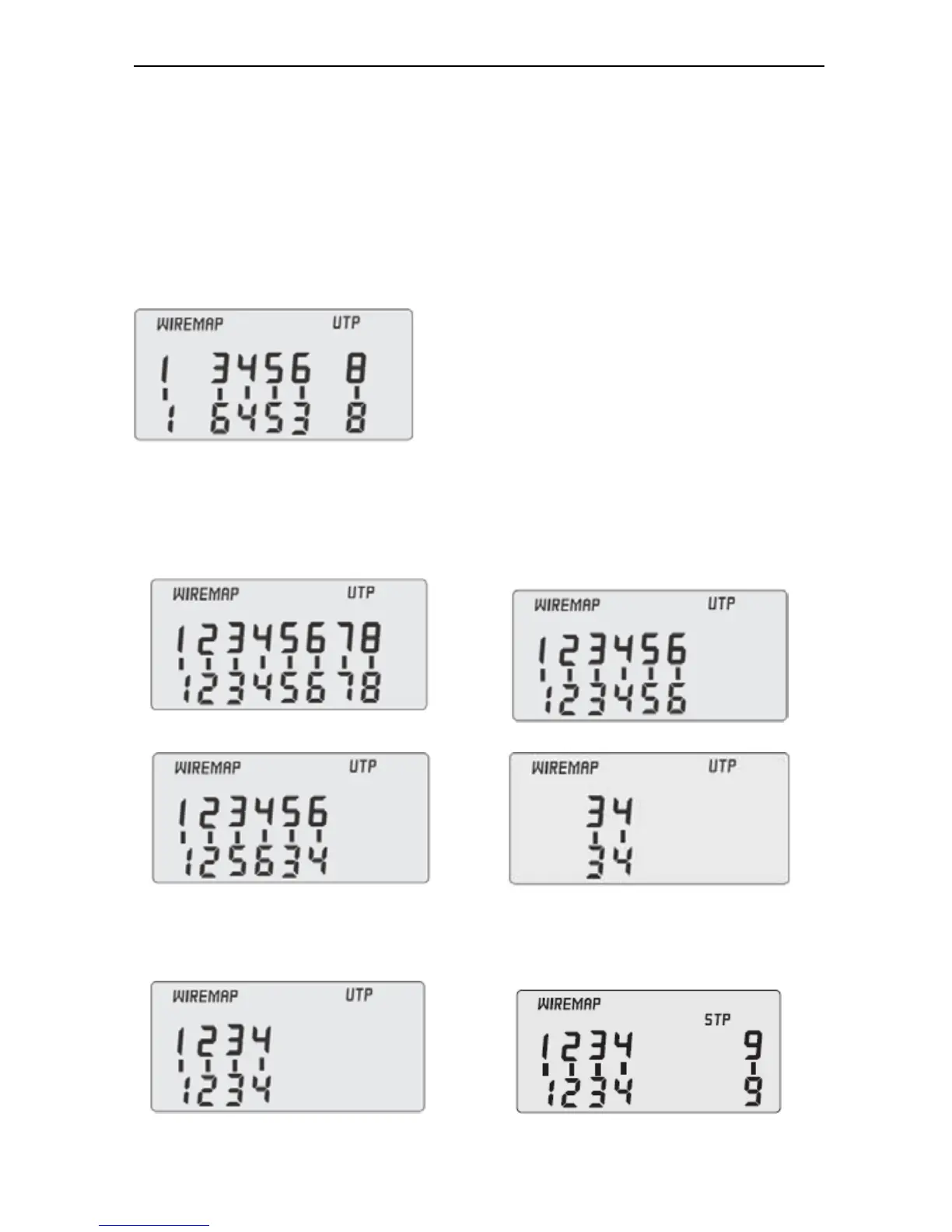

LCD will show as follow figure with two short sound and
displays
The picture indicates that “3” “6” line of RJ 45 cable is
crossover and “2” “7” lines are open.
Perform different cable mapping test (Testing result is
good)
RJ45 ca
ble
RJ11 Cable
1394 cable
BNC cable
USB cable
USB cable with shielding
USB cable without shielding
18
