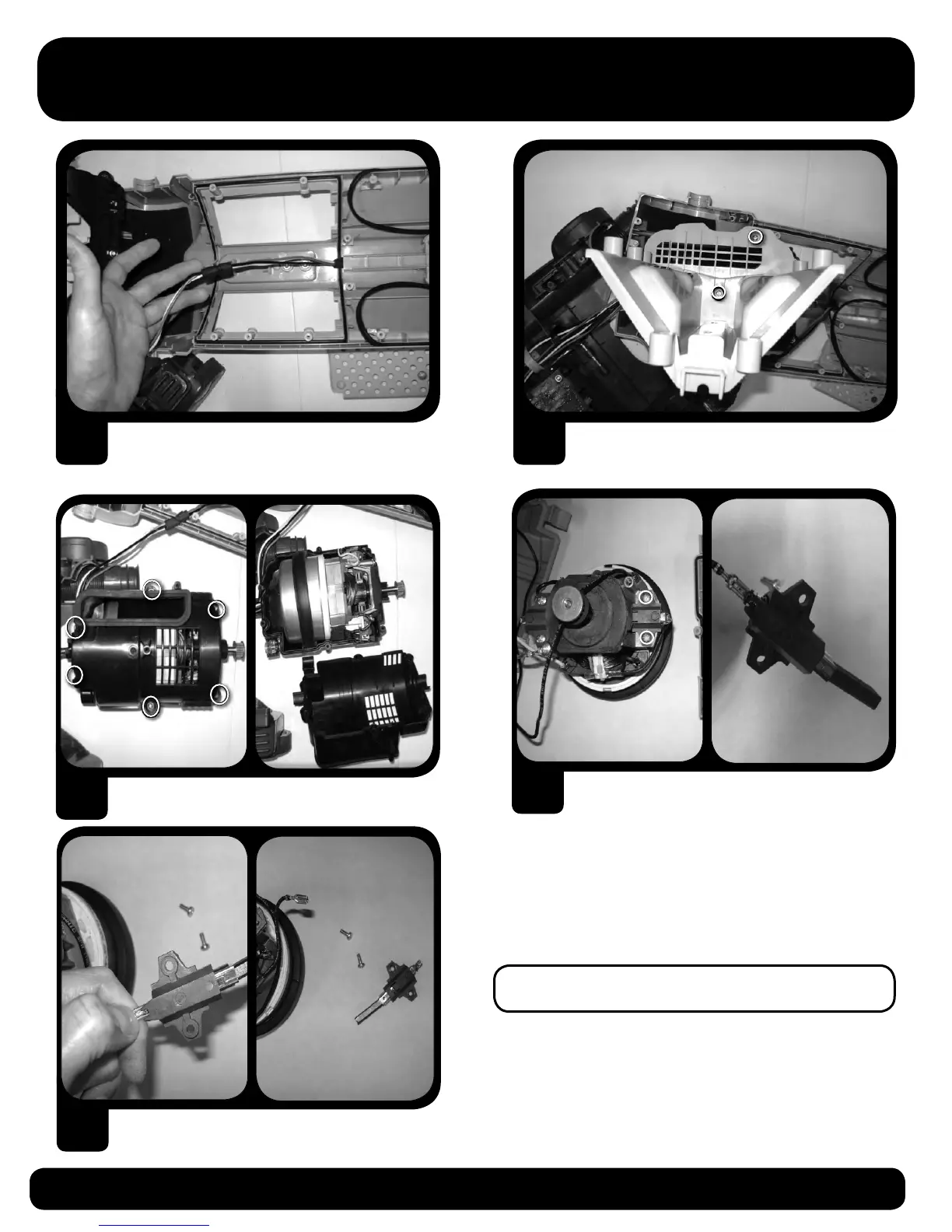

Lift wiring harness upward
9.
Motor
Remove air separator - Remove two (2) (M4 x
20mm length) screws
10.
Remove upper motor housing - Remove six (6)
(M4 x 16mm length) screws
11.
To Reassemble. Repeat steps in reverse.
www.pro-team.com 866.888.2168 7
Remove motor brush assembly - Remove two
(2) (M4 x 16mm length) screws
12.
Pinch tab end and pull to release
13.
To Next Page
