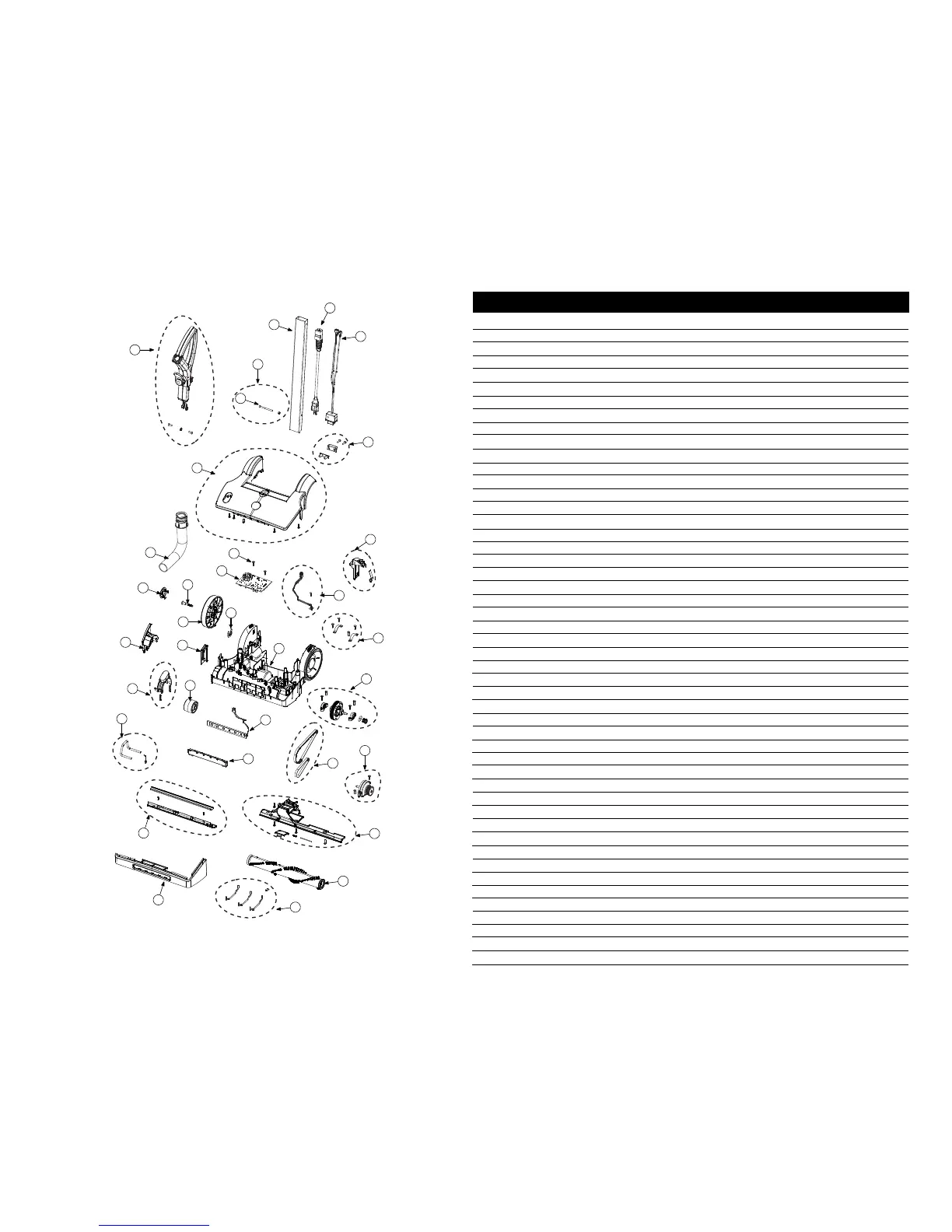

PROGEN 12 & 15 ASSEMBLY
No. Product Name
1 835699 Handle Assembly
2 834746 Aluminum Tube Handle
3 834740-1 Power Cord w/ Strain Relief 50' 15"
834740 Power Cord w/ Strain Relief 40' 12"
4 834750 Handle Tube Harness
5 834743 Handle Tube Bushing
6 835701 Handle Screw Nut Assembly (includes: #5)
7 835700 Cam Lock Latch Assembly
8 835686 Base Cover 15" Assembly
835707 Base Cover 12" Assembly
9 510252 Hose Power Head Assembly
10 835345 Washer Pan Screw M4
11 834797 Main Control Board
12 835683 Control Board Hall Effect Assembly
13 835676 Foot Pedal 15" Assembly
835702 Foot Pedal 12" Assembly
14 834788 Cap Button
15 834789 Rear Wheel Shaft 15"
835033 Rear Wheel Shaft 12"
16 834787 Rear Wheel 15"
835034 Rear Wheel 12"
17 834790 Retaining Ring
18 834804 Power Nozzle Base 15"
835031 Power Nozzle Base 12"
19 835684 Filter Housing Clamp Assembly
20 835350 Brush Removal Cover 15" Assembly
835352 Brush Removal Cover 12" Assembly
21 835682 Brush Release Button 15" Assembly
835705 Brush Release Button 12" Assembly
22 834810 Side Base Bumper 15"
835036 Side Base Bumper 12"
23 835675 Center Wheel Pivot Rod Assembly
24 834791 Center Wheel
25 835349 LED Strip Light Harness Assembly
26 834816 LED Strip Light Lens
27 835680 Front Base Plate 15" Assembly
835703 Front Base Plate 12" Assembly
28 834809 Front Base Bumper 15"
835035 Front Base Bumper 12"
29 835679 Base Wire Brace
30 834807 Brush Roller 15"
835044 Brush Roller 12"
31 835681 Rear Base Plate 15" Assembly
835704 Rear Base Plate 12" Assembly
32 835678 Timing Belt Assembly
33 835685 15" Pulley Assembly
835706 12" Pulley Assembly
34 835677 Brush Roller Clutch Assembly
1
12
16
11
33
13
7
9
10
8
14
20
21
19
6
2
5
3
4
15
23
18
17
24
22
25
26
30
29
27
28
34
31
32
11
