ProTeam Super Coach Pro 6 - Super Coach Pro 6;Super Coach Pro 10 Assembly

8 – ProTeam Owner's Manual / Manual del propietario de ProTeam / Mode d’emploi ProTeam
Super Coach Pro 6/Super Coach Pro 10
No. Product Name Qty
1 101928 Replacement Double Swivel Elbow Cuff (Black) 1 ea.
2 103048 Static-Dissipating Hose w/Cuffs (Black) 1 ea.
3 100694 Replacement Swivel Cuff (Black) 1 ½" 1 ea.
4 833948 Purple Cap 1 ea.
5 107313 Intercept Micro Filter (Super Coach Pro 10) 10/pk
107314 Intercept Micro Filter (Super Coach Pro 6) 10/pk
6 834000 Micro Cloth Filter (Super Coach Pro 10) 1 ea.
834072 Micro Cloth Filter (Super Coach Pro 6) 1 ea.
7 510179 Latch and Retainer w/Lock Nut & Screw 1 set
8 510180 Gasket for Tank (Super Coach Pro 10) 2 ea.
510181 Gasket for Tank (Super Coach Pro 6) 2 ea.
9 510183 Dome Filter w/Foam Media (Includes: 10) 1 set
10 510184 Foam Filter Media for Dome Filter 1 ea.
11 510193 Upper Motor Support w/Gasket 1 set
12 833951 Upper Motor Gasket 1 ea.
13 834036 Motor/Fan (120 V) 1 ea.
14 101720 Carbon Brush Set 1 set
15 833952 Lower Motor Gasket 1 ea.
16 510185 Cover Wire w/ 2 screws 1 set
17 510194 Lower Motor Support (5 screws) 1 set
18 834042 Triangular Lower Foam Pad 1 ea.
19 834043 Rectangular Upper Foam Pad 1 ea.
20 808380-0 Screw Pan CR #8 x ½" 1 ea.
21 510188 Housing Assembly Lower w/Screws 1 set
22 107315 HEPA Filter (2 pack) 1 set
23 833954 Exhaust Filter Door 1 ea.
24 808380-22 Screw Pan CR #8 x ¾" 1 ea.
25 834037 Switch Cord and Power Cord Assembly (Includes: 26-29) 1 set
26 106066 On/Off Switch 1 ea.
27 107043 Switch Box 1 set
28 834038 Pigtail Assembly 1 set
29 834165 Power Cord Assembly 1 set
30 510190 Upper Harness Assembly (Includes: 31-38) 1 set
31 834058 Shoulder Strap Lefthand 1 ea.
32 834059 Shoulder Strap Righthand 1 ea.
33 100358 Shoulder Strap Adjustment Buckle 1 ea.
34 510191 Sternum Strap Buckle (latch and keeper) 1 set
35 101737 Carry Handle w/Rivet Set 1 set
36 834049 Upper Pad Harness 1 set
37 834050 Pivoting Ball 1 ea.
38 834053 Outer Support Retainer 1 ea.
39 510192 Tensioning Straps 1 set
40 834055 Lower Harness Assembly (Includes: 41, 42) 1 set
41 106719 Waist Belt Keeper and Latch 1 set
42 102604 Cord Holder 1 ea.
43 834051
5
/16" - 18x1 -
3
/8" Lock Screw (2 screws) 1 set
44 510186 Harness Spacers 2 ea.
45 101678 50' Extension Cord (Not Shown) 1 ea.

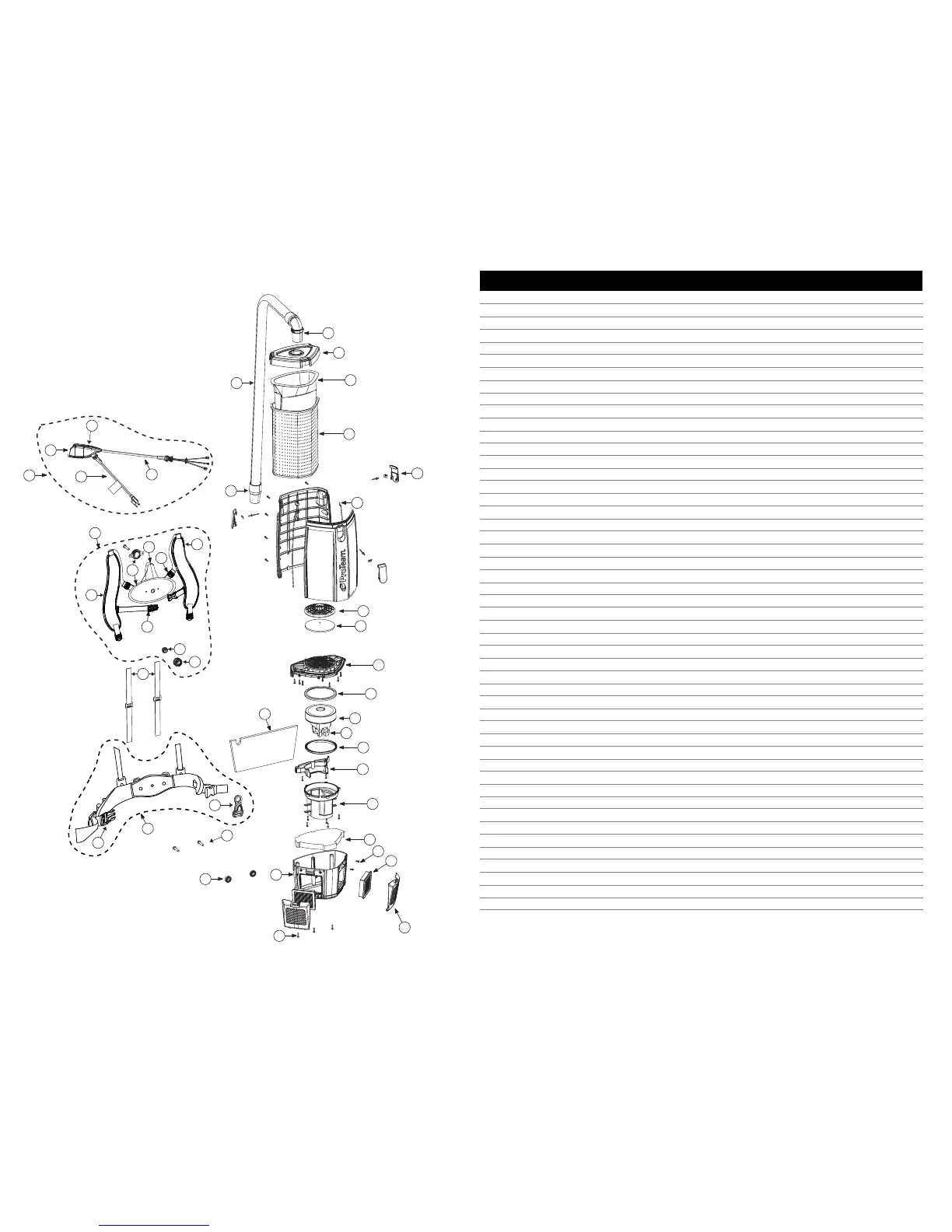

SUPER COACH PRO 6/SUPER COACH PRO 10 ASSEMBLY
6
23
29
1
3
19
4
5
27
7
13
9
15
18
12
11
16
17
22
26
28
25
2
8
10
14
44
20
21
24
43
40
41
42
35
31
30
32
34
36
33
37
38
39
