protech 62-102635-81 - New Control Jumper Selections

92-26177-555-01
Page 6 of 6
Jumper Selections on the New (62-102635-01) and New Replacement (62-102635-81) Furnace Controls.
The illustration A-2 below explains the settings of the dipswitches on the new (62-102635-01) and replacement
(62-102635-81) furnace control for use on two-stage, 80+ gas furnaces with Permanent Split-Capacitor (PSC)
motor.
______________________________________________________________________________

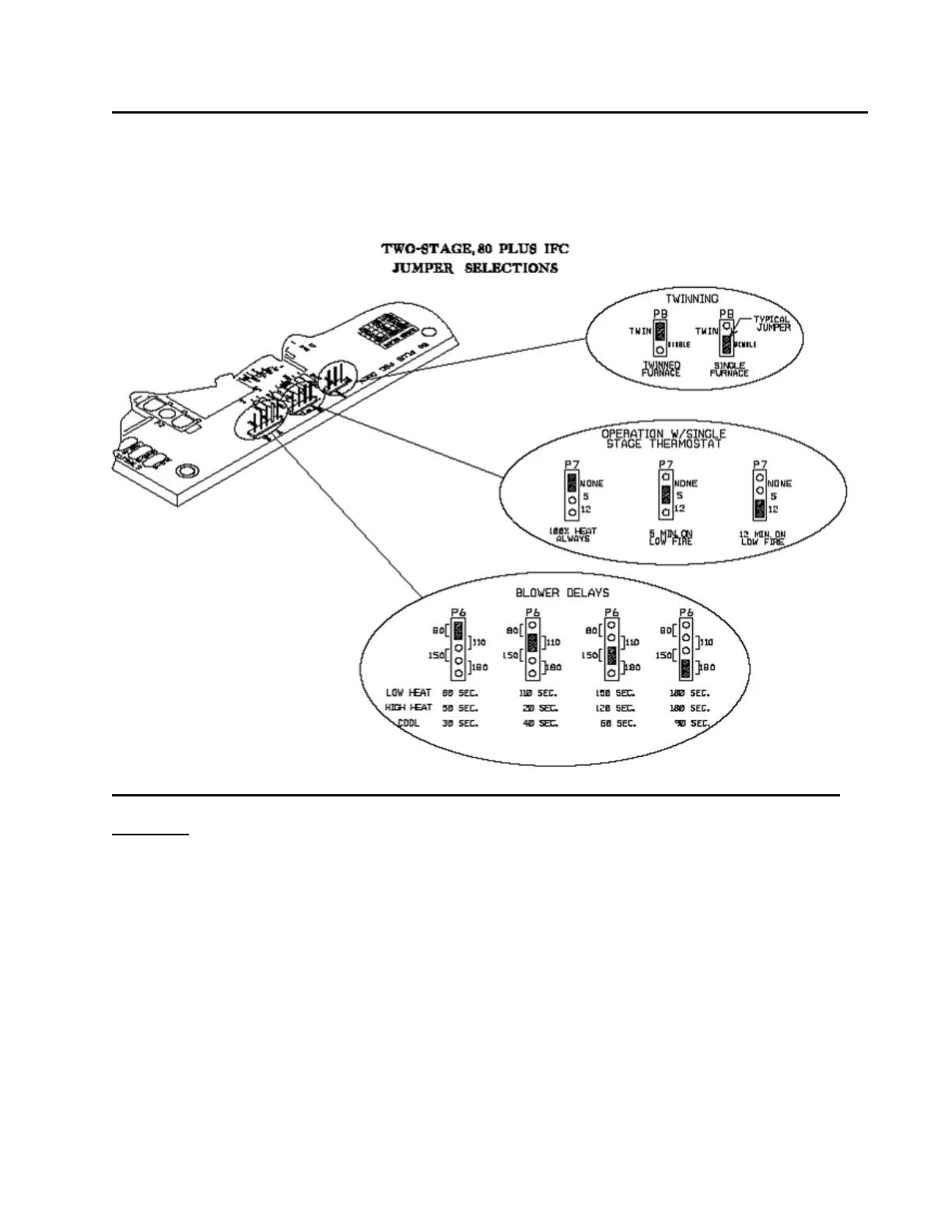

Figure A-2 – ILLUSTRATION SHOWING ALL JUMPER SETTINGS FOR 62-102635-01 AND 62-102635-81
FURNACE CONTROLS.
