protech Enigma XTR Scale 1/8 4WD User Manual

8

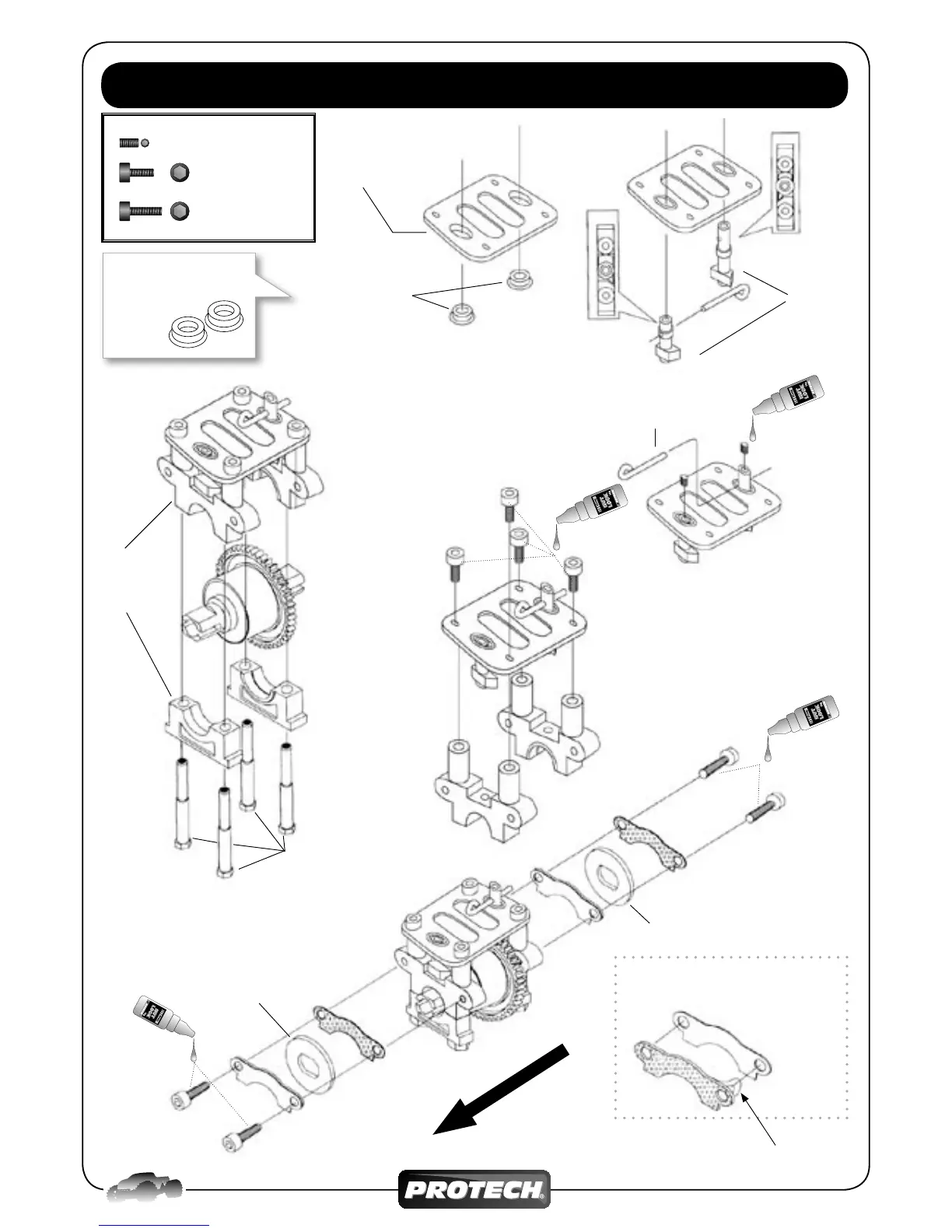

Assembly of the CENTER gearbox / Montage van de central versnelling /
Montage du réducteur central / Montierung des Getriebe
3mm x 4mm (x2)
MA2051
3mm x 10mm (x4)
MA2067
3mm x 14mm (x4)
MA2069
Carbon center differential plate
Platine de différentiel central en Carbon
Carbon verbindingsplaat
voor midden differentieel
Mittlere Verstärkungsplatte, Karbon
T61.002
Brake cam
Came de frein
Remexcenter
Bremsexzenter
T56.049
Brake lever
Levier de frein
Remarm
Bremshebel
T56.050
3mm x 10mm (4)
3mm x 14mm (2)
3mm x 4mm (2)
x4
x2
x2
Brake disc 1mm
Disque de frein
Remschijf
Bremsscheibe
T56.088
Brake disc (1mm)
Disque de frein
Remschijf
Bremsscheibe
T56.088
Brake pads set (x4)
Plaquettes de frein (x4)
Metalen rem
schoenen (x4)
Bremsbacken aus Metal (x4)
T56.051
3mm x 14mm (2)
Center Diff. post (x4)
Axe de support de Diff. central (x4)
Aluminium differentieel steunen (x4)
Differential Stutze aus Alu (x4)
T56.086
Center Diff. support
Support Diff. central
Hoofdtandwielsteun
Haupt Zahnradstutze
T56.024
FRONT
x2
5 X 8 mm
Plastic bushing
Guide plastique
Kunststof afstelring
Distanzbughse
T59.008
Remember to remove backing
from brake pad
OPTIONAL PART
5 X 8 mm
Flanged ball bearing
Roulement à billes
Kogellager
Kugellager
T56.085
