5
Time of Day
Day of Week
Room
Temperature
System
Switch
Fan
Switch
Indicates when
thermostat is calling
for Heat or Cool
Battery Level Indicator
Indicating the current power level
of the 2 “AA” batteries.
Full power remaining.
Half power remaining.
Change The batteries should be replaced at this time.
Menu key for entering
different modes such as
Cleaning, Configuration, Set
Time and Set Schedule
Enters comfort
temperature settings
into the schedule
Temperature
UP/Down used for
modifying set point
as well as to
navigating the menus
Set Temperature

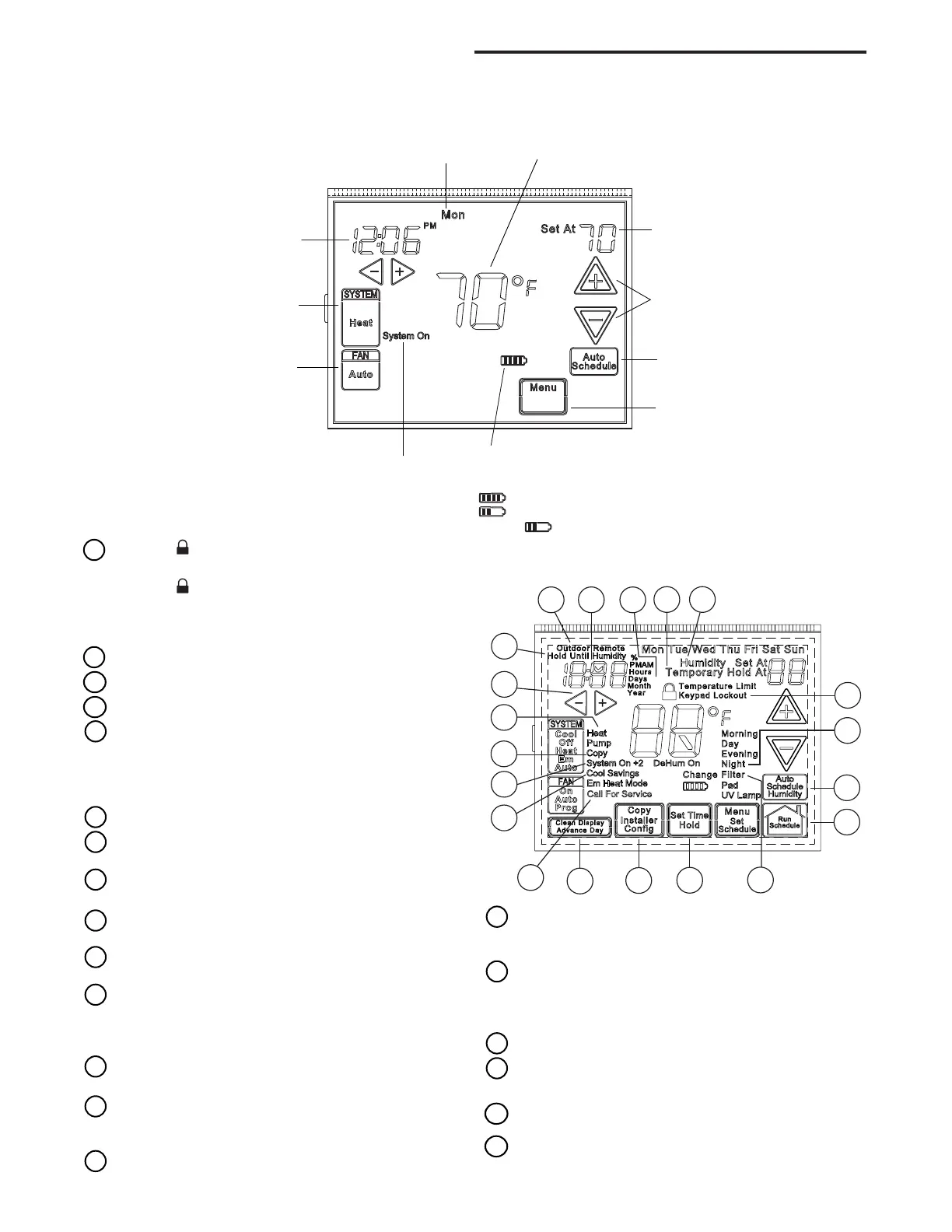

THERMOSTAT QUICK REFERENCE
Home Screen Description
Figure 9 – Home Screen Display
Figure 10 – Programming & Confi guration Items
7
15
6
5
123456789
1
0
1
1
1
2
1
3
1
4
1
5
1
6
1
7
1
8
1
9
2
0
2
1
2
2
2
3
2
4
2
5
2
6
2
7
2
8
2
9
3
0
3
1
3
2
3
3
3
4
3
5
3
6
3
7
3
8
3
9
3
20
2
1
11 12
10
16 17
9
8
18
14
13
4
19
Programming and Confi guration Items
1
Displays and "Keypad Lockout" when in keypad
lockout mode.
Displays
and "Temperature Limit" and "Keypad
Lockout" when limited range is activated and locked.
Displays only "Temperature Limit" when limited range
is activated.
2
Indicates period of day being programmed.
3
RUN SCHEDULE (run program) key.
4
SET TIME key or HOLD temperature key.
Displays "Change Filter"/"Change Pad"/"Change UV
Lamp" when the system has run for the programmed
fi lter/humidity pad/UV lamp time period as a reminder
to change or clean your fi lter/humidity pad or to replace
UV lamp.
COPY key or INSTALLER CONFIG key.
CLEAN DISPLAY key allows 30 seconds to wipe off the
display or ADVANCE DAY key for programming.
Used in programming to set time and in confi guration
menu to change selections.
"Hold Until" indicates the time when a temporary hold
period will end.
"Hours" and "Days" displays during steps in installer
confi guration.
The words "Hold At" are displayed when the thermo-
stat is in the HOLD mode. "Temporary Hold At" is
displayed when the thermostat is in a temporary HOLD
mode.
"Humidity" indicates that the "Set At" display is Hu-
midity setpoint.
"System On" indicates when heating or cooling stage
is energized. "+2" indicates when a second stage is
energized.
"Copy" indicates the copy program feature is being
used during programming.
A steady "Cool Savings" display indicates the feature
is enabled in the installer menu. A fl ashing "Cool Sav-
ings" display indicates the feature is active.
"Remote" indicates that the indoor remote temperature
sensor, is being accessed. "Outdoor Remote" indi-
cates the outdoor remote temperature sensor is being
accessed.
Display time, remote temperature or humidity.
"Heat Pump" displays when the system confi guration
is set to HP1/HP2.
19
"Call for Service" indicates a fault in the heating/cooling
systems. It does not indicate a fault in the thermostat.
20
Auto Schedule key for Auto Schedule function.
