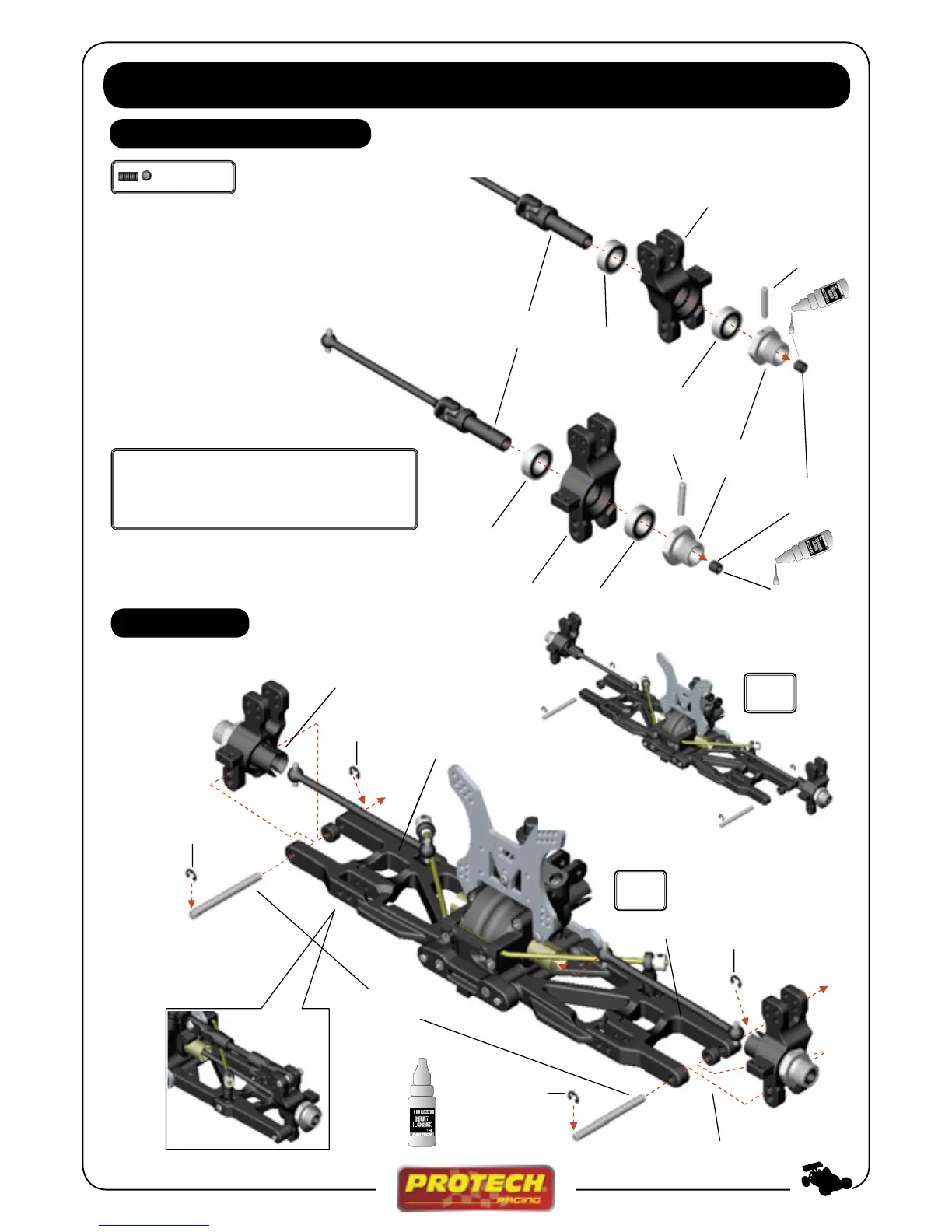

protech YADA ST - Rear Suspension Hubs and Drive Set; Rear Hub Carrier and Drive Set Assembly

15
Assembly of the rear suspension / Montage van de achterste ophanging /
Montage de la suspension AR / Montierung von die Querlenker oben
Rear Hub Carrier Assembly
NUT LOCK
NUT LOCK
Universal Drive Joint
T30.052
Rear Hub - L
T30.030
Wheel Hub Pin
T30.115
Wheel Hub
T30.086
Set Screw 5 x 5mm
T30.192
Rear Hub - R
T30.030
YADA ST : Rear = Rear Wheel Axle (Fig.1)
YADA PRO : Rear = Universal Drive Joint (Fig.2)
YADA PRO-X : Rear = Universal Drive Joint (Fig.2)
Fig.1
Fig.2
E-Clip 3mm
T30.217
E-Clip 3mm
T30.217
E-Clip 3mm
T30.217
E-Clip 3mm
T30.217
YADA ST Rear Drive Shaft
T30.054
Rear Drive Shaft (YADA ST)
T30.054
Rear Lower Sus. Hinge Pin Short
T30.074
Plastic Spacer T30.194
Rear Drive Set
5 x 5mm (x2)
Rear Wheel Axle (YADA ST)
T30.058
Wheel Hub Pin
T30.115
8 x 16 x 5 mm
ball bearing
T30.144
8 x 16 x 5 mm
ball bearing
T30.144
8 x 16 x 5 mm
ball bearing
T30.144
8 x 16 x 5 mm
ball bearing
T30.144
Stud lock
A601
Nut lock
A600
