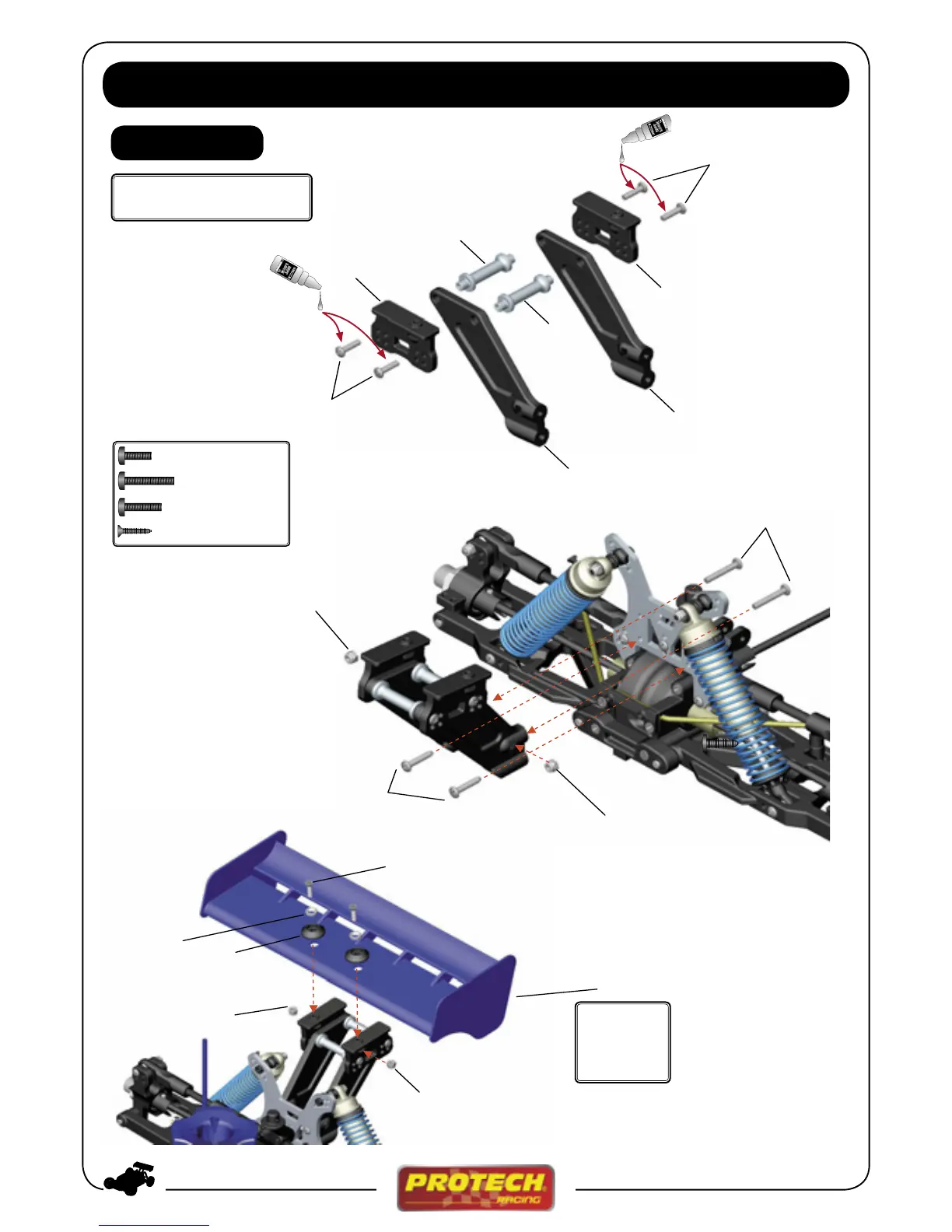

protech YADA ST - Rear Wing Mounting; Wing and Wing Stay Assembly

26
R/H 3 x 12mm
T30.212
R/H 3 x 12mm
T30.212
Wing Stay Joint (*)
T30.037
Wing Stay Joint (*)
T30.037
Wing & Wing Stay
Wing Stay Joint
YADA ST = plastic T30.037
YADA PRO & PRO-X = aluminium T31.202
Upper Wing Stay
T30.037
Upper Wing Stay
T30.037
Wing Stay Tower
T30.037
Wing Stay Tower
T30.037
NUT LOCK
NUT LOCK
R/H 3 x 20mm
T30.207
R/H 3 x 16mm
T30.213
Washer
T30.037
F/H 3 x 12mm
T30.206
Wing Stay Spacer
T30.037
Wing (*)
R/H 3mm x 12mm (x4)
R/H 3mm x 20mm (x2)
R/H 3mm x 16mm (x2)
F/H 3mm x 12mm (x2)
* Wing Colors
Blue : T30.038
White : T30.039
Yellow : T30.040
Green : T30.041
Orange : T30.042
Nylon Nut M3
T30.172
Nylon Nut M3
T30.172
Nylon Nut M3
T30.172
Nylon Nut M3
T30.172
Mounting of the rear wing / Montage van de achtervleugel
Montage de l’aileron AR / Montiering des heckfl ügel
