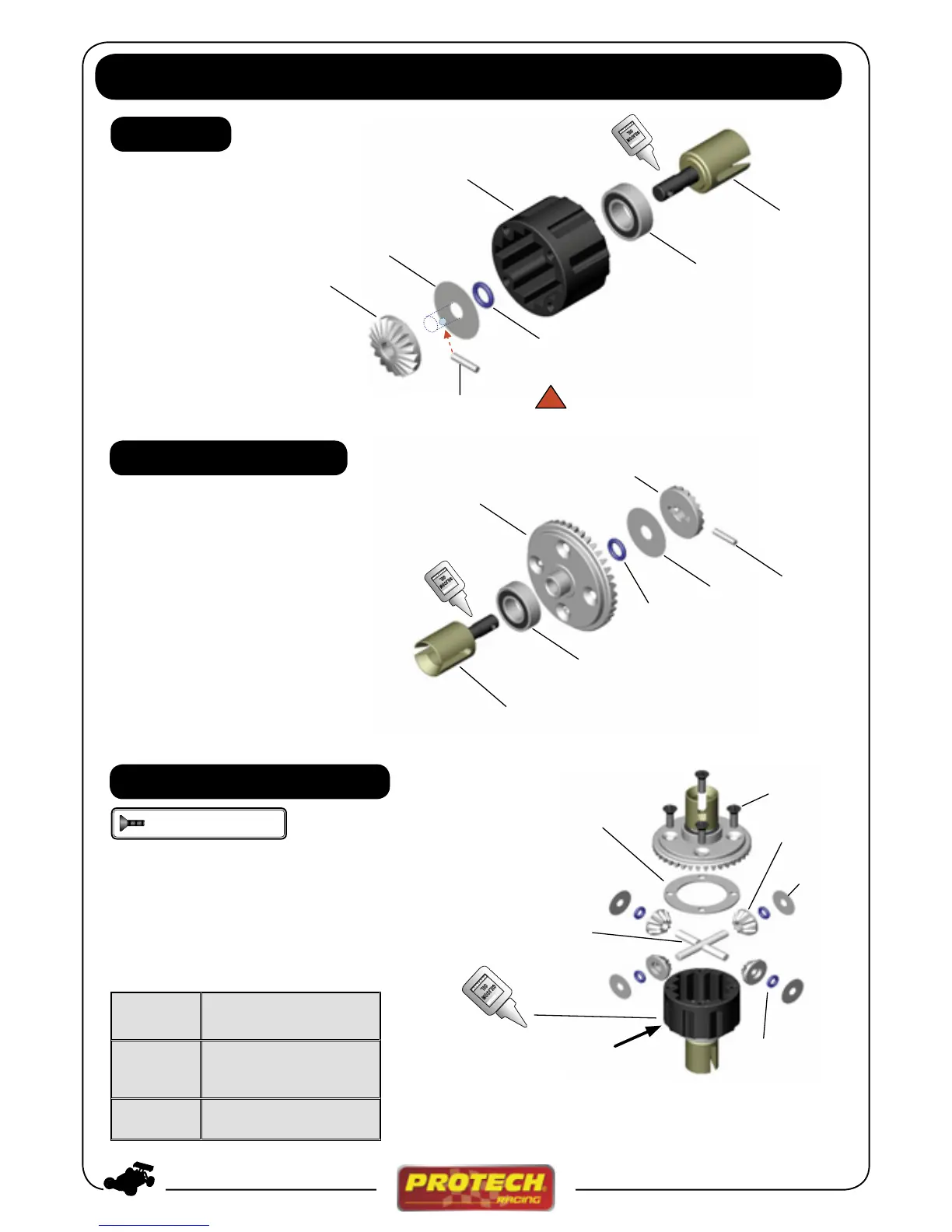

FRONT of REAR DIFFERENTIAL 2x
Assembly of the differentials FR & RE / Montage van het voorste en achterste differentielen /
Assemblage des différentiels AV et AR / Montierung von die Vordere und Hintere Differentialen
Differential gasket set
T30.091
Ball bearing
8x16x5mm
T30.144
Diff Case (F/R)
T30.034
2 x 9 mm pin
T30.103
Differential shaft
T30.075
Shim ring
3,6x12mm
T30.090
Bevel gear 39T
T30.068
2 x 9 mm pin
T30.103
Cap Joint
T30.055
Differential bevel gear 18T(Large)
T30.070
Differential bevel gear (Large)
T30.070
Cap Joint
T30.055
O-ring
T30.087
O-ring
T30.087
Shim ring
T30.089
Shim ring
T30.089
O-ring (option part)
T31.215
F/H 3mm x 10mm (4)
T30.180
Bevel gear small
T30.071
Differentials
Gear Differential / Make 2 x !
Assembly of the Front Differential
(*) USE ONLY PROTECH SILICONE OIL
F/H 3mm x 10mm (x4)
O-rings are a optional part for different driving settings (with O-rings = more acceleration)
OIL
OIL
! 90%
Full / Plein / Vol / Voll
OIL (*)
Ball bearing
8x16x5mm
T30.144
FRONT DIFF.
More steering use the ref. SL2500
Standard use the ref. SL5000
Less steering use the ref. SL10000
CENTER
DIFF.
Standard use the ref. SL5000
Quick use the ref. SL10000
acceleration
REAR DIFF.
Standard use the ref. SL1000
or use grease
