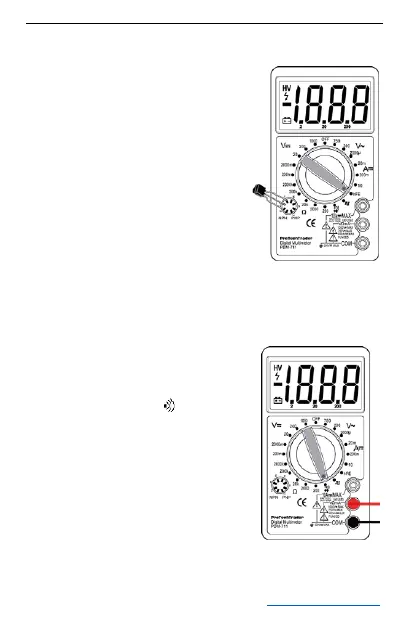

TRANSISTOR (hFE)
1. Set RANGE switch to the
hFE position.
2. Determine whether the
transistor is PNP of NPN
type and locate the
Emitter, Base and
Collector leads. Insert the
leads into the proper
holes of the hFE Socket
on the front panel.
3. The meter will display the
hFE value while providing the base current
10μA and V
CE
2.8V.
CONTINUITY TEST (Beep)
1. Red lead to “VΩmA”, Black
lead to “COM”.
2. Set RANGE to “ ” position.
3. Connect test leads to two
points of circuit to be
tested. If the resistance is
lower than 30Ω±20Ω, the
buzzer will sound.
To Next Page
