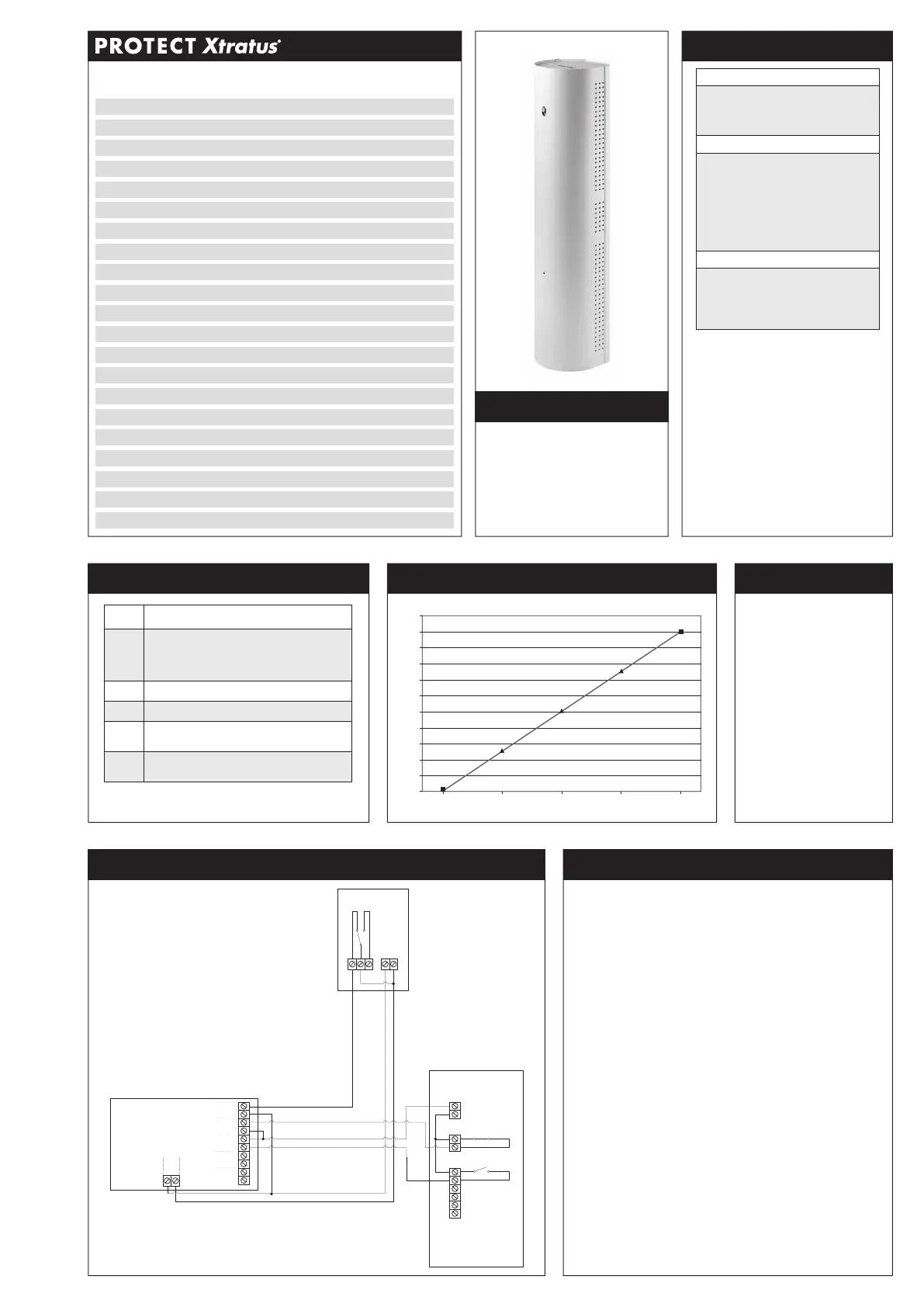

Protect QUMULUS - Typical Installation

SPECIFICATIONS:
DIP
Function
1
Heat disable
On = The heating element disconnects
if disarm is activated
OFF = Constantly heating
2
Trig 1*
3
Trig 2*
4
Reserved.
Leave in OFF position
5
Error indicator/buzzer
ON = Beeper/buzzer connected
* ON = Normal open.
OFF = Normal closed.
FOG OUTPUT DIAGRAM
TYPICAL INSTALLATION 8 DIFFERENT ERRORS
FOG TIMEDIPSWITCH SETTINGS
DISPLAY EXPLANATION
GREEN LIGHT
Flashes when heating (1  ash/sec.).
Lights constantly when Xtratus
®
is Ready.
Turns off if error occurs.
YELLOW LIGHT
Flashes at E2 error (no  uid),
beeper sounds and fault relay active
(1  ash/sec.).
Flashes for 24 hours after
successful fog release.
1  ash/sec. (no beeper active).
(Can be erased by pushing Reset button).
RED LIGHT
Lights constantly at critical errors:
E5, E6, E7, E8.
1  ash/sec. at less critical errors:
E1, E3, E4.
CONSUMER GOODS
90020202 Fog fluid 0,4 l
White - Item no.: 90010013
Prepared for 0,4 l.  uid container (not included)
Enough  uid for 2 discharges in one  uid container
Power consumption: 1050 W
Mains connection: 230V, 50 Hz
Standby consumption after heating up: 60 W (on average)
Standby consumption when heat is disabled: 5-10 W
Heating time from cold: 8 min.
Re-heating time after fog discharge: 0-5 min.
Operating temperature (min./max.): 5/80° C.
Input: 3 signals (arming, trig 1, trig 2)
Output: 2 signals
Output power for veri cation sensor (PIR), 9V DC
On/off dipswitches for setting of signals and heating
Backup of electronics (9V Alcaline)
Power backup after power failure: 17 min.
Optical, audible and electrical signals/indicators
Internal and external status indicator
Anti-sabotage, impact-resistant steel casing
Colours available: White
Dimensions: L: 650, W: 140, H: 148 mm
Installation weight: 10 kg
Xtratus
®
230V
& 115/130V
250 m
3
at 1 meter visibility.
0 Sec.
275
250
225
200
175
150
125
100
75
50
25
0
4 Sec. 8 Sec. 12 Sec. 16 Sec.
Output 1
Output 2
Arm
Trig 1
Trig 2
12V Out
-
+
9V
-
+
PIR
Movement Detector
Alarm panel
Fog Cannon
Xtratus
Alarm trig
Normally Open
when alarm system
is ARMED (Night)
Closed when alarm
system is disARMED
(day)
-
+
9V Out
E1: Mains supply error
E2: No  uid error
E3: Battery voltage low
E4: PCB board temperature high/low error
E5: Thermal sensor error
E6: Heat rod error
E7: Over temperature on heater error
E8: Motor error
Which error is announced?
To  nd out which error is announced on the Xtratus
®
, you simply press
and release the Reset button shortly.
Immediately after, the Xtratus
®
will tell you which error is present - simply
by counting the present error. This is done by use of the red light and the
buzzer that will  ash and beep the error number.
An example: E5 error is present on the Xtratus
®
. You press and release
the Reset button and the constant red light will turn off. Then the red
light slowly will  ash 5 times and the buzzer will sound accordingly.
Right after the red constant light comes back.
So you simply count the number of  ashes and beeps, and this will
correspond to the present error number.
This procedure can be repeated until you reset the error.
Fog Cannon
TM
Xtratus
®
