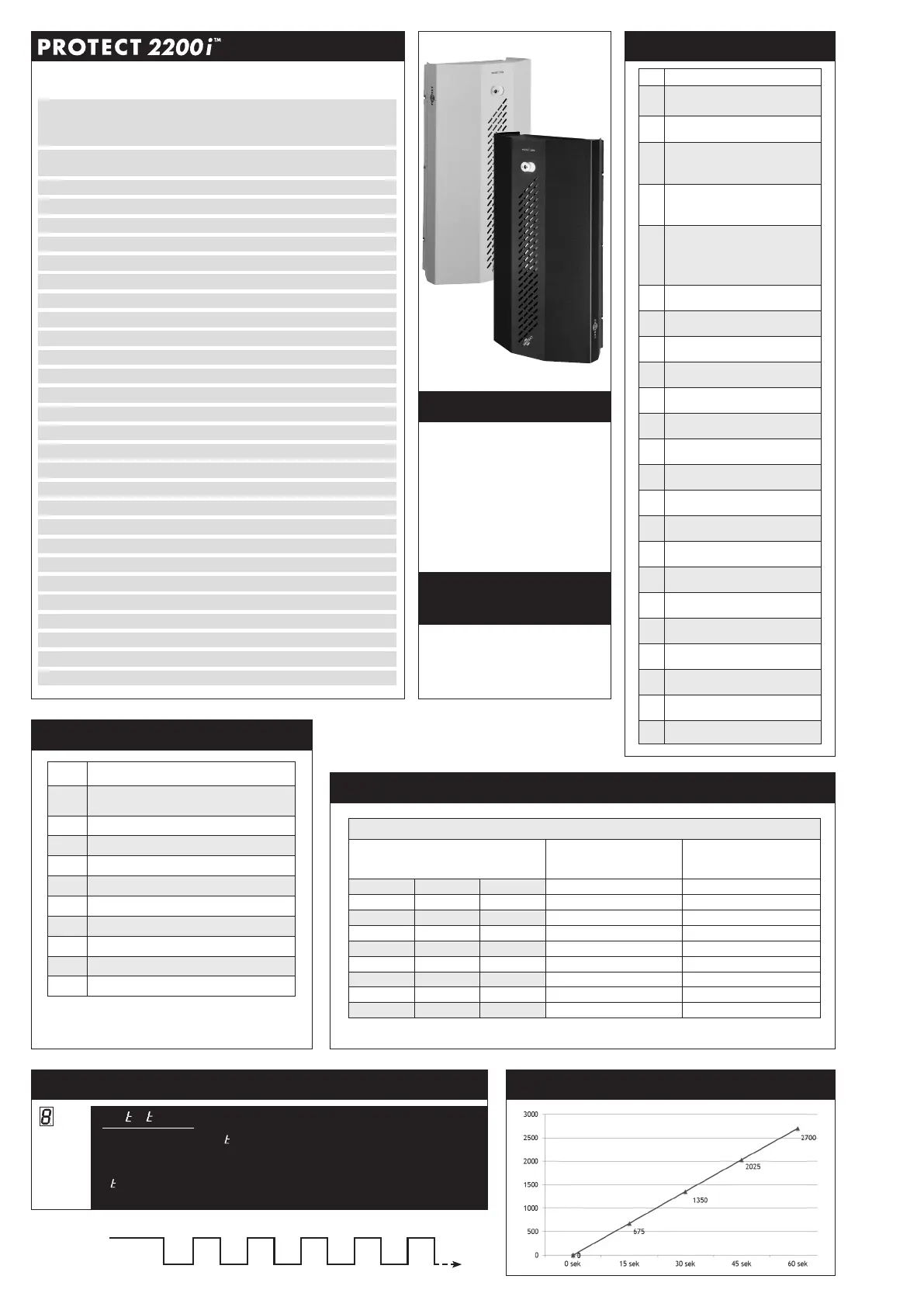

SPECIFICATIONS:
Performance (fog generation), examples: 60 sec.: 2700 m³
70 sec.: 2875 m³
60 sec. with 10-min. pulse:
3700 m³
Fog generation settings: Can be timed at 4 intervals
from 900-2875 m
3
Pulse function: Yes, able to shoot several times
Battery backup (2 x 12 V, 1.2 Ah): Backup of electronics and pump
Total capacity (full uid container): Approx. 13200 m
3
Fluid container: 3 litres
Electronic uid measurement: Yes
Number of 60-sec. shots in one container: 5
Mains connection: 230 V, 50 Hz
Power consumption: 1680 W
Standby consumption after heating up: 80 W (on average)
Standby consumption when heat is disabled: 5-10 W
Heating time from cold: 30-45 min.
Re-heating time after fog discharge: 0–14 min.
Operating temperature (min./max.): 5/80°C.
Input: 5 signals
Output: 3 signals
Control settings for fog time, signals and heating:
On/off DIP switches
Power backup after power failure: Up to 3 hours
Built-in automatic battery testing: Yes
Signals/Indications: Optical, audible and electrical
Status indicator on PCB: Yes
External status indicator: Yes, red/yellow/green LED
Data log memory: Possible with IntelliSuite
Dimensions (mm): L: 633, W: 352, H: 172
Installation weight: 24.8 kg
4 different angled nozzles and nozzle extension options:
Yes
Available in the following colours: White and black
Tested and approved in accordance with EN 50131-8:
Yes
FOG OUTPUT DIAGRAM
TYPICAL
SPARE PARTS
FOGTIME DIP 2-3-4
CONSUMER GOODS
90022200 XTRA
+
Fog fluid 3 l
90022230 30° Nozzle
90022203 3-hole nozzle
90022233 30° degree 3-hole nozzle
90020000 Nozlle extension 15 cm
90020506 Ceiling plate
90020500 Hoist tool
SPP1060 Batteri 12V - 1,2Ah
SPP1075-0000 Thermo Sensor
SPP2200-0025 Heating Rod
SPP2200i-0000 Print
White - Item no.: 90012218
Black - Item no.: 90012219
PROTECT 2200i
TM
Dip Setting Fog Time Fog Volume
Dip 2 Dip 3 Dip 4 m³
OFF OFF OFF demo demo
ON OFF OFF 20s 900
OFF ON OFF 40s 1800
ON ON OFF 60s 2700
OFF OFF ON 70s 2875
ON OFF ON 30s + 6 min.* 2500*
OFF ON ON 60s + 10 min.* 3700*
ON ON ON - -
DISPLAY EXPLANATION
DISPLAY
H
Heating. The system is in the heating
phase and has not reached operating
temperature.
r
The system has reached normal operating
temperature and is ready to produce fog.
d
”Disable” input activated and system
blocked, as the alarm is not connected
(heating has not been disconnected).
Hd
”Heat Disable”. ”Disable” input activated
and system blocked, as the alarm is not
connected. Heating is also disconnected, as
dipswitch 1 is in the ON position.
bt
“Blocking timer active”. System blocked
from fog triggering internally (timer-con-
trolled). This occurs after the fog has been
triggered or in connection with system
start-up after loss of mains voltage.
A
“ARM” input activated.
P
“Primary Trig” input activated.
S
“Secondary Trig” input activated.
bAt
A battery is (or has been) mounted.
C
The battery is currently being charged.
E1
Mains voltage failure.
E2
Low uid level.
E3
Fire alarm input activated.
E4
Low battery voltage.
E5
Failed attempts to charge the battery for
24 hours.
E6
Battery failed load test.
E7
PCB temperature too high.
E8
PCB temperature too low.
E9
Thermo-sensor temperature too high (or
connection lost).
E10
Thermo-sensor temperature too low
(after preliminary heating).
E12
Pump timeout. The pump has been running
for too long. Lack of uid, etc.
E13
External 12 supply shut down due to
overload.
E14
Error in “load test circuit”.
DIP
Function
1
Heat disable. On = The heating element
disconnects if disable is activated
2 Fog time
3 Fog time
4 Fog time
5 Arm*
6 Primary*
7 Secondary*
8 Fire-alarm delay**
9 Reserved. Leave in OFF position
10
Error indicator. On = Beeper connected
* ON = normal open.
OFF = normal closed.
** ON = delay is active.
DIPSWITCH SETTINGS
Break Break
PROTECT Pulse Effect
TM
60 sec. fog Fog output Fog output Fog output Fog outputFog output
BreakBreakBreak
Display/
fault codes
DISPLAY / FAULT CODES
PrO Ec 600 EU
H. H: Heat
r. r: ready
d. d: disable
H.d. Hd: Heat disable
B. . Bt: Blocking timer
A. A: Arm trig
P. P: Primary trig
S. S: Secondary trig
b.A. . bat: battery
C. C: Charge
E. E: Error + no
1.234567890
1.234568790
rc. rc: Remotely controlled*
norc. norc: No remote control signal*
rd. Remotely disabled*
rHd. rHd: Remotely heat disabled*
rP. rP: Remote primary*
rb. rb: Remotely blocked*
rF. rF: Remote re alarm*
rPA rPA: Remote panic alarm activated*
