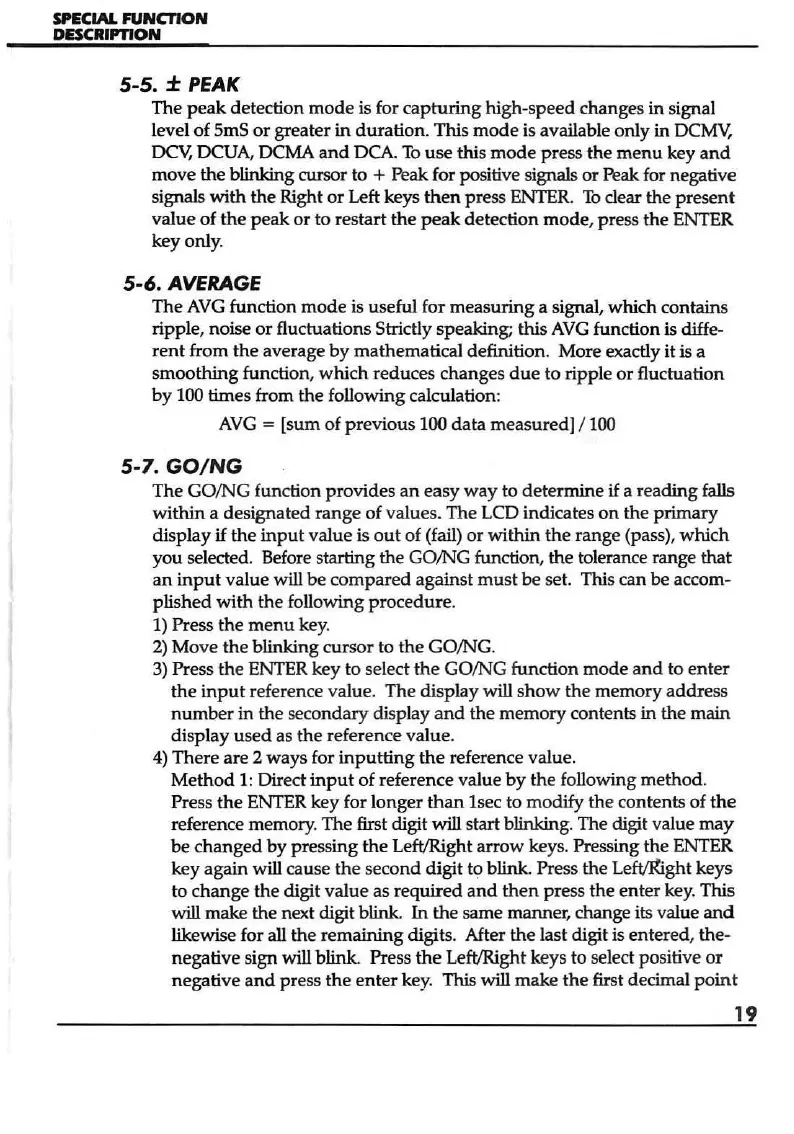

SPECIAL
FUNcnON
DESCRIPTION
5-5.
± PEAK
The
peak
detection
mode
is for
capturing
high-speed changes in signal
level of
5mS
or
greater
in
duration. This
mode
is available only in
DCMY,
ocv, DCUA, DCMA and DCA.
To
use
this
mode
press
the
menu
key and
move the blinking cursor to + Peak for positive signals or Peak for negative
signals
with
the Right
or
Left keys
then
press ENrER.
To
clear the present
value
of
the
peak
or
to restart
the
peak
detection mode, press the ENTER
key only.
5-6.
AVERAGE
The
AVG
function
mode
is useful for measuring a signal, which contains
ripple, noise or fluctuations Strictly speaking; this
AVG
function
is
diffe-
rent from the average
by
mathematical definition. More exactly it is a
smoothing
function,
which
reduces changes
due
to ripple or fluctuation
by
100 times from the following calculation:
AVG
= [sum of previous 100
data
measured] /
100
5-7.
GOING
The GOING function provides
an
easy
way
to determine
if
a reading falls
within
a designated range of values. The LCD indicates
on
the
primary
display
if
the
input
value is
out
of (fail) or within the range (pass), which
you selected. Before starting the
GOING function, the tolerance range that
an input value will be compared against
must
be set. This can
be
accom-
plished
with
the following
procedure
.
1)
Press the
menu
key.
2)
Move
the
blinking cursor to the GOING.
3)
Press the ENTER key to select
the
GOING function
mode
and
to
enter
the
input reference value. The display will
show
the memory address
number in the secondary display
and
the memory contents
in
the main
display
used
as the reference value.
4) There are 2
ways
for inputting
the
reference value.
Method
1:
Direct
input
of reference value
by
the following method.
Press
the
ENTER key for longer
than
1sec to modify the contents of
the
reference memory. The first digit
will
start blinking. The digit value
may
be
changed
by
pressing the Left/Right arrow keys. Pressing the ENTER
key again will cause the second digit to blink. Press the Left/ltight keys
to change the digit value as required
and
then
press the enter key. This
will make the next digit blink.
In
the same manner, change its value
and
likewise for all the remaining digits. After the last digit
is
entered, the-
negative sign
will
blink. Press
the
Left/Right keys to select positive
or
negative and press the enter key.
This
will make the
first
decimal
point
19
