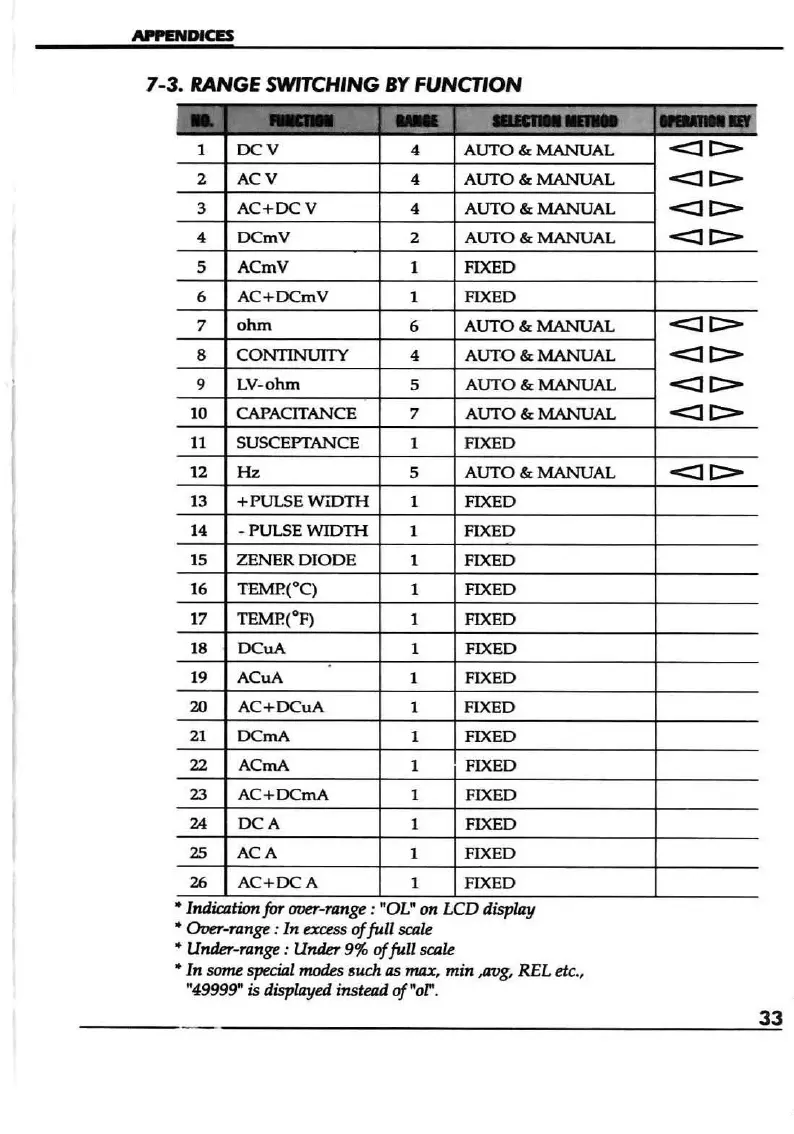

APPENDICES
7-3. RANGE SWITCHING BY FUNCTION
, .. ,,-
' .. - .. ~---
-
1 DCV 4 AUTO &< MANUAL
2
ACV
4 AUTO &< MANUAL
3
AC+DCV
4 AUTO &< MANUAL
4 DCmV
2 AUTO &< MANUAL
5
ACmV
1 FIXED
6 AC+DCmV 1
FIXED
7
ohm
6 AUTO &< MANUAL
8 CONTINUITY 4
AUTO &< MANUAL
9 LV· ohm 5 AUTO &< MANUAL
10 CAPACITANCE 7
AUTO &< MANUAL
11 SUSCEPTANCE 1 FIXED
12
Hz 5 AUTO &< MANUAL
13 + PULSE WiDTH 1
FIXED
14 - PULSE WIDTH
1 FIXED
15
ZENER DIODE
1 FIXED
16 TEMP.(°C)
1 FIXED
17
TEMP'(°F)
1 FIXED
18 DCuA 1 FIXED
19 ACuA
1 FIXED
20 AC+DCuA
1 FIXED
21
DCmA 1 FIXED
22 ACmA
1 FIXED
23 AC+DCmA 1
FIXED
24 DCA
1 FIXED
25 ACA
1 FIXED
26 AC+DCA
1 FIXED
• Indication for aver-range: "OL" on LCD displlzy
• Over-Tilnge
: In t:<CeSS of full scale
• Under-range: Under 9% of full scale
.. In some special modes such as 11UlX" min ,avg, REL etc.,
"49999" is dispu.yed instead of "or.
