42

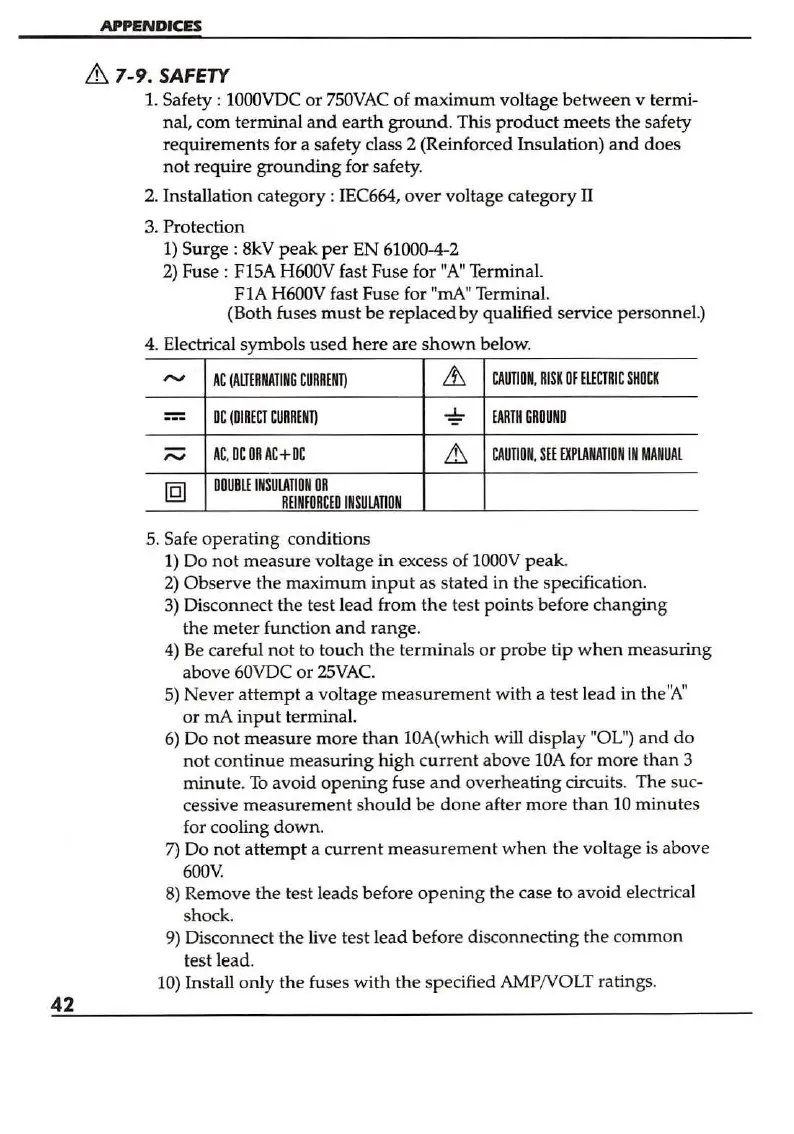

APPENDICES
&.
7-9.
SAF
E
TY
1. Safety: 1000VDC or
750VAC
of maximum voltage between v termi-
nat
com
terminal
and
earth ground. This product meets the safety
requirements for a safety class
2 (Reinforced Insulation)
and
does
not require grounding for safety.
2.
Installation category: IEC664, over voltage category
II
3. Protection
1)
Surge:
SkV
peak
per
EN 61000-4-2
2)
Fuse:
F1
5A
H600V fast Fuse for
"A"
Terminal.
FlA
H600V fast Fuse for
"rnA"
Terminal.
(Both fuses must
be
replaced by qualified service personnel.)
4. Electrical
symbo
ls
used
here are
shown
be
low.
,..,
AC
(A
LTER
NA
TI
NG
WRRI
Nn
Lt
CA
UTIO
N.
R
IS
I
OF
EU
CTRIC
S
HOC
I
-
--
DC
(
DIR
ECT
CURRE
Nn
~
EART
H
GRO
UN
D
-
AC.
DC
OR
AC+
OC
Lt.
CA
UTI
ON.
SEE
EXP
LA
NA
TIO
N
IN
MANUAL
,..,
IQ]
OOUBLlI
NS
U
LA
TIO
N OR
R
Ei
N
lO
R
CEO
I
NS
ULATIO
N
5.
Safe operating conditions
1)
Do
not
measure voltage in excess
of
lOOOV
peak.
2)
Observe the maximum input as stated in the specification.
3)
Disconnect the test lead from
the
test points before changing
the
me
ter function and range.
4)
Be
careful not
to
touch the terminals or probe tip
when
measuring
above 60VDC or
2SVAC.
5)
Never
attempt a
voltage
measurement with a test lead in
the''A''
or
rnA
input terminal.
6)
Do not measure more
than
lOA(which will display
"OL")
and
do
not
continue
measuring
high
current
above
IDA
for more than 3
minute.
To
avoid
opening
fuse
and
overheating circuits. The suc-
cessive measurement
shou
ld
be
done
after more than
10
minutes
for
cooling
down.
7)
Do
not attempt a current measurement
when
the voltage
is
above
600V
8) Remove the test l
eads
before
opening
the case to avoid electrical
shock.
9) Disconnect the live test lead before disconnecting the
common
test lead.
10)
Install only the fuses with the spedfied AMPNOLT ratings.
