13
Fluid Temperature Range & Remote Mounting Electronics
If fluid temperatures will be outside the range of 0 - 85°C, the electronics package must be mounted
remotely from the sensor.
Remote mounting requires customized changes to the sensors.
Please contact Proteus Applications Support for additional information.
Electrical Connections
Note
Only personnel familiar with the electrical circuit and control functions of the system in which
the sensor is to be included should perform installation of this product.

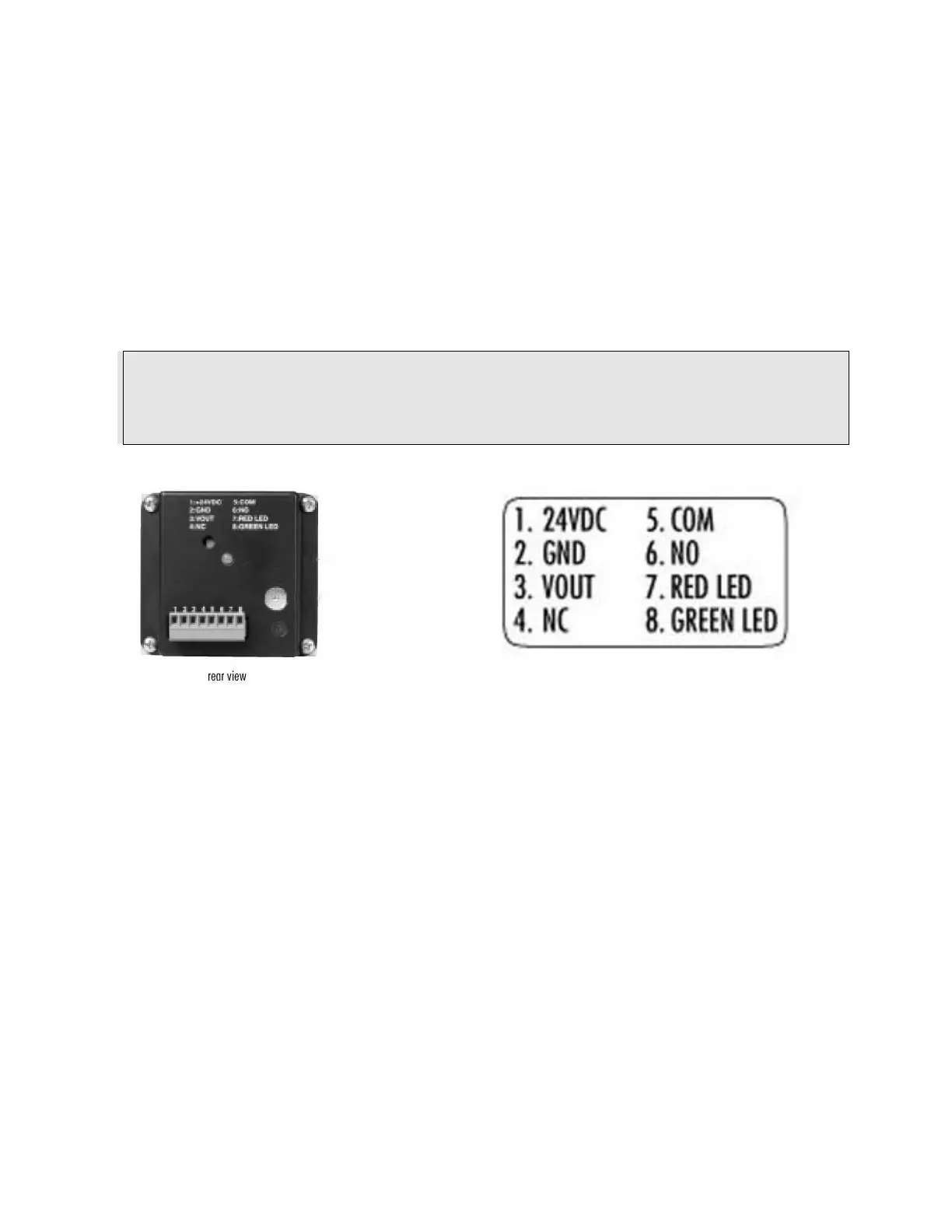

Electrical inputs and outputs are provided at a single eight-pin socket. An 8-pin connector providing
screw fastening of up to #16 gauge conductors is provided with the 800 Series metering flow switch.
Replacement 8-pin connectors can be obtained from Proteus, P/N 440157 or from electrical distributors,
On-Shore Technology P/N EDZ1550/8, or Digi-Key P/N ED1966-ND.
See Section 9 for installation of Digital Display units.
