Proton D1200 - Assembly Diagram

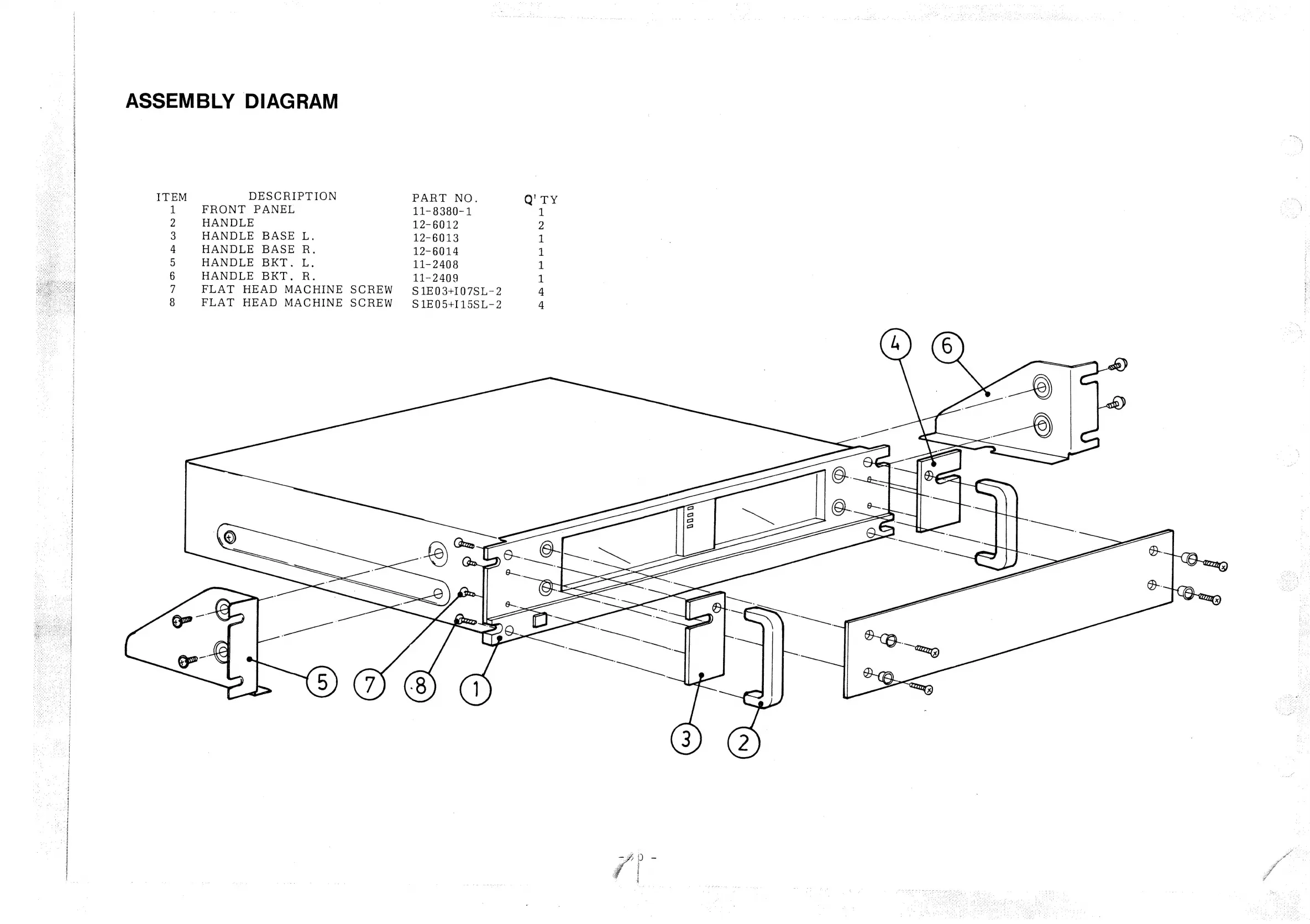

ASSEMBLY DIAGRAM
ITEM
DESCRIPTION
PART
NO.
Q'TY
1
FRONT
PANEL
11-8380-1
1
2
HANDLE
12-6012
2
3
HANDLE
BASE
L.
12-6013
1
4
HANDLE
BASE
R.
12-6014
1
5
HANDLE
BKT.
L.
11-2408
1
6
HANDLE
BRT.
R.
11-2409
1
7
FLAT
HEAD
MACHINE
SCREW
—
S1E03+I07SL-2
4
8
FLAT
HEAD
MACHINE
SCREW
—
S1E05+I115SL-2
4
