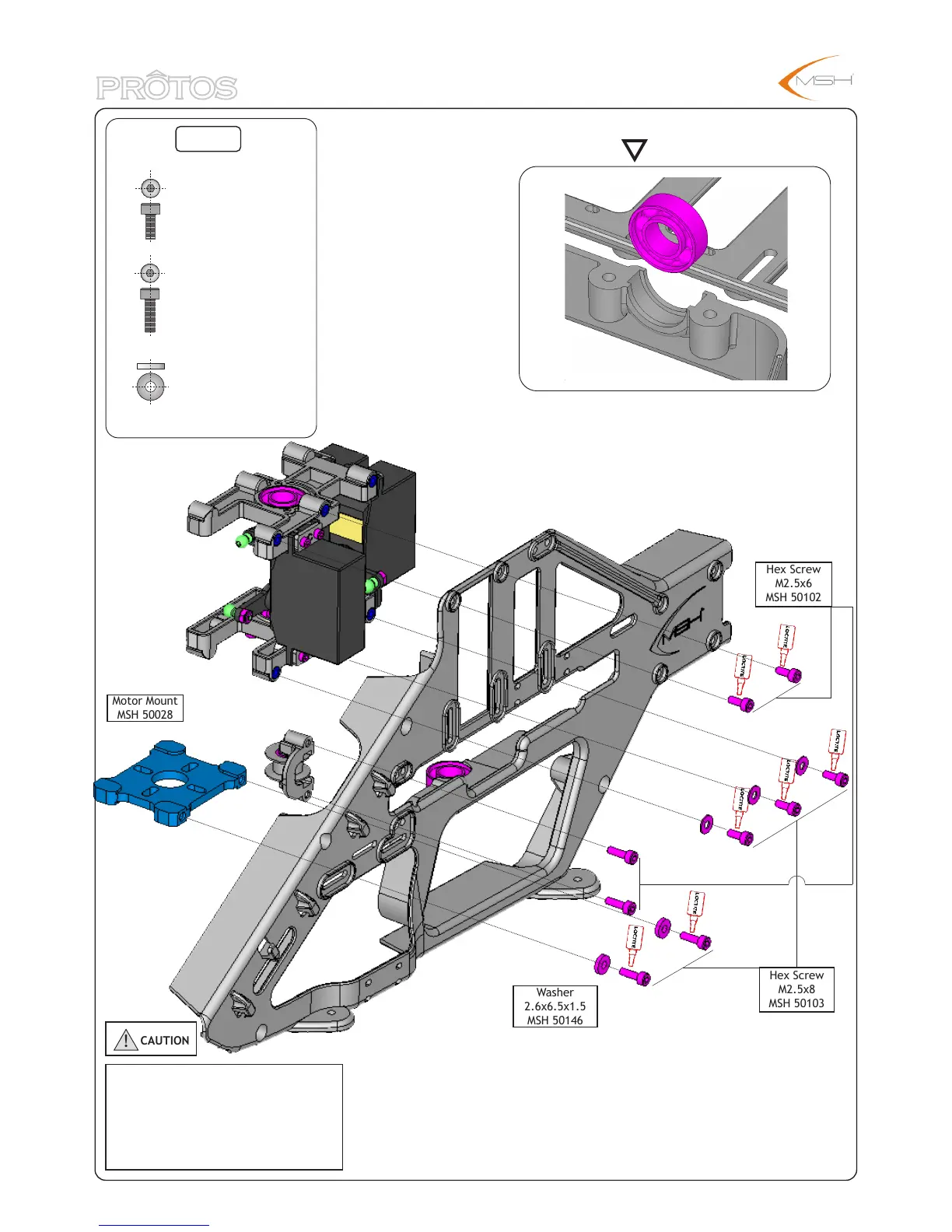

Protos Plastic 500 - Bag-B: Motor Mount and Frame Assembly

Hex Screw
M2.5x8
MSH 50103
Motor Mount
MSH 50028
Hex Screw
M2.5x6
MSH 50102
Caution
Washer
2.6x6.5x1.5
MSH 50146
BAG-B
Hex Screw
M2.5x6
MSH 50102
Hex Screw
M2.5x8
MSH 50103
!
CAUTION
Use Thread lock on every screw
metal/metal such as screws
that keep the servo frame in place.
Washer
2.6x6.5x1.5
MSH 50146
