Speaker Connections
Sprout’s power amplier provides enough wattage to power just
about any loudspeaker pair. However, we recommend only one pair of
loudspeakers be connected at a time.
Loudspeaker Connections. It is important to make sure you match
colors and channels from Sprout to your loudspeakers correctly. Red
should go to red, black to black. Failure to do so will produce some
funky sounds, lack of bass and won’t give you what Sprout’s capable of.

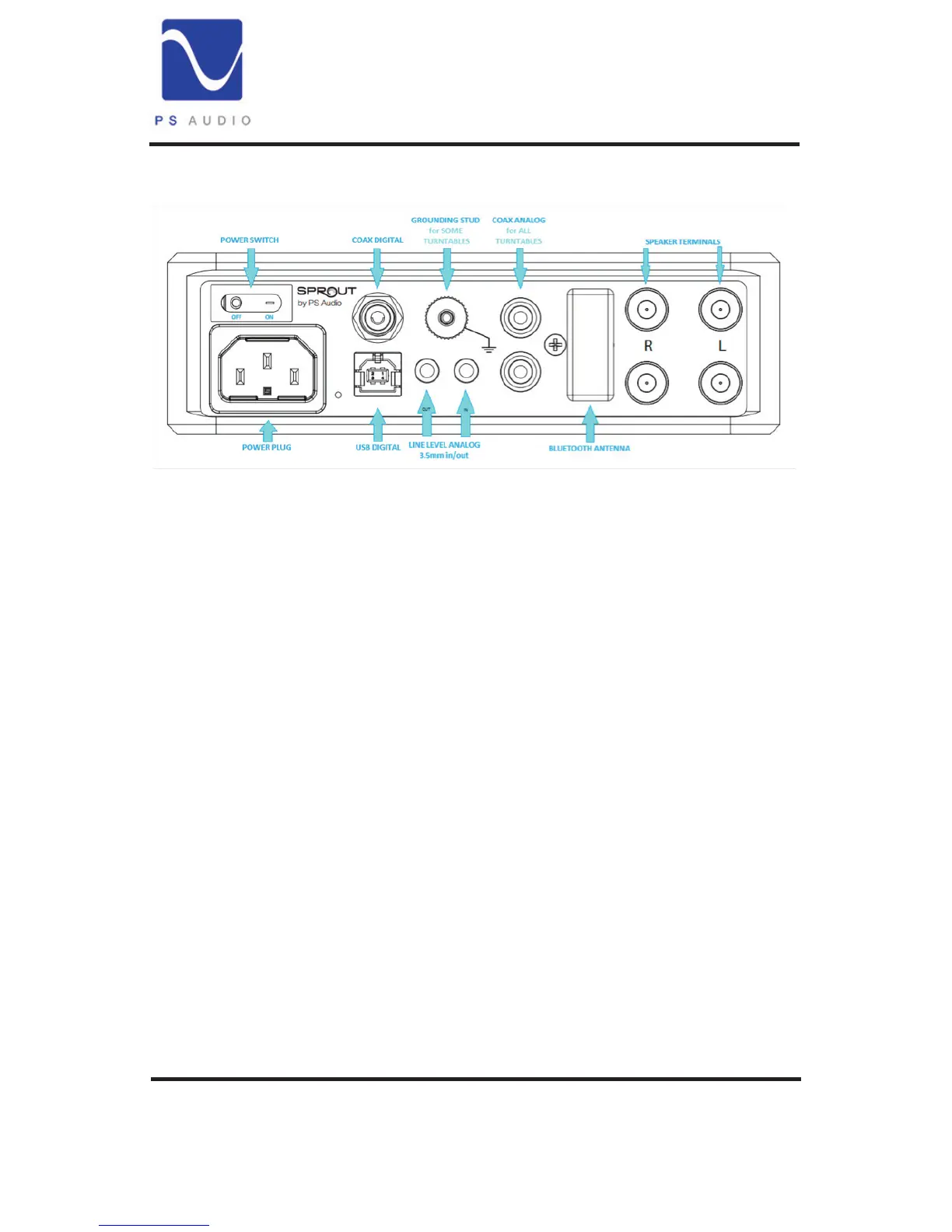

Facing Sprout’s rear panel, the right loudspeaker pair is on the left, the
left loudspeaker pair is on the right. This might seem backwards but
viewed from the front panel, it is correct.
Connect red (+) of the right speaker to Sprout’s red (+) right speaker
output. Connect the black (-) of the right speaker to Sprout’s (-) right
speaker output directly below it. Follow the same convention for the left.
Make sure none of the wires touch each other or Sprout will not play.
