8.3 Adjustment of the position indicator
PSQ103-1503
The position indicator is a two-coloured half ball
turning under a transparent dome with
blackened quarter segments.
Take off the cover and turn the half ball as
appropriate to adjust the position indicator.
PSQ2003/2803
The position indicator is installed on the
gearbox.
Unscrew both hexagon sockets to adjust the
position indicator. Finally, tighten the screws.
9. Setting the position switches
The standard position switches serve to switch off the motor when the desired limits are reached.
Additional position switches are potential-free opening/closing contacts and serve to indicate the valve position.
They are available as accessories. The switches are activated by cams. These cams are stepless adjustable on their
shaft by means of a friction coupling.
NOTE:
Use the bridge in figure 11, item 3 as support for the screw driver when adjusting the cams.
3
2
1

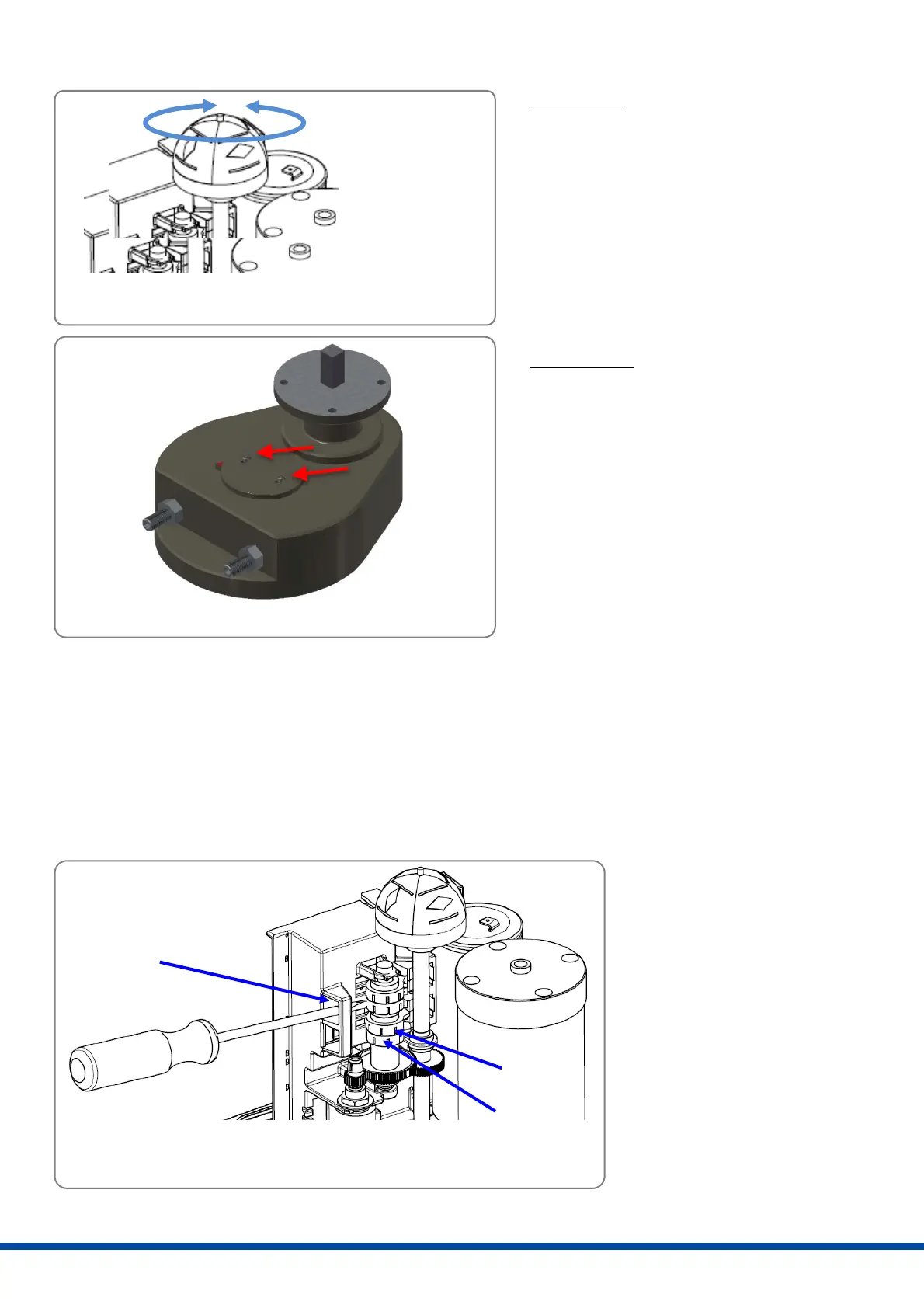

Figure 9: Adjustment of the position indicator PSQ103-1503
Figure 10: Adjustment of the position indicator PSQ2003/2803
Figure 11: Setting the switching cams for position switches PSQ103-1503
Item 1:
Switching cam CLOSE position
Item 2:
Switching cam OPEN position
Item 3:
Bridge for screw driver support
