PS Engineering PMA8000 User Manual

PS Engineering
PMA8000 Audio Selector Panel and Intercom System
Installation and Operator’s Manual
200-890-0000 Appendix B Revision 9, June 2005

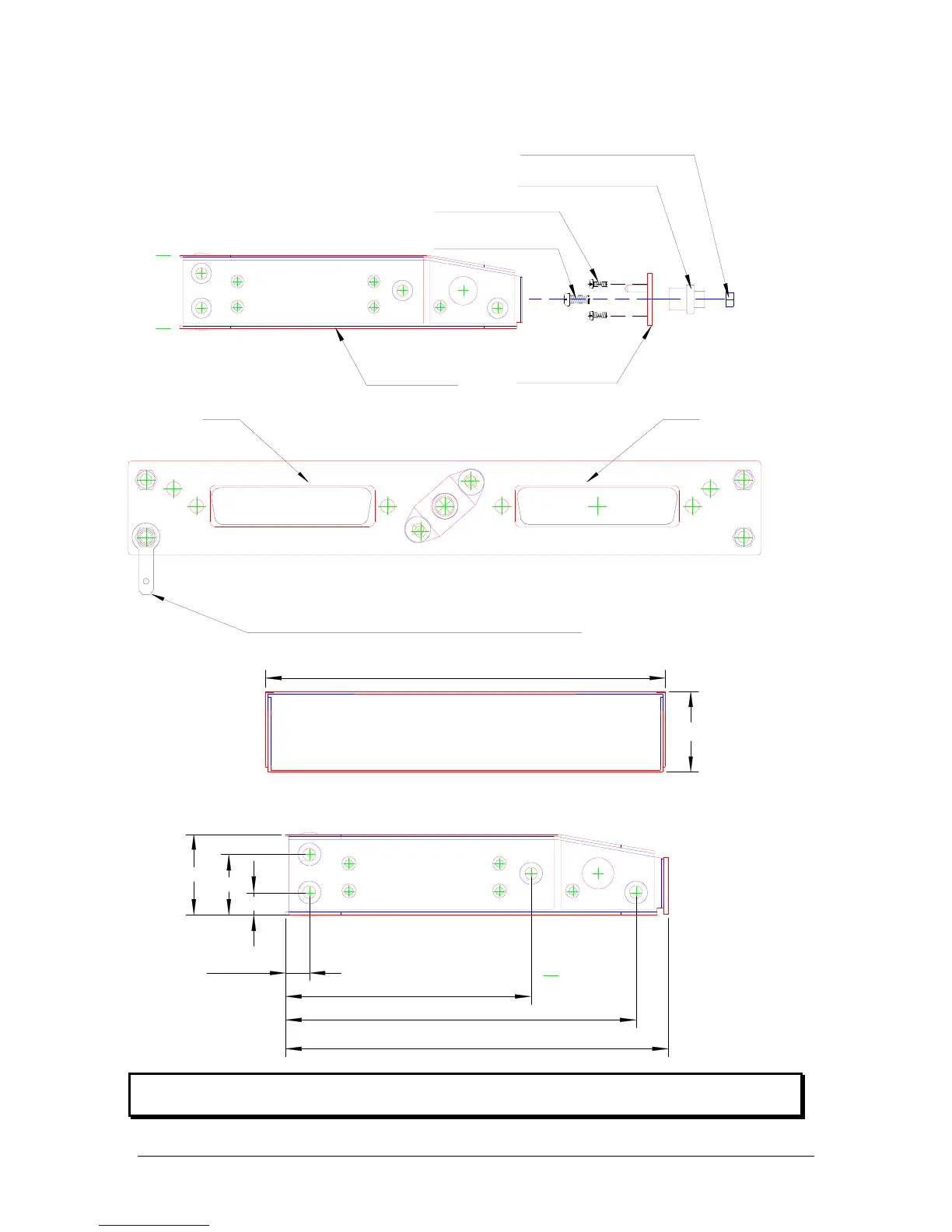

Appendix B – PMA 8000 Installation Drawings
475-013-0001 Lock nut (4 ea)
44-pin connector (2 ea)
Rack back plate
430-890-0050
475-440-0004 (4 ea)
475-440-0007 (4 ea)
Rack
430-890-0040
J2 J1
Viewed from Back
15
30
44
1
16
31
15
30
44
1
16
31
Solder Lug (mount as convenient)
Rear plate detail (not to scale)
0.37in
3.87in
5.53in
6.04in
0.36in
0.96in
1.28 in
6.31in
1.28in
Caution: Apply steady pressure to the bezel while screwing the unit into the tray to
ensure even seating of the unit and connectors.

PS Engineering PMA8000 Specifications

General

Brand	PS Engineering
Model	PMA8000
Category	Switch
Language	English
