Page 4 / Version 1,0
PS GmbH
Melisau 1255
6863 Egg / Austria
FN 326841 z / ATU64996348

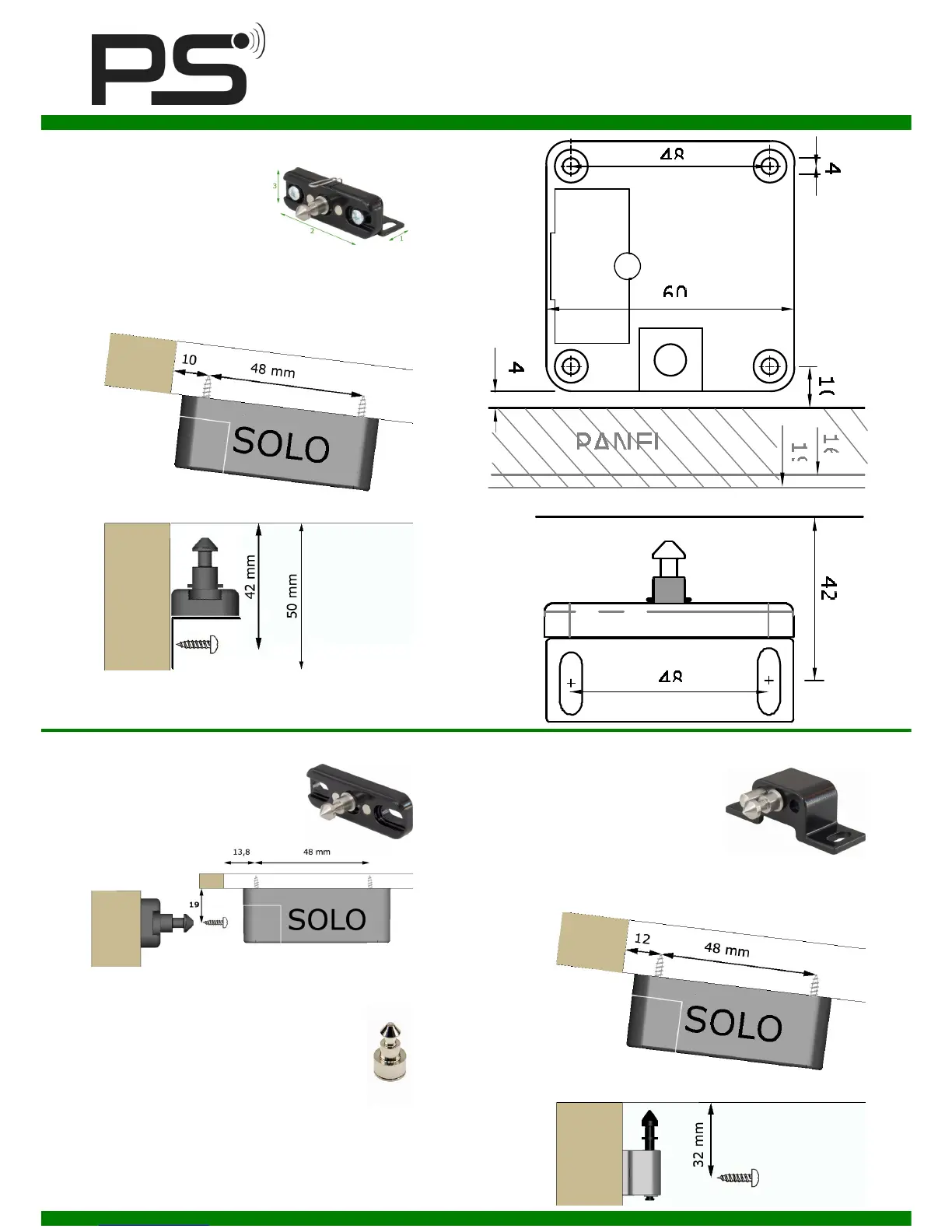

Installation with the
latch 3071
Equipped with a mounting
bracket and a spring, this
latch gives a maximum
comfort during assembly
based on the 3D adjust-
able fixing.
The mounting tolerances are within 6 mm, and
the spring is used as a pusher for a door.
Installation with the latch 3069
This locking device is
made of ZAMAK, a robust
zinc aluminium alloy and
the predetermined break-
ing point is 35 kg. The
integrated pusher will
automatically open light drawers and cabinet
doors. The flexible pin allows a tolerance of
+/- 1 mm.
3068z - Sliding doors
This black metal locking device
has a predetermined breaking
point of 35 kg. The flexible pin
allows a tolerance of +/-3 mm.
3070 - mini locking device for electronic
locks
Features:
•
Small measurements and nice
design
•
Easy to install
•
Screw provided
•
No predetermined breaking point
•
Tolerance +/- 1.0 mm.
•
12.5 mm diameter
