PSB CBR III - Installing Handle Lever and Control Tube

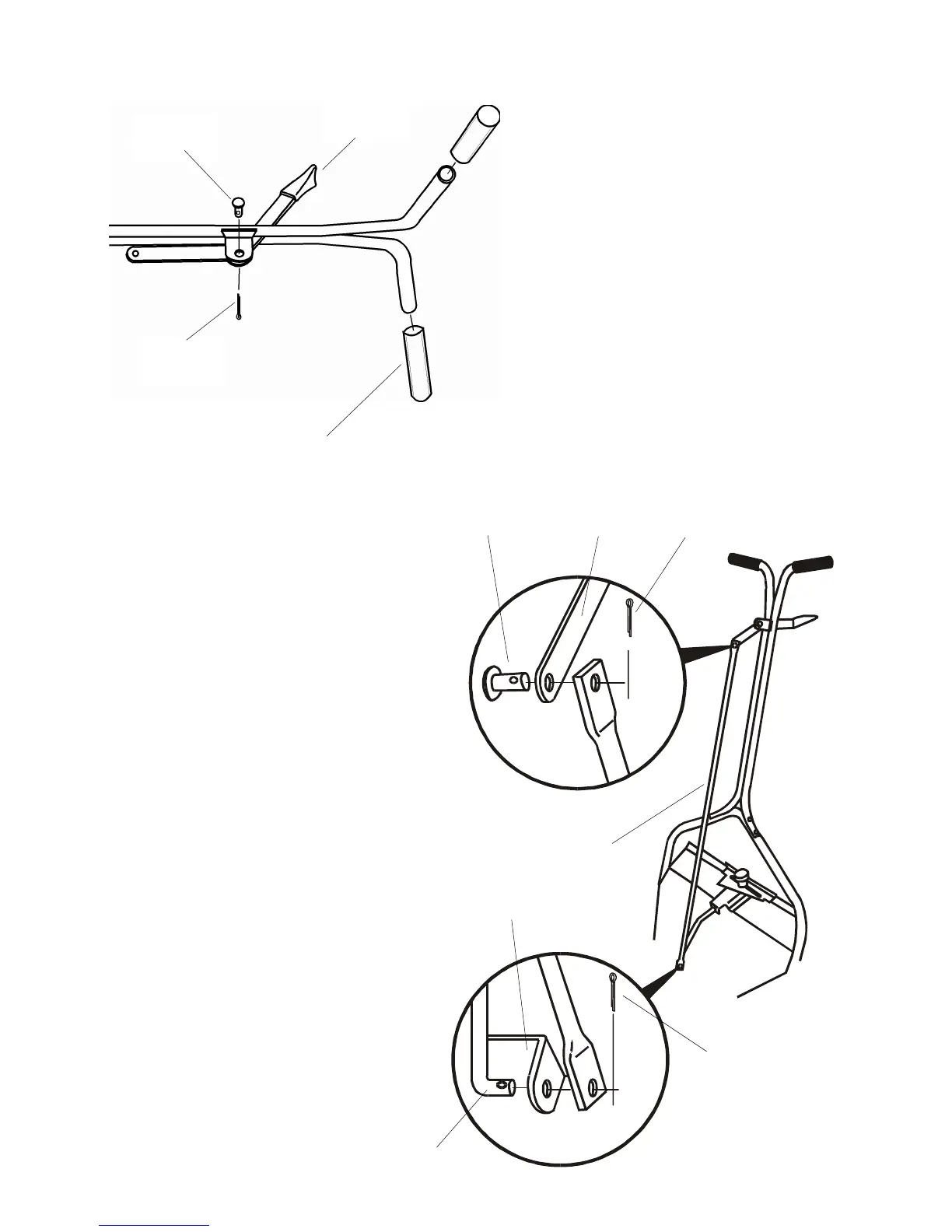

4. Slide handle lever between
handle brackets as shown and
secure with (1) 1/4 dia. clevis
pin and 3/32” dia. cotter pin.
Make sure lever pivots freely.
Install handle grips onto
upper handle.
5. Install control tube to
handle lever with (1) 1/4 dia.
clevis pin and a 3/32” dia.
cotter pin. Slip opposite end of
control tube over lower control
rod making sure shutoff plate
is between the lower rod and
the control tube. Secure with a
3/32” dia. cotter pin.
1/4 Dia.
Clevis Pin
Control Tube
3/32” Dia.
Cotter Pin
Handle
Lever
Handle
Grip
1/4 Dia.
Clevis Pin
3/32” Dia.
Cotter Pin
Lower Rod
Shutoff Plate
Handle
Lever
3/32” Dia.
Cotter Pin
