4

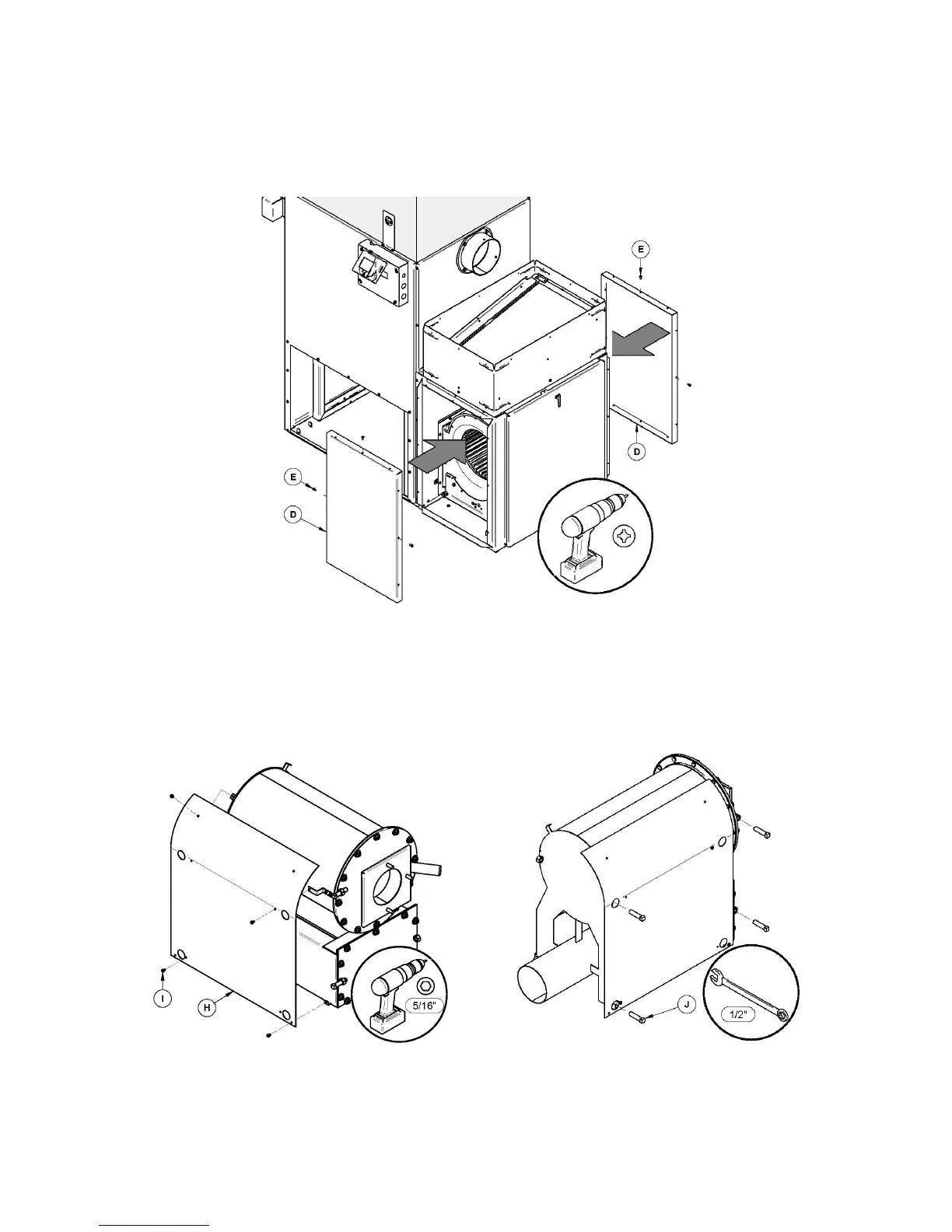

Step 4. Replace the right and left blower box panels (D) with screws (E) (18X). (Note: If the
blower box wasn’t already installed on the furnace, the missing screws (12X) can be
found in the blower box user’s manual kit).
Note: To install the oil unit on the left side of the furnace, replace Step 5 by the Section
“additional steps for left side installation”. Continue the installation from Step 6.
Step 5. Install the deflector (H) on the oil unit with the screws (I) (4X) provided with it. Then
install the bolts (J) (4X) in the nuts located on the oil unit combustion chamber.
