7

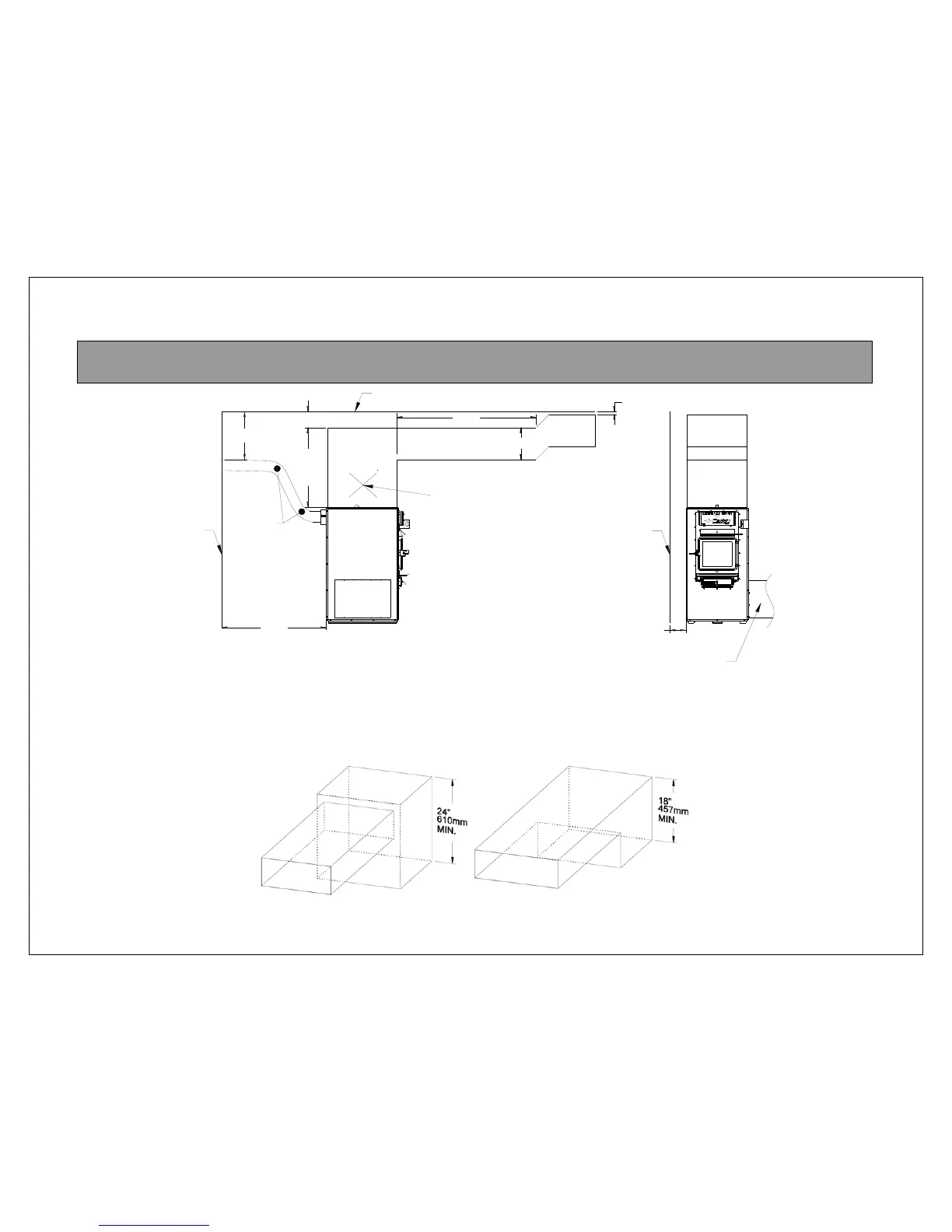

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS FOR CADDY ADD-ON
N.B. This appliance must be installed in accordance with the instructions on the certification
plate applied on the unit.
SEE
FIGURE
BELOW
STATIC PRESSURE
CHECK POINT
MIN. 0.020" W.C.
24"
REAR
WALL
45°
ELBOW
AIR INLET CAN BE ON
LEFT OR RIGHT SIDE
6"
SIDE
WALL
18"
CEILING
HOT AIR
PLENUM
6"
72"
1"
12" MIN.
The furnace may be installed on a combustible floor.
N.B. THE AIR RETURN CONDUITS SHOULD BE AT LEAST EQUAL TO THE COLD AIR PLENUM
DIMENSIONS.
Hot air plenum minimal height.
