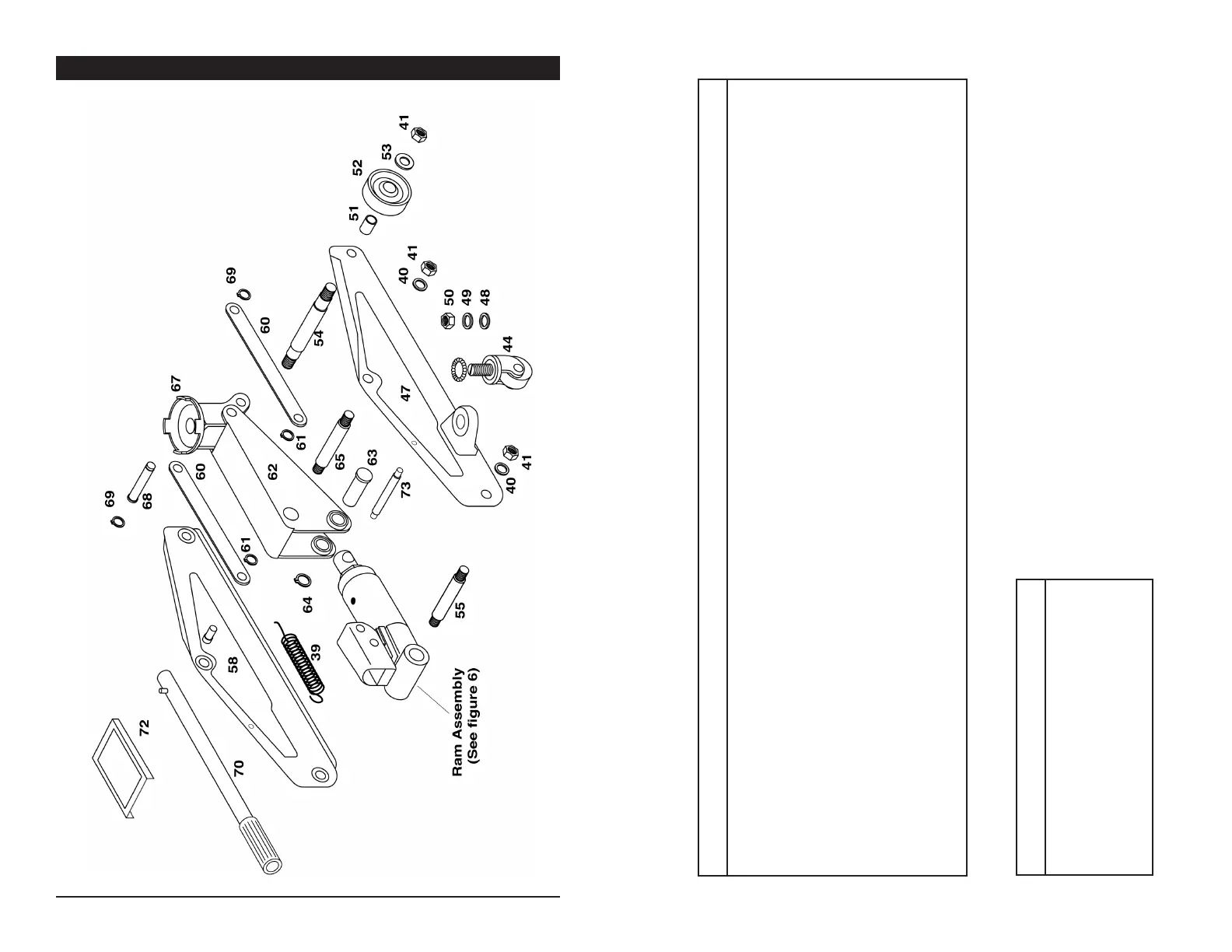

JACK ASSEMBLY
Figure 4
# Description Qty. # Description Qty. # Description Qty.
39 Return Spring *1 54 Front Wheel Spindle 1 69 Snap Ring 2
40 Lock Washer 4 55 Body Spindle 1 70 Pump Handle 1
41 Nut 6 58 Left Side Member 1 72 Cover Plate 1
44 Caster Wheel Assy. *2 60 Radius Link 2 73 Support Bar 1
47 Right Side Member 1 61 Retaining Ring 2
48 Flat Washer 2 62 Lifting Arm 1
49 Lock Washer 2 63 Cross Head Pin 1
50 Nut 2 64 C 19 Retaining Ring 1
51 Front Wheel Spacer 2 65 Lifting Arm Spindle 1
52 Front Wheel 2 67 Saddle Assembly 1
53 Flat Washer 2 68 Radius Link Pin 1
Replacement Parts
W1605CK Ram Repair Kit
W1605-39 Return Spring
W1605-44 Caster Assembly
W1605-70 Pump Handle
* Notes the replacement parts
