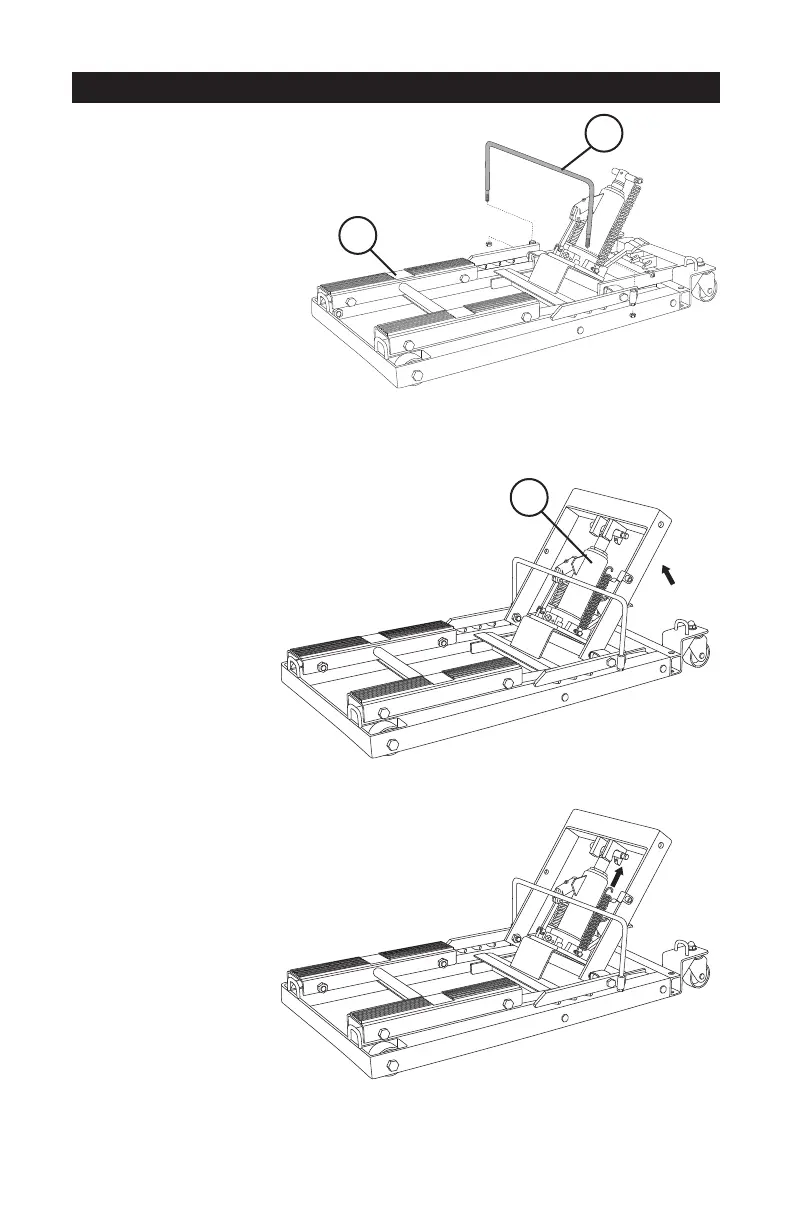

2. Remove nuts from Safety Bar (4) and insert safety bar
into to the safety latch on the Frame Base (1).
Secure with nuts and tighten with 13 mm wrench.
3. Remove spring, lock and cotter pin from top of Hydraulic Ram (3).
Lift up the Ram Support (2) and connect to the Hydraulic
Ram (3) using lock and cotter pin. Make sure the
hydraulic ram is in the lowest position by
pushing on the release lever while pushing
down on the hydraulic ram lifting arm.
Fasten with lock and cotter pin.
4. Reattach the return spring to the lock pin
and the base of the Hydraulic Ram (3).
ASSEMBLY INSTRUCTIONS CONT.
1
4
2
To Next Page
