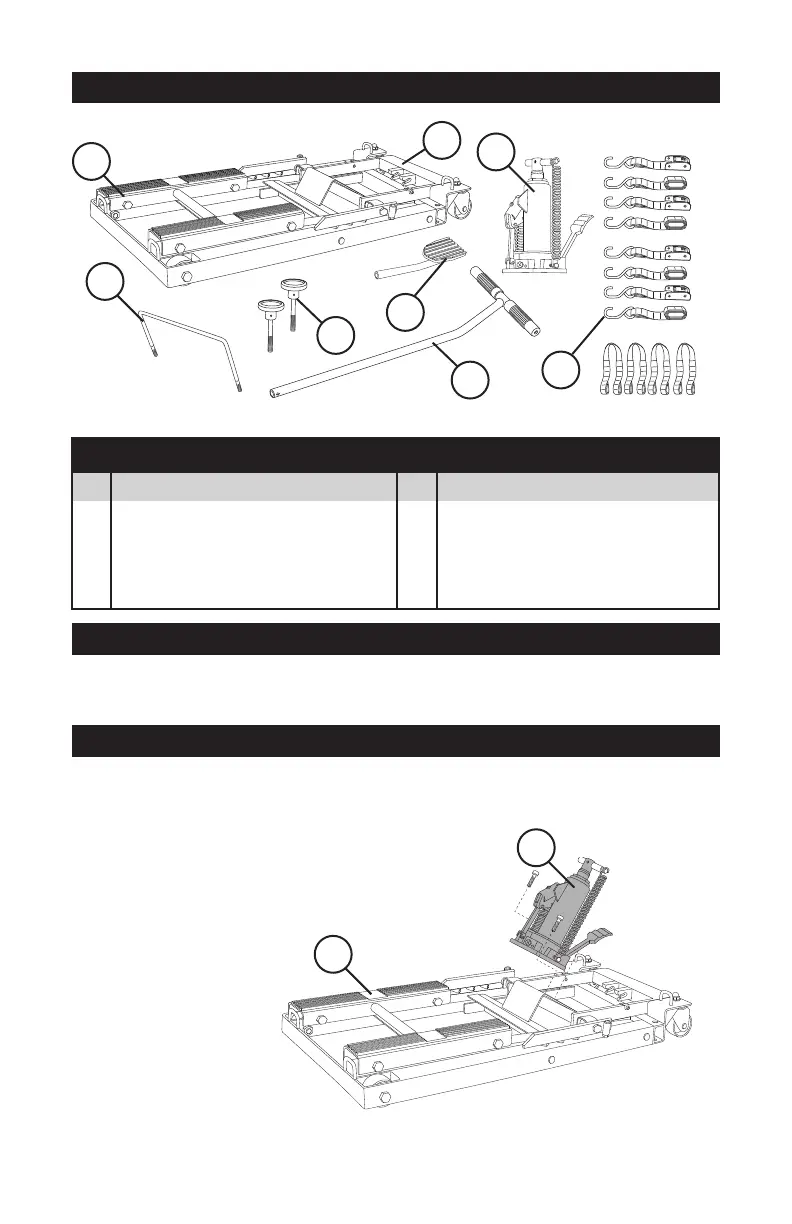

1. Remove hex screws from Frame Base (1) and use them
to attach Hydraulic Ram (3). Ensure that the release lever
on the ram is positioned facing away from the loading surface.
Tighten hex screws with a 6 mm hex key.
1. Wrench: 13 mm
2. Hex key: 6 mm
3. Phillips screwdriver
TOOLS REQUIRED
ASSEMBLY INSTRUCTIONS
PACKAGE CONTENTS
PARTS LIST
No. Description Qty.
1 Base .................................... 1
2 Ram Support....................... 1
3 Hydraulic Ram .................... 1
4 Safety Bar ........................... 1
No. Description .................... Qty.
5 Leveling Bolts .................... 2
6 Pump Pedal ....................... 1
7 Handle ................................ 1
8 Universal Tie Downs .......... 4
4
1
3
6
5
7
8
1
3
2
