VFD Driver/Controller IC PT6315
PT6315 v2.0 Page 3 Sep. 2002
PIN CONFIGURATION 44PIN LQFP

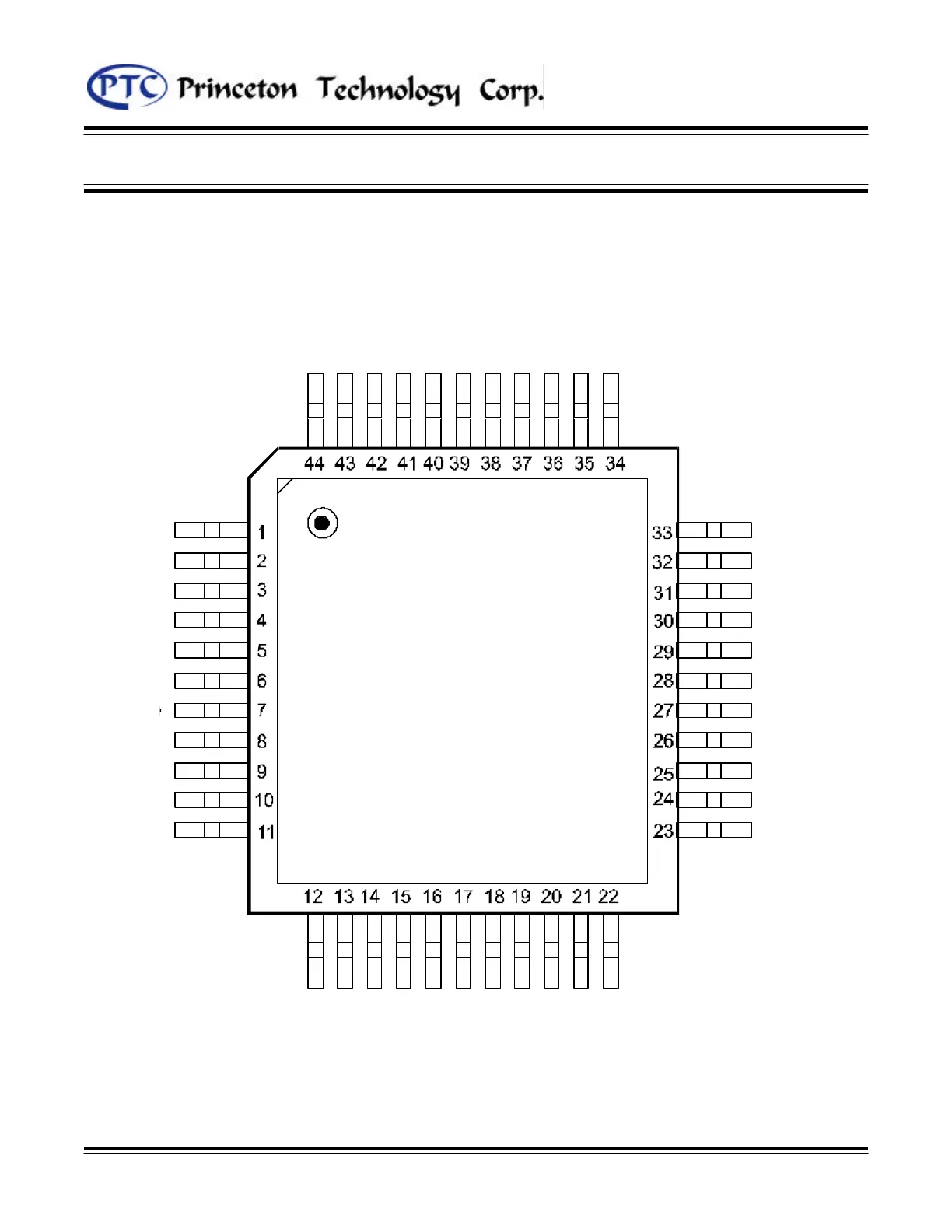

Figure 2: PT6315 LQFP Pin Configuration
SG24/GR5 SG23/GR6 SG22/GR7 SG21/GR8 SG20/GR9
LED1
LED2
LED3
LED4
OSC
DOUT
DIN
CLK
STB
K1
K2
SG19/GR10
SG18/GR11
SG17/GR12
VEE
SG16/KS16
SG15/KS15
SG14/KS14
SG13/KS13
SG12/KS12
SG11/KS11
SG10/KS10
VSS
VDD
SG1/KS1 SG2/KS2 SG3/KS3 SG4/KS4 SG5/KS5 SG6/KS6 SG7/KS7 SG8/KS8 SG9/KS9
VSS
VDD
GR1 GR2 GR3 GR4
