VFD Driver/Controller IC PT6315
PT6315 v2.0 Page 8 Sep. 2002
COMMAND 2: DATA SETTING COMMANDS
The Data Setting Commands executes the Data Write or Data Read Modes for PT6315. The data
Setting Command, the bits 5 and 6 (b4, b5) are ignored, bit 7 (b6) is given the value of “1” while
bit 8 (b7) is given the value of “0”. Please refer to the diagram below.
When power is turned ON, the bit 4 to bit 1 (b3 to b0) are given the value of “0”.

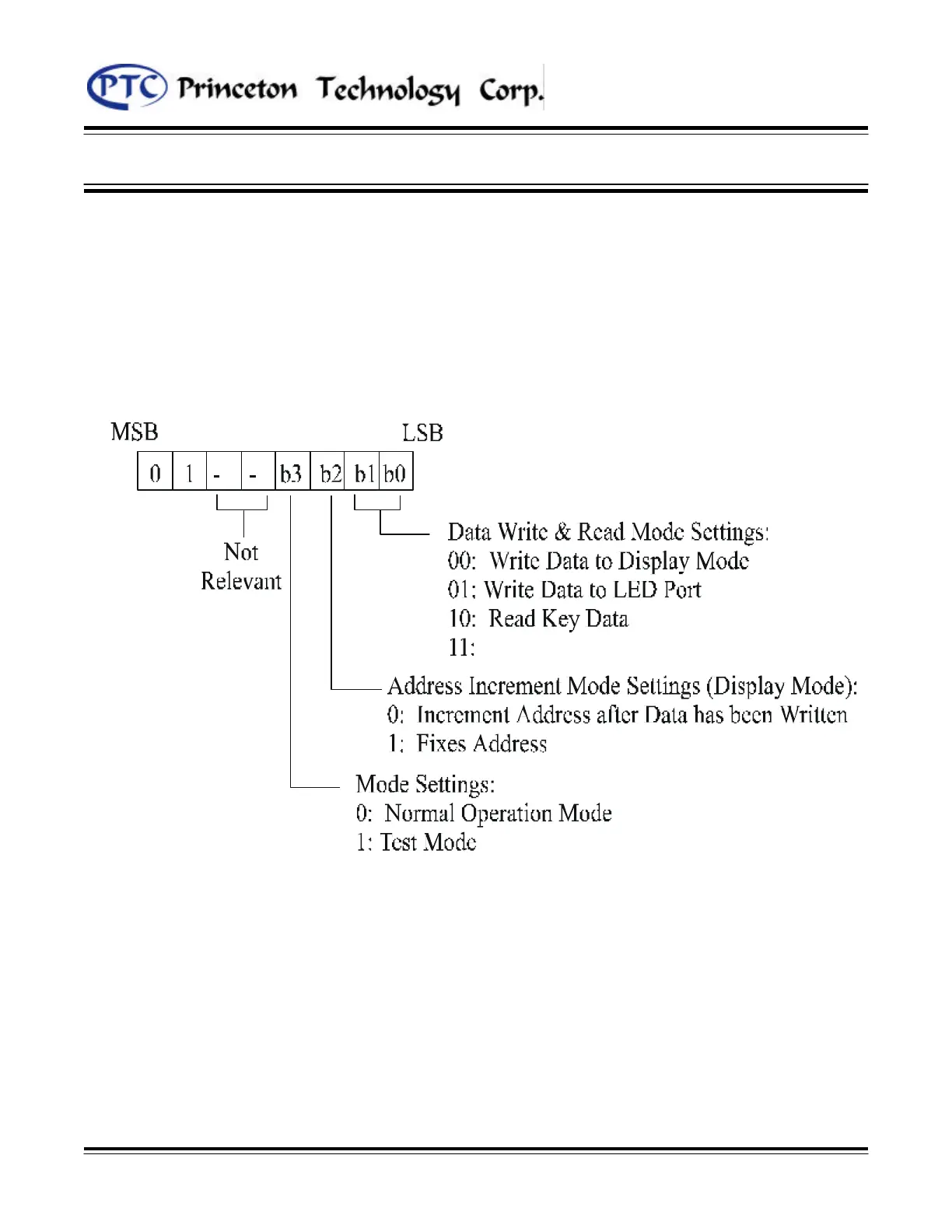

Figure 5: Data Settings
