INSTALLATION
BRACKET PLACEMENT LOCATION
Since most truck beds are not square to the frame or are the same distance from the back of the cab,
the installer will need explain this to the vehicle owner. The factory installed 5
th
wheel/gooseneck
prep kit can not be easily adjusted. The Pullrite adapter has been created with more than generous
tolerance to ease installation but may not be perfectly centered in vehicle.
The basic steps in this section are as follows:
• Place bronze washers in slots
• Install mounting posts and nuts
• Mount side supports onto posts and pin
• Pin mounting rail to side supports
• Install your Pullrite 5
th
wheel hitch

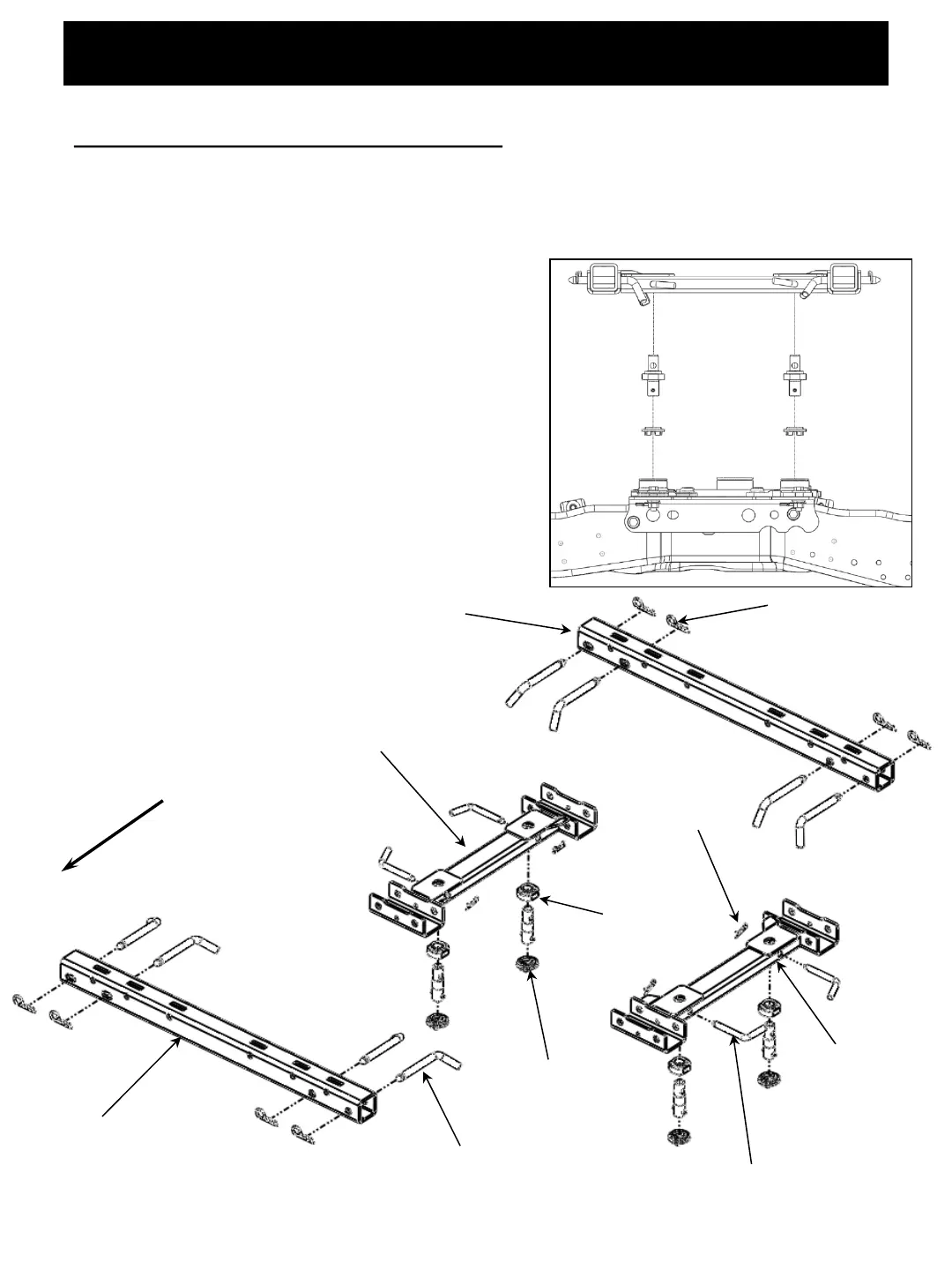

FRONT
Standard Shack
Pin (5/8”)
Passenger’s Side (RH) Bracket
Location
Driver’s Side (LH)
Bracket Location
Mounting Rail
Mounting Rail
Base Rail
Release Pin
(1/2”)
Mounting
Washer
Mounting Post
Assembly
(Post & Nut)
Hitch Pin Clip
Hitch Pin Clip
To Next Page
