PISA-B-812-B1
PISA-B-812-B4
Apr. 2021 / Rev. 0.1 DS-PISA-B-812-Bx-xx-EN www.pulspower.com 10 / 20
All parameters are specified at 24Vdc input voltage, 8x5A output currents, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.

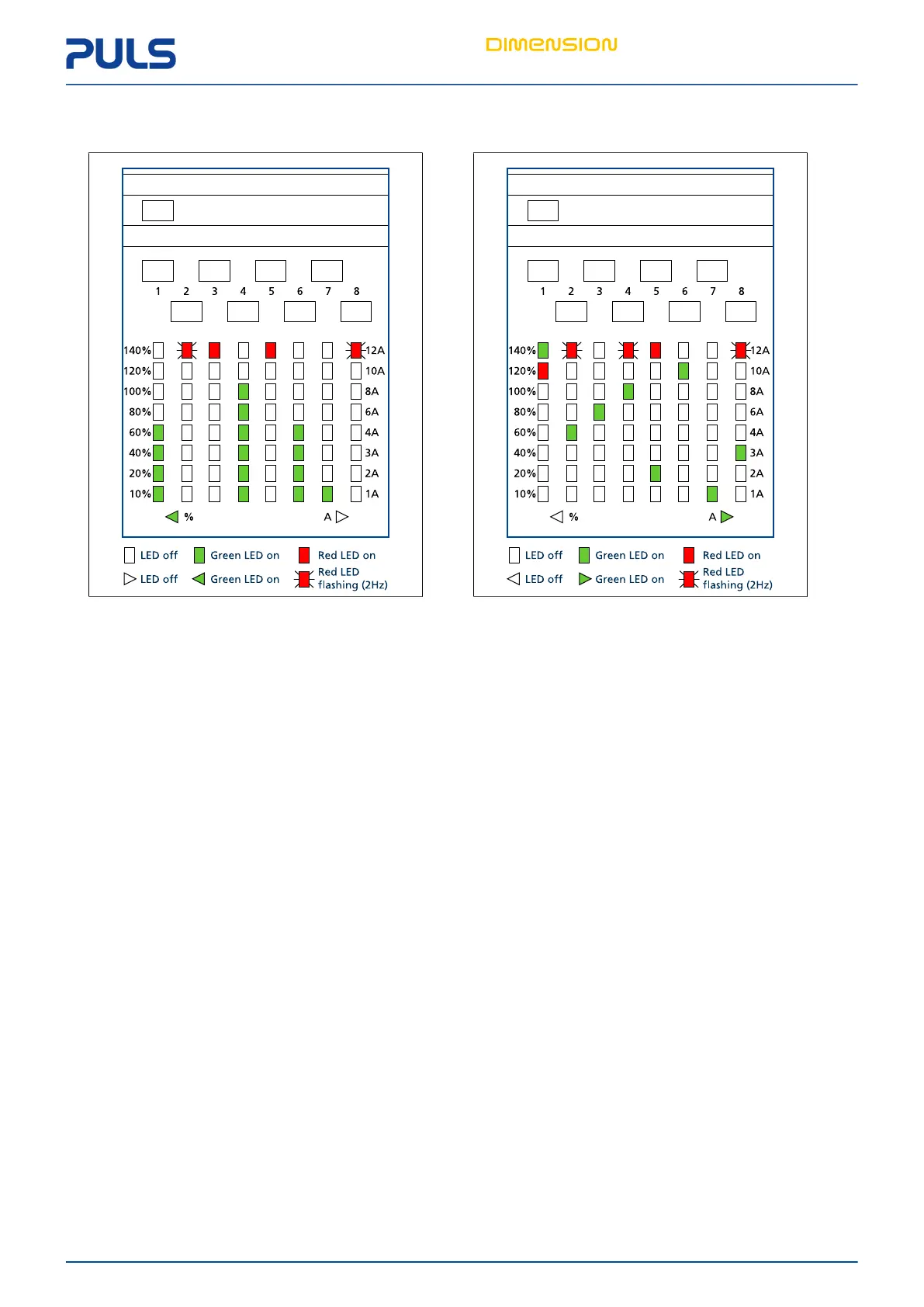

LED pattern example
Fig. 7-2: LED Light pattern in measurement mode Fig. 7-3: LED Light pattern in parameter mode
Description:
Channel 1 is loaded with 40-60% of the set current
Channel 2 has tripped due to over current
Channel 3 is turned off on purpose (with push-button)
Channel 4 is loaded with 80-100% of the set current
Channel 5 is turned off on purpose (with push-button)
Channel 6 is loaded with 40-60% of the set current current
Channel 7 is loaded with 0-10% of the set current current
Channel 8 has tripped due to over current
Description:
Channel 1 is set to 12A but turned off with push-button
Channel 2 is set to 4A but has tripped due to over current
Channel 3 is set to 6A and output is on
Channel 4 is set to 8A, but has tripped due to over current
Channel 5 is set to 2A but turned off with push-button
Channel 6 is set to 10A and output is on
Channel 7 is set to 1A and output is on
Channel 8 is set to 3A but has tripped due to over current
