PISA-B-812-B1
PISA-B-812-B4
Apr. 2021 / Rev. 0.1 DS-PISA-B-812-Bx-xx-EN www.pulspower.com 19 / 20
All parameters are specified at 24Vdc input voltage, 8x5A output currents, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
22. Physical Dimensions And Weight
Width 52mm / 2.05''
Height 124mm / 4.88''
Depth 130mm / 5.12''
The DIN rail height must be added to the unit depth to calculate the total required
installation depth.
Weight 370g / 0.82lb
DIN rail Use 35mm DIN rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.
Housing material Body: Aluminium alloy
Cover: High-grade polycarbonate material
Installation clearances See chapter 2.
Penetration protection Small parts like screws, nuts, etc. with a diameter larger than 3.6mm
All dimensions in mm unless otherwise noted.

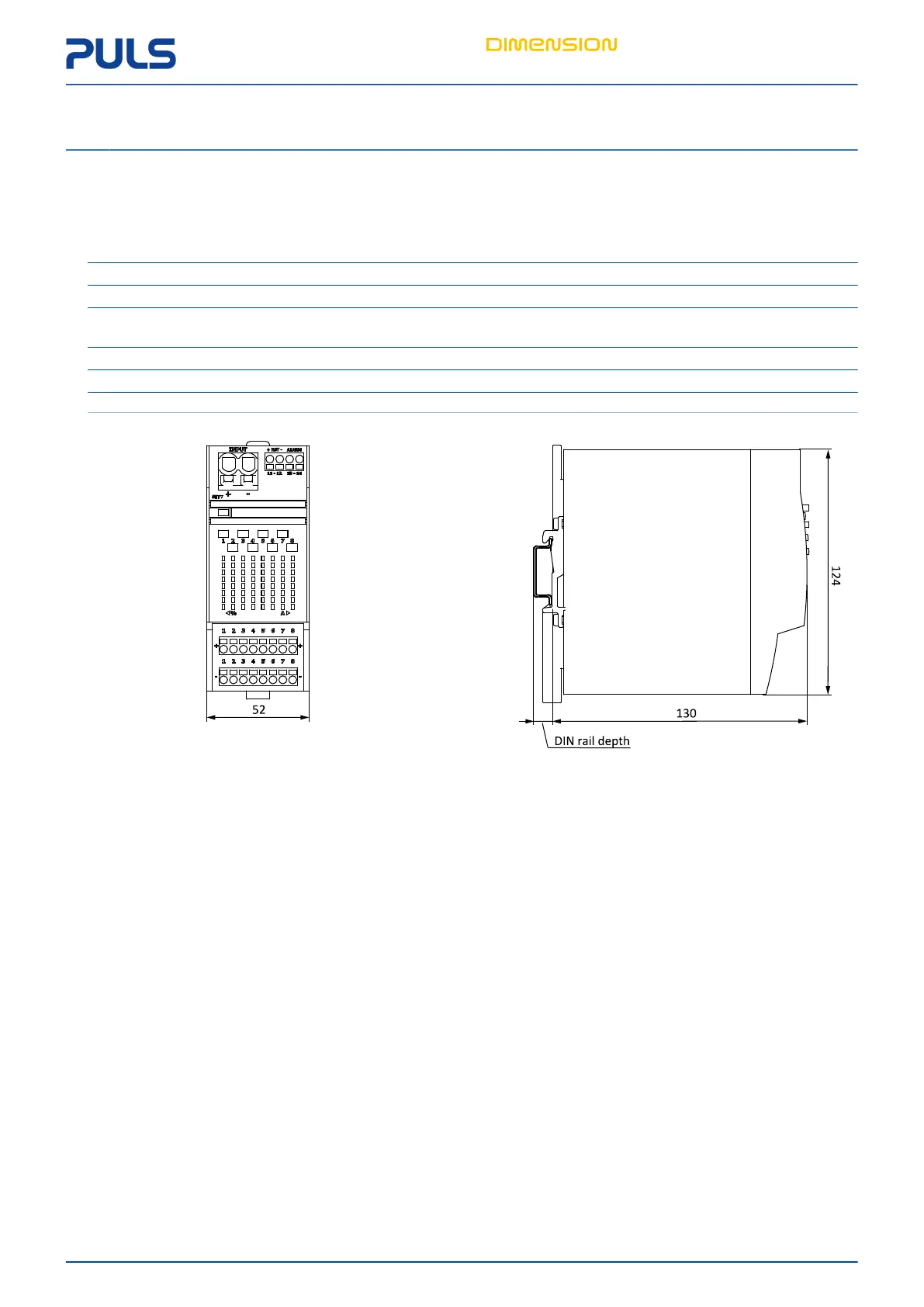

Fig. 22-1: Front view Fig. 22-2: Side view
