Removal & Fitment of Seat

Removal of Seat - Rear

• Remove ‘Side Cover’ LH.

• To remove Seat Rear, pull the ‘Seat

Release Cable’ (A) shown in fig. 1 to

release seat lock. Keeping cable pulled,

tap the center of seat, lift the seat from

rear end and slide it towards tail lamp to

remove seat.

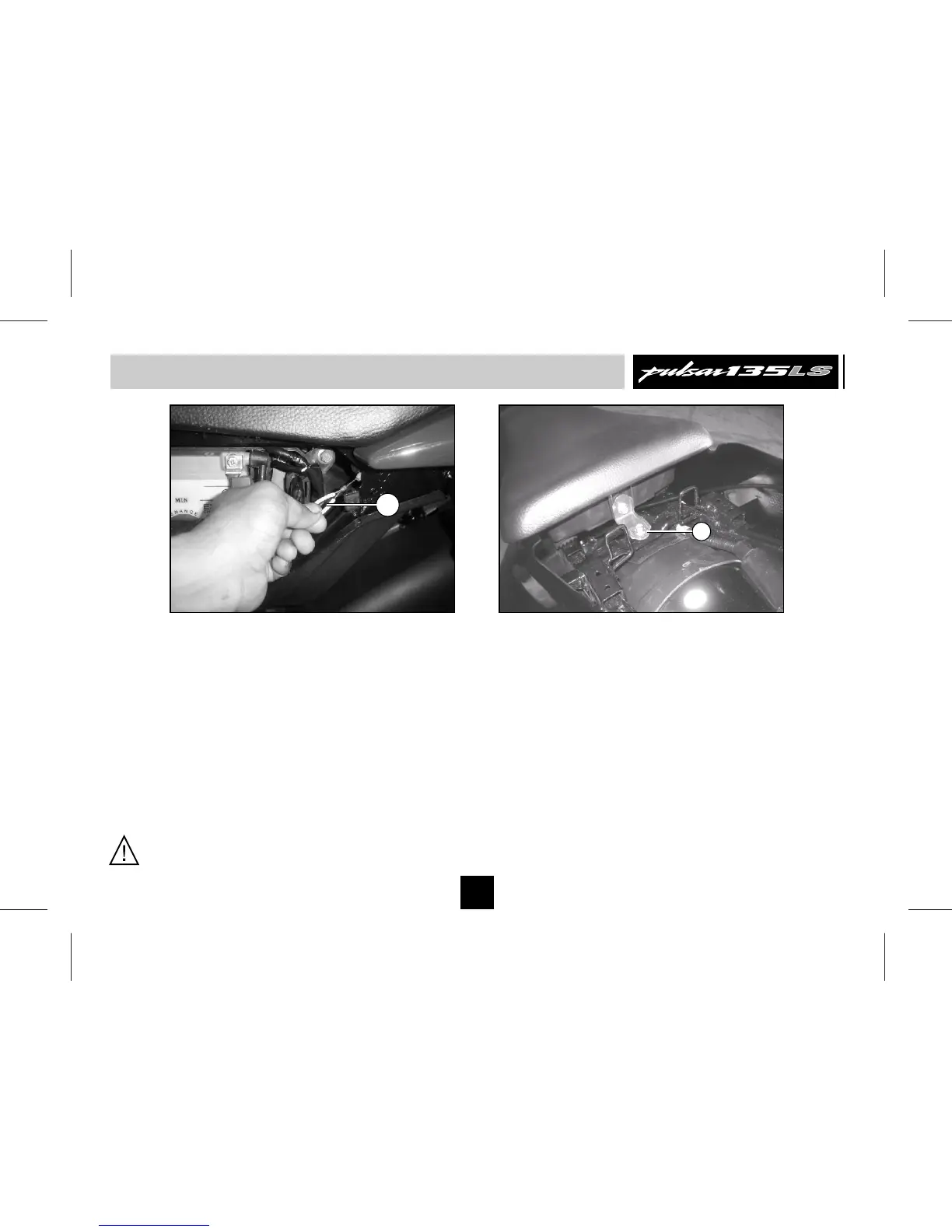

Fig. 1 Seat release cable

Fig. 2 Seat mounting bolt

Removal of Seat - Front

• Remove ‘Side Cover’ LH.

• Remove ‘Seat Rear’.

• To remove Seat Front, remove bolt (B)

shown in fig. 2

• Lift the seat from rear end and slide it

towards tail lamp to remove seat.

CAUTION : Always remove Rear seat

first.
